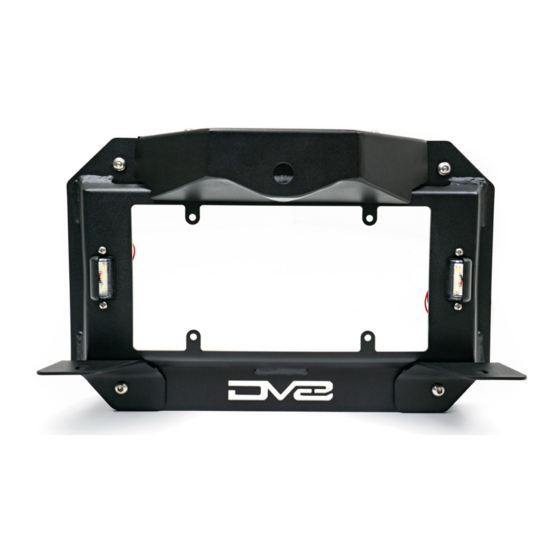

Spare Tire Delete with Optional
Dual Light Pod Mounts
2018+ JL
TSJL-03
TOOLS
REQUIRED
- #4, #5 Allen Head
- T8, T25, T30 Torx Bit
- 7, 10, 13, 22mm Sockets
- Plastic Trim Tool
- Small Phillips Head Screwdriver
- Medium Flat Head Screwdriver
- Snips or Grinder
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm
to you or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you)
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- Approximately 2 Hours
Time to install this should only
take about approximately 2
Hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not
damaged and all installation hardware has been included. If parts
are missing from kit, please be prepared to provide the following
information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Related Manuals for DV8 OFFROAD TSJL-03
Summary of Contents for DV8 OFFROAD TSJL-03

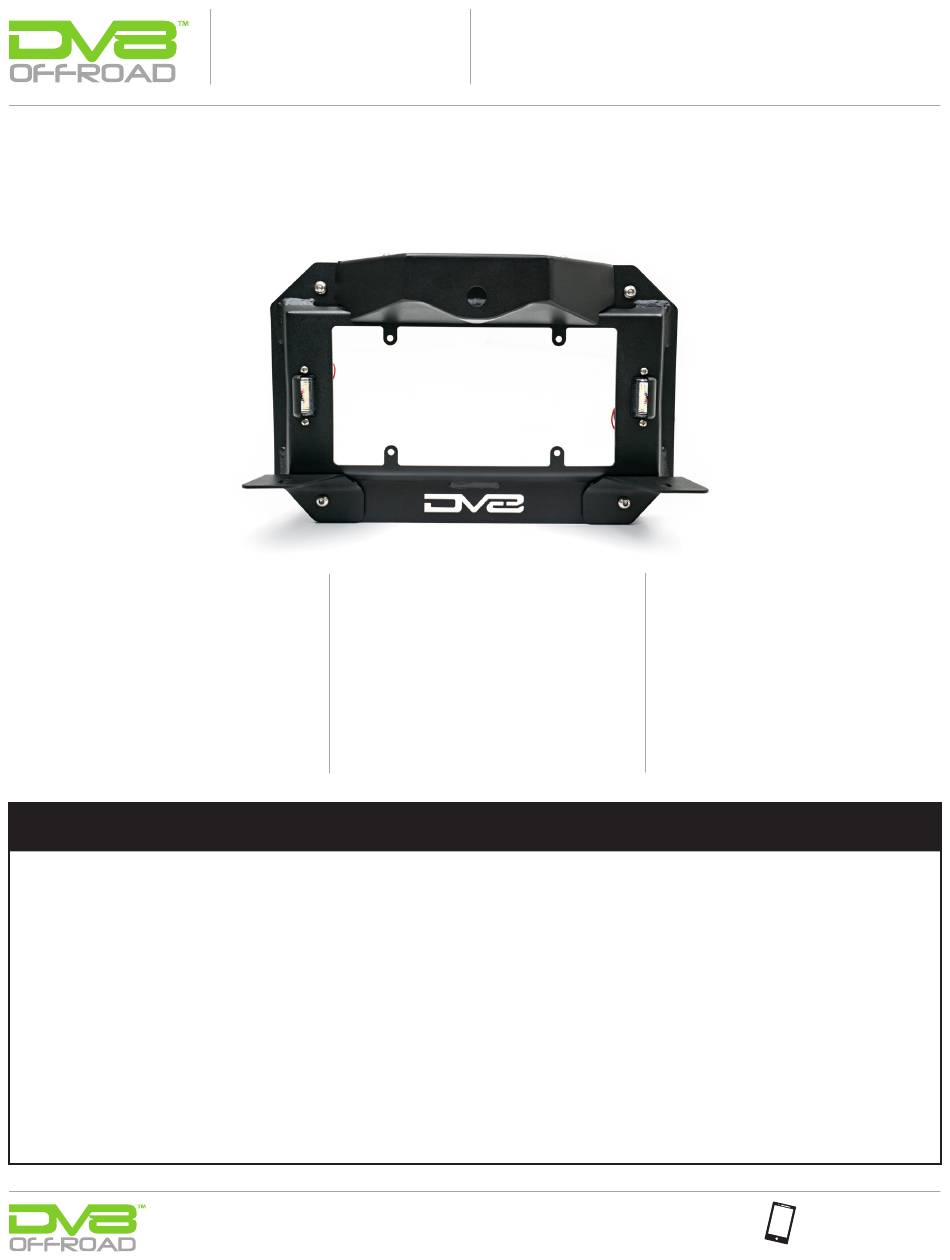

- Page 1 1. Name of purchase location 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm 3. Date above bar code to you or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (4) M8x20mm Bolts (4) M6 Flat Washers (4) M8 Flat Washers (4) M6 Split Washers (4) M8 Split Washers (1) M6 Serrated Nut...
- Page 3 INSTALLATION MANUAL STEP Open your rear door and using a plastic trim remover tool, pry off the back plate. Pull straight back to avoid breaking off any tabs. STEP Unclip the top two plugs to the camera and the third brake light. The white camera plug unclips by pressing the tab down and pulling away.
- Page 4 INSTALLATION MANUAL STEP Grab the rubber wire grommet and pull away from the door to remove the wires from the door while holding the carrier. STEP Once the carrier is removed, place the carrier face up on a soft surface and using a T25, remove the seven bolts under the third brake light.
- Page 5 INSTALLATION MANUAL STEP Remove the two bolts on the face of the carrier on either side of the camera tower using your T25. This will allow you to remove the camera and studs. STEP To remove the stud plate, tap on the studs evenly with a hammer or mallet to push them through the carrier.
- Page 6 INSTALLATION MANUAL STEP Remove the wire harness from the stud plate. Clip the zip tie to release the wire STEP Pull the camera mount from the carrier and using a T8 torx bit, remove the camera from the mount and unplug from the harness and set everything off to the side.
- Page 7 INSTALLATION MANUAL STEP You will need to use snips or a grinder to remove the lip from each vent so that they appear flat from the outside. STEP Replace the vents into the door by clipping them into place from the outside pushing towards the inside.
- Page 8 INSTALLATION MANUAL STEP Install your license plate from the back as shown in the image. NOTE: Hardware not included for license plate mounting. STEP Our delete offers two optional pod light tabs to give you some additional points to mount lights. Mount the lights to the tabs using the provided hardware that came with your lights.
- Page 9 INSTALLATION MANUAL STEP Using factory hardware, install the light onto the top mount of the delete and secure using a T25 torx bit. STEP To install the camera, place the camera into the hole with the center hole on the camera facing towards the boom of the delete mount.
- Page 10 INSTALLATION MANUAL STEP Set assembled top mount for the delete off to the side. STEP To install the delete onto the vehicle, first route the camera and third brake light plugs through the back of the delete and the top opening of the delete as shown in the image.
- Page 11 INSTALLATION MANUAL STEP If installing the pod mounts, place pod mounts over the delete, and using the provided remaining M8 hardware, install bottom bolts. Secure all four bolts onto door of Jeep. STEP Using the top mount assembled earlier, plug in the pink camera connector and the black third brake light plug.
- Page 12 INSTALLATION MANUAL STEP For the pod lights, you can either tie them into the reverse lights or a separate switch. For the license plate light, you can tie them into the passenger taillight (from the license plate light, “+” will run to White/ Orange wire, and “-”...
- Page 13 INSTALLATION MANUAL STEP You are now done with the install of your new DV8 Spare Tire Delete with Optional Dual Light Pod Mounts. 855-680-9595 NEED HELP?
