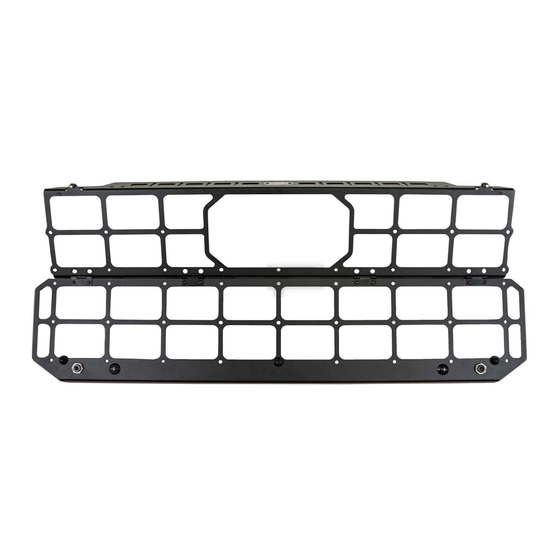

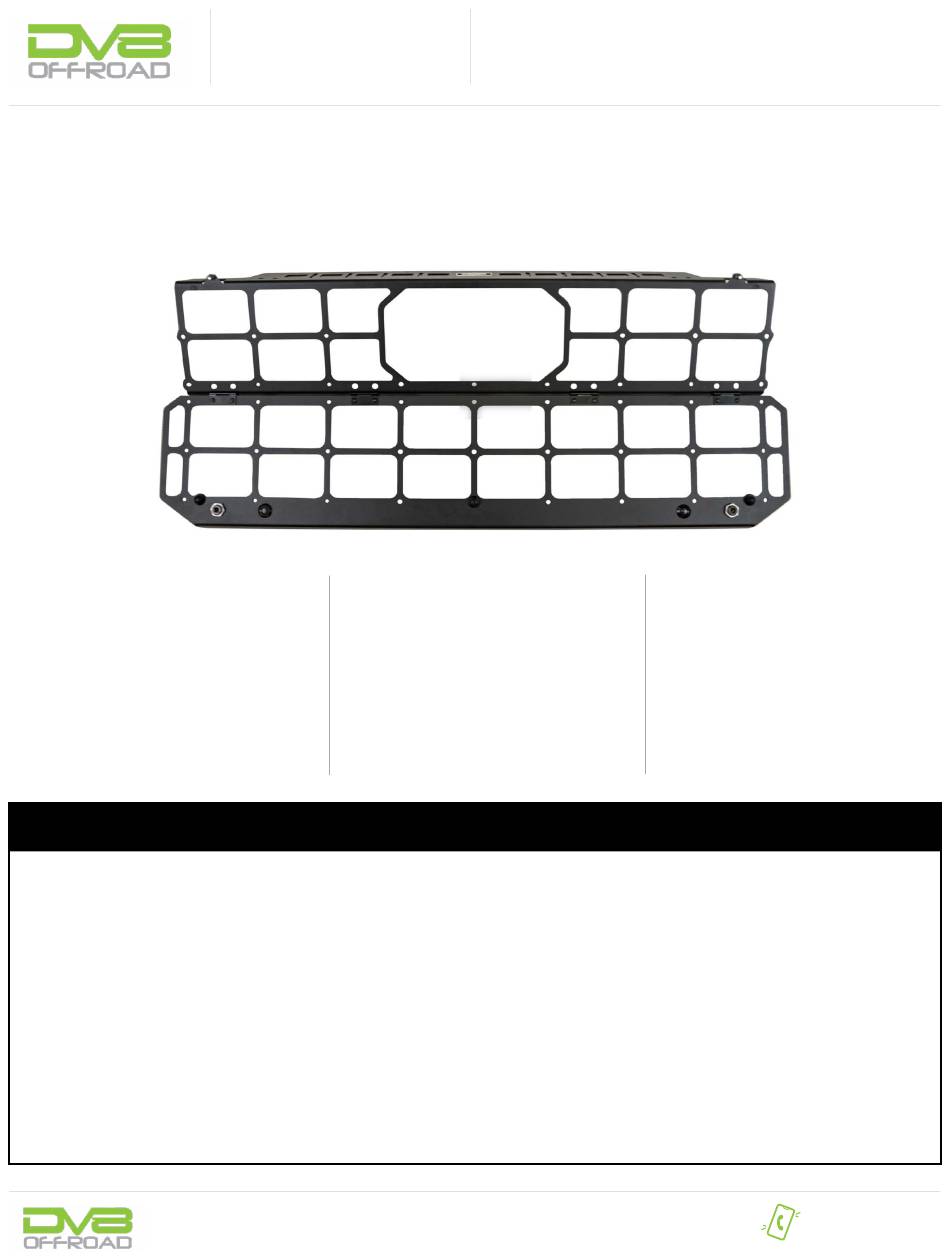

DOG BARRIER
21+ FORD BRONCO
MPBR-10
TOOLS
REQUIRED
- T-30 Torx Head Socket
- 4mm, 5mm Allen Tool
- Blue thread locker
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creek Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 2 Hours
Time to install this should only
take about two hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DV8 OFFROAD MPBR-10
Summary of Contents for DV8 OFFROAD MPBR-10
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (2) M8x20mm Allen Head Bolts (2) M8 Split Washers (2) M8 Flat Washers (6) M6x14mm Allen Head Bolts...
- Page 3 INSTALLATION MANUAL STEP 3 | Slide the provided dog barrier stop brackets on to the head rests as shown with the rubber stop facing toward the rear of the vehicle. Note: using a small amount of WD-40 or similar on the stop brackets helps sliding the bracket on to the head rest.
- Page 4 INSTALLATION MANUAL STEP 4 | Before installing the (2) forward facing mounting brackets on to the overhead roll bar, place a small amount of blue thread locker on the provided M6 hardwares threads. Note: A little goes a long way, do not over use.
- Page 5 INSTALLATION MANUAL STEP 6 | Using a T30 Torx tool, remove the (2) factory torx head bolts that secure the rear speakers to the upper roll bar on each side. STEP 7 | Install the provided rear dog barrier mounting bracket on top of the rear speaker brackets and loosely secure the mounting bracket using the factory hardware.
- Page 6 INSTALLATION MANUAL STEP 8 | Hold the dog barrier up under the roll bar, aligning the mounting brackets with the welded nuts on the dog barrier. Use the provided M6 Allen head hardware to loosely secure the dog barrier at all four mounting brackets.
- Page 7 INSTALLATION MANUAL STEP 9 | Secure the hardware to the dog barrier first, then secure the mounting bracket hardware. 855-680-9595 NEED HELP?
- Page 8 INSTALLATION MANUAL STEP 10 | To prevent the button latch hardware from coming loose due to vibration, we recommend placing a small amount of blue thread locker on the nut threads. 855-680-9595 NEED HELP?
- Page 9 INSTALLATION MANUAL STEP 11 | Optional: To prevent the button latches internals from backing out due to vibration, use a small amount of blue thread locker on the inner threads. STEP 12 | Reinstall the button latches and secure them in place. Note: Do not over tighten.
- Page 10 INSTALLATION MANUAL STEP 13 | If the dog barrier does not rest against the rubber stops when open/ closed, adjust the button latch catch studs to the desired position and then tighten the serrated lock nut on the back side. STEP 14 | Double check that all hardware is secure.
