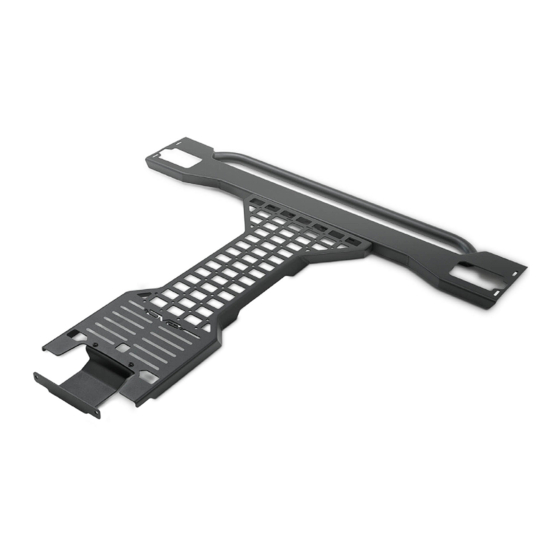

OVERHEAD MOLLE PANEL
21+ FORD BRONCO
MPBR-04
TOOLS
REQUIRED
- Trim Clip Tool
- #4 Allen Bit
- 13mm Socket
- 8mm Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD MPBR-04
Summary of Contents for DV8 OFFROAD MPBR-04

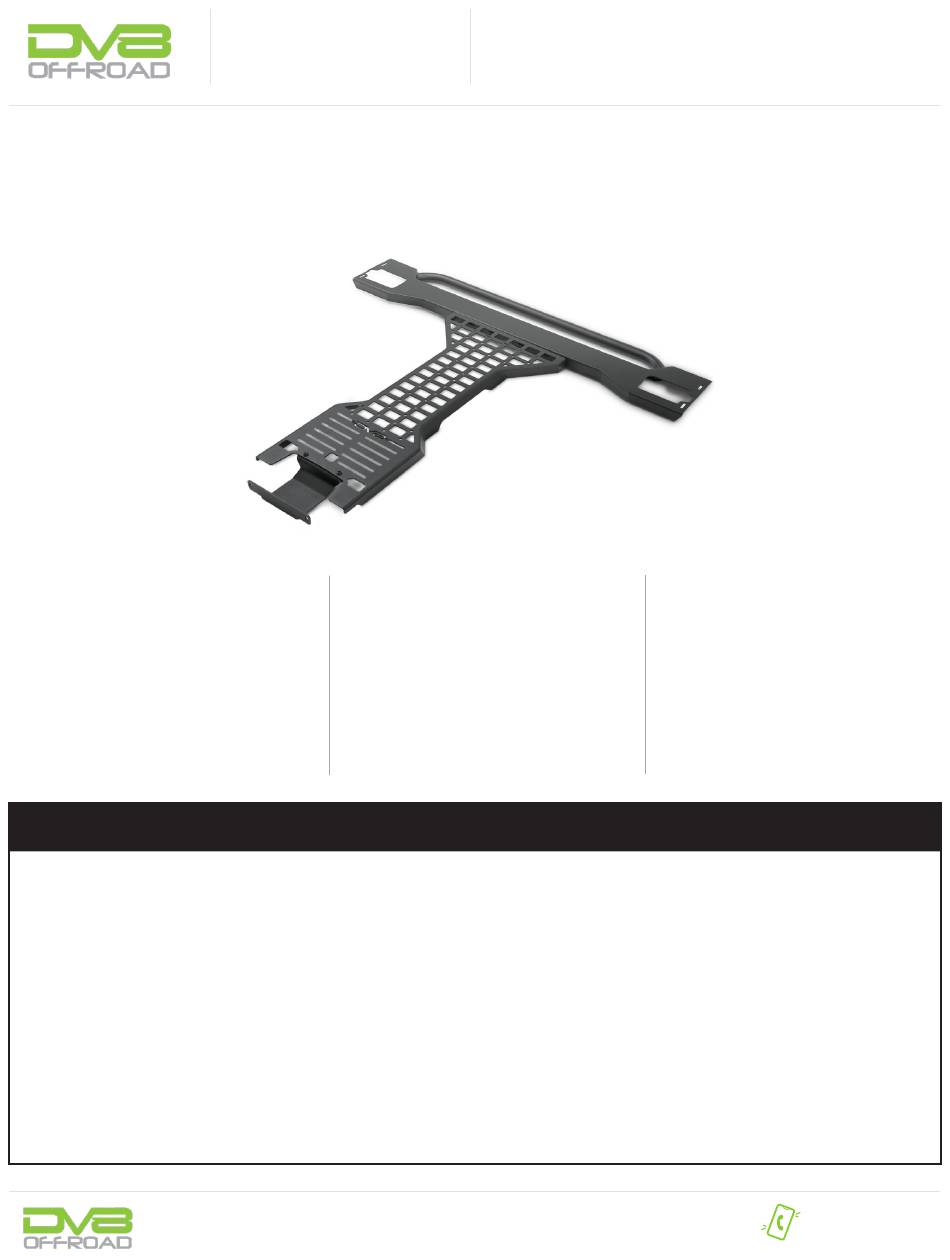

- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (4) M8x80 Hex (20) M6 Flat Washers (4) M8 Flat Washers (4) M8 Spring Washers...
- Page 3 INSTALLATION MANUAL STEP 3 | Pull down on center of the overhead windshield to release the clips that are securing it to windshield. STEP 4 | Apply the provided foam to both sides of the front mounting bracket. This will be the squarish shaped bracket with four mounting holes.
- Page 4 INSTALLATION MANUAL STEP 5 | Use a T50 torx bit to remove two bolts securing the soft/hard top mounting brackets. STEP 6 | Use a 10mm wrench to remove the nut located between the bolts removed in step 5. STEP 7 | Install the front mounting bracket as shown and secure using the factory hardware with a T50 torx bit and a...
- Page 5 INSTALLATION MANUAL STEP 8 | Push the trim back into place until the clips are secured. STEP 9 | Install the sun visor catches using a “L” shaped T20 torx bit. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 10 | For hardtop models, remove the rear two factory bolts on each side securing the hardtop mounting brackets using a T50 torx bit. STEP 11 | Use a 8mm wrench to remove the bolt on the interior of the roll bar.
- Page 7 INSTALLATION MANUAL STEP 12 | Install the rollbar brackets using the factory hardware and make sure the bracket grabs the slotted hole on top of the roll bar. Leave it loose. Loosely install the pressure plate. For hardtop models, use the factory hardware with a T50 torx bit.
- Page 8 INSTALLATION MANUAL STEP 13 | Loosely install the cross bar with tube facing the rear of the vehicle using the provided M6 hardware. STEP 14 | Install molle panel and loosely secure it to the front mount and cross brace using the provided M6 hardware.
- Page 9 INSTALLATION MANUAL STEP 15 | Use a #4 allen bit and 10mm wrench to secure the hardware holding the crossbrace to the roll bar mounting bracket. STEP 16 | Use an 8mm wrench to secure the factory hardware holding the roll bar bracket to the roll bar.
- Page 10 INSTALLATION MANUAL STEP 18 | Secure the M6 hardware at the front and rear of the molle panel using a #4 allen bit and 10mm wrench. NEED HELP? 855-680-9595...
- Page 11 INSTALLATION MANUAL STEP 19 | Congrats! You are finished with the install of the 21+ Bronco Overhead Molle Panel. NEED HELP? 855-680-9595...
