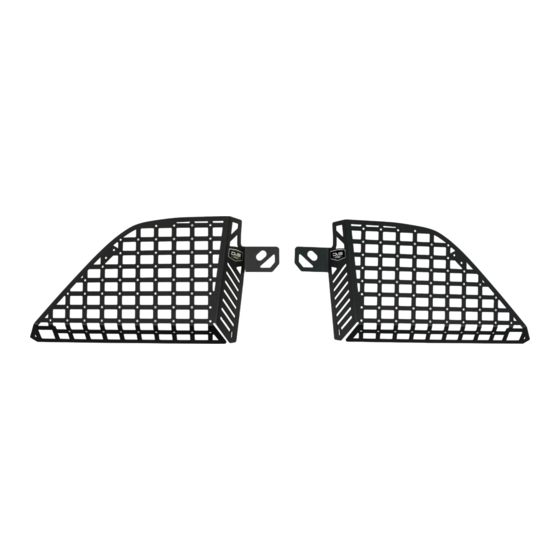

POCKETED REAR WINDOW MOLLE
2021+ FORD BRONCO
MPBR-08
TOOLS
REQUIRED
- T-50 Torque head socket
- #4, #5 Allen Tool
- 10mm wrench
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creed Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 1.5 Hours
Time to install this should only
take about an hour and a half
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DV8 OFFROAD MPBR-08
Summary of Contents for DV8 OFFROAD MPBR-08
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (8) M6x20 Bolts (2) M8 Flat Washer (20) M6 Flat Washers (6) M6 Nylock Nuts...
- Page 3 INSTALLATION MANUAL STEP 3 | Using the factory hardware, loosely install the rear bracket onto the hardtop mount. Note the orientation to ensure you have the correct bracket. STEP 4 | Loosely Install the forward bracket on the hardtop mount using a T50 torx bit and the factory hardware.
- Page 4 INSTALLATION MANUAL STEP 6 | Moving to the molle panel, install the lower rear bracket onto the panel until secure using the M6 hardware provided a 10mm socket and #4 allen. Note the orientation to ensure you have the correct bracket. (Shown in image is the passenger side).
- Page 5 INSTALLATION MANUAL STEP 7 | Once the lower bracket is installed, position the molle panel into the vehicle against the previously installed brackets. To hold the molle panel up, using the seat belt bolt, loosely install into place. 855-680-9595 NEED HELP?
- Page 6 INSTALLATION MANUAL STEP 8 | Using the provided M6 hardware, #4 allen and 10mm wrench or socket, attach panel to the mounts placed in the prior steps. 855-680-9595 NEED HELP?
- Page 7 INSTALLATION MANUAL STEP 9 | Once panel is mounted, align and center panel to ensure it is not rubbing on any of the plastic or painted surfaces. Holding in place, secure all hardware and mounts. Re-tighten seat belt bolt. STEP 10 | Replace seat belt cover.
