MT-5208A/5210A
Mobile Terminal System
User Manual
MT-5208A/R
MT-5210A/R
MT-5208A/H
MT-5210A/H
12580903020 Ver. B0
http://www.posiflex.com
Package Contents
MT-5208A/R or MT-5210A/R (x 1)
Pistol grip (x1)
15W power adaptor (x 1)
Stylus (x 1)
RB-3000 Battery pack for pistol grip (x 1)
User manual (x 1)
Barcode scanner user manual (x 1)
Package Contents
MT-5208A/H or MT-5210A/H (x 1)
15W power adaptor (x 1)
Stylus (x 1)
User manual (x 1)
MT-5208A/5210A is
required to be charged
over 8 hours when
used for the first time.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-5208A and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX MT-5208A

Summary of Contents for POSIFLEX MT-5208A

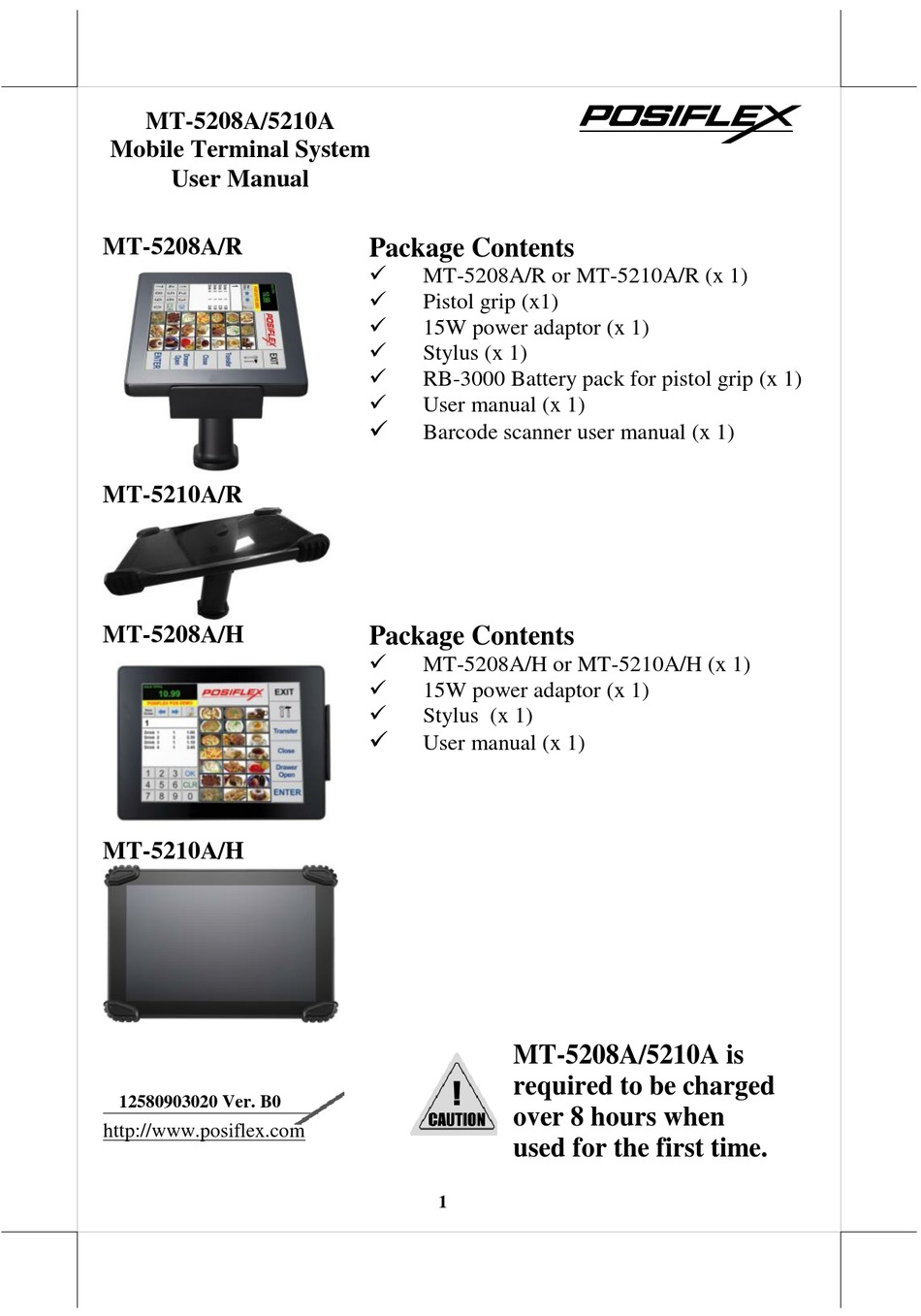

  • Page 1 MT-5208A/5210A Mobile Terminal System User Manual MT-5208A/R Package Contents  MT-5208A/R or MT-5210A/R (x 1)  Pistol grip (x1)  15W power adaptor (x 1)  Stylus (x 1)  RB-3000 Battery pack for pistol grip (x 1)  User manual (x 1) ...
  • Page 2 SOME IMPORTANT NOTES FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. BATTERY CAUTION NOTES  Dispose of used batteries according to the instructions.  Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types) ...

  • Page 4: Product Feature

    5208A/5210A offers more than just mobility but versatility. Long Hour Operation MT-5208A/5210A is designed with advanced power saving technology that provides long battery life for daily operation. The pistol grip also houses a removable battery that can vastly extend the overall operating time.
  • Page 5 Left Side View Micro USB Port Bottom Side View Docking Station Connector 5VDC-IN Power Jack Connecting Hole for Docking Station Top View Mic-in/Line-Out Micro SD Card Slot Combo Jack Power Button...
  • Page 6 Views of MT-5210A/H Front View Rubber Cushion Projected Capacitive Touch Screen LED Indicator Rubber Cushion Rear View Expansion Slot for Hand strap Optional Attachment Speaker Rear Camera Bottom Side View Docking Station Connector 5VDC-IN Power Jack Mic-in/Line-Out Combo Jack Connecting Hole for Docking Station Micro USB Port...
  • Page 7 Load RB-3000 Battery Pack and a stylus into Pistol Grip PG-201E (for MT-5208A/R & MT-5210A/R) Both MT-5208A/R and MT-5210A/R with PG-201E pistol grip support 1D CCD, 1D Laser, and 2D barcode scanner. Before the scanner can be initiated, it is required to install the battery pack RB-3000 and a stylus in the battery compartment inside the pistol grip.
  • Page 8 Connecting the Pistol Grip onto MT-5208A/R & MT- 5210A/R MT-5208A/R and MT-5210A/R models are equipped with an additional pistol grip which aims to help users grip the terminal more easily while they are operating the scanner. Please refer to the following instructions to install the pistol grip onto the tablet.
  • Page 9 3. Make sure the head of the down arrow on the pistol grip is supposed to be aligned with the head of the arrow on the rear side of the tablet as the below figure shows, which indicates the pistol grip is well mounted.
  • Page 10 3. Align the hand strap cover with the grooves on the rear side of the table. 4. Make sure that the hand strap cover is well attached to the rear side of the tablet. 5. Slide the hand strap cover up in the direction indicated by the arrow until it is clicked into place.

  • Page 11: Charging The Battery

    Below are some cautionary advices you need to keep in mind while you attempt to charge the battery. 1. MT-5208A/5210A is required to be charged over 8 hours when used for the first time. 2. When the low battery warning message appears, please fully charge...

  • Page 12: Trickle Charging

    4. Only charge the battery with power adapter which comes with MT-5208A/5210A. Using a different power adapter may damage your device. 5. When the battery is running very low (less than 6 percent of battery capacity), the system will be automatically shut down to protect the battery from being over-discharged.

  • Page 13: Status Led Indicator

    Powering ON/OFF MT-5208A/5210A Power ON MT-5208A/5210A To power on MT-5208A/5210A, keep pressing the power button of the machine for 5-10 seconds. If the terminal falls into the sleep mode after remaining idle for a specific period of time, push the power button to wake the device up.
  • Page 14 TA-500 user manual. Installing Optional Upgrade Kits Posiflex MT-5208A/5210A can work with multiple optional upgrade kits, such as MSR, Smart Card Reader and the like. For the detailed instructions, refer to the user manual related to each peripheral devices.

  • Page 15: Specifications

    Specifications MT-5208A MT-5210A System Rockchip RK3399 Memory 2GB (default) / 4GB Rear Camera 5M pixels rear facing camera Sensors G sensor, ambient light sensor Battery 3.7V/4800mAh, 17.76Wh Storage Storage 16GB (default) / 32GB OS Support OS Support Android 9.0 Display & Monitor 8”...
  • Page 16 CR Port x 1 + 3” WiFi Printer x 1 300 / 310 / 320 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the MT-5208A/5210A, please check this model from Posiflex Global Website.
