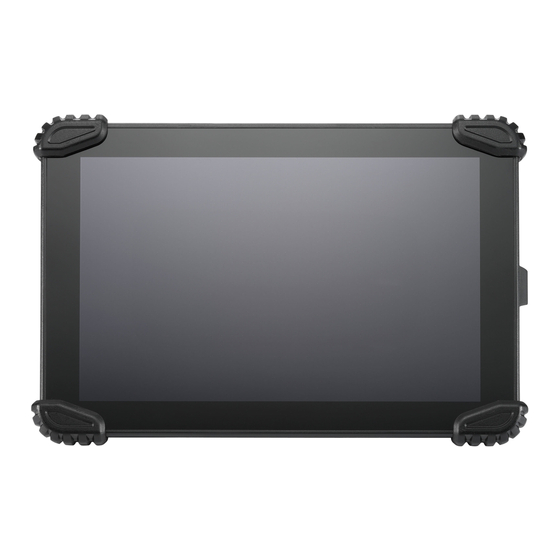

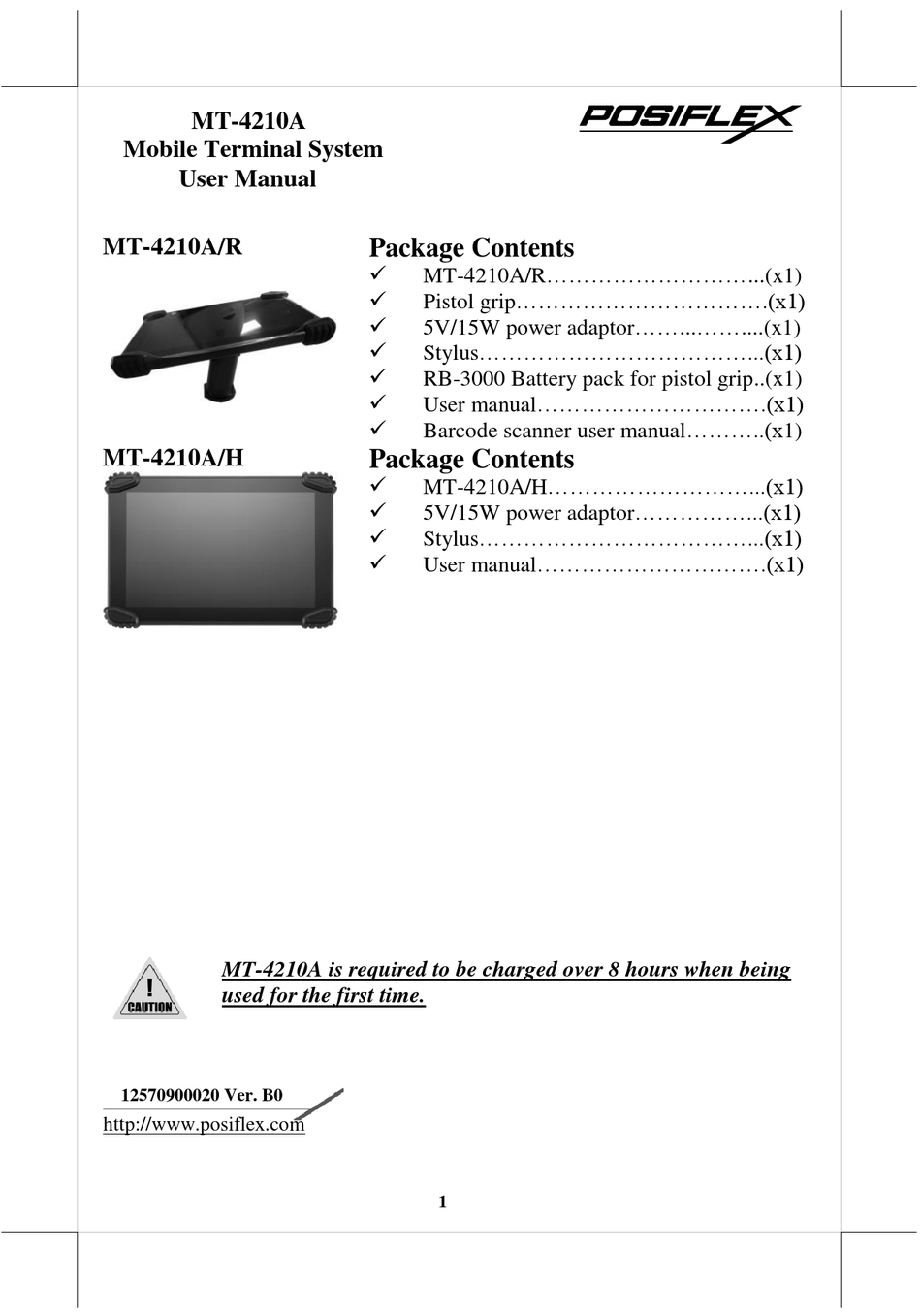

MT-4210A
Mobile Terminal System
User Manual
MT-4210A/R
MT-4210A/H
MT-4210A is required to be charged over 8 hours when being
used for the first time.
12570900020 Ver. B0
http://www.posiflex.com
Package Contents
MT-4210A/R..............................(x1)
Pistol grip..................................(x1)
5V/15W power adaptor...................(x1)
Stylus.......................................(x1)
RB-3000 Battery pack for pistol grip..(x1)
User manual...............................(x1)
Barcode scanner user manual...........(x1)
Package Contents
MT-4210A/H..............................(x1)
5V/15W power adaptor..................(x1)
Stylus.......................................(x1)
User manual...............................(x1)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX MT-4210A
Summary of Contents for POSIFLEX MT-4210A
- Page 1 User manual………………………….(x1) Barcode scanner user manual………..(x1) MT-4210A/H Package Contents MT-4210A/H………………………...(x1) 5V/15W power adaptor……………...(x1) Stylus………………………………...(x1) User manual………………………….(x1) MT-4210A is required to be charged over 8 hours when being used for the first time. 12570900020 Ver. B0 http://www.posiflex.com...
-
Page 2: Fcc Notes
SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. - Page 3 BATTERY CAUTION NOTES Dispose of used batteries according to the instructions. Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types) Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion.
-
Page 4: Product Feature
4210A offers more than just mobility but versatility. Long Hour Operation MT-4210A is designed with advanced power saving technology that provides long battery life for daily operation. The pistol grip also houses a removable battery that can vastly extend the overall operating time. - Page 5 Docking Station Connector 5VDC-IN Power Jack Mic-in/Line-Out Combo Jack Docking Station Locking Hole microUSB Port Left Side View Smart Card Reader Power Button (Optional) Micro SD Card Slot Nano SIM Card Slot (Only available for MT-4210A series with 4G module)
- Page 6 Loading RB-3000 Battery Pack and a Stylus into PG-200E (for MT-4210A/R) The MT-4210A/R working with PG-200E pistol grip supports 1D CCD barcode scanner, 1D laser barcode scanner, and 2D imager. Before the scanner/imager can be initiated, it is required to install the RB-3000 battery pack and a stylus in the battery compartment inside the pistol grip.
- Page 7 Connecting the Pistol Grip onto MT-4210A/R The MT-4210A/R model is equipped with an additional pistol grip which aims to help users grip the terminal more easily while they are operating the scanner. Please refer to the following instructions to install the pistol grip onto the tablet.
- Page 8 Replacing the Pistol Grip with a Hand Strap Cover (Optional) The hand strap cover is an optional peripheral designed for users to easily hold the tablet for operation. To replace the pistol grip with a hand strap cover, follow the steps listed below. 1.
- Page 9 3. Remove the hand strap cover from the rear side of the tablet. 4. Go through the Connecting the Pistol Grip onto MT-4210A/R section which is described previously to complete the installation of the pistol grip onto the tablet.
-
Page 10: Charging The Battery
Below are some cautionary advices you need to keep in mind while you attempt to charge the battery. 1. MT-4210A is required to be charged over 8 hours when being used for the first time. 2. When the low battery warning message appears as shown below, please fully charge the battery to avoid data loss. -
Page 11: Led Status Indicator
5. When the battery is running very low (less than 6 percent of battery capacity), the system will be automatically shut down to protect the battery from being over-discharged. Please go through the following instructions to charge MT-4210A using the power adapter. For MT-4210A/R... - Page 12 Powering ON/OFF MT-4210A Powering ON MT-4210A To power on MT-4210A for the first time, connect the power adapter to the MT-4210A and then keep pressing the power button of the machine for around 5 seconds. If the terminal falls into the sleep mode after remaining...
- Page 13 Please be advised to contact your service center for further assistance with system recovery. Installing Optional Upgrade Kits Posiflex MT-4210A can work with multiple optional upgrade kits, such as MSR, Smart Card Reader and the like. For the detailed instructions, refer to the user manual related to each peripheral devices.
-
Page 14: Specifications
Specifications MT-4210A ALLWINNER A83T processor (Octa-core, 2.0 Ghz), PMIC AXP813 DRAM Memory 2GB DDR3 (on-board RAM) Android 6.0 Display 10.1" 1280 x 800 LCD, 400 nits Touch Screen P-CAP touch with multi-touch support Storage 16GB eMMC Micro-SD card slot (non OTG USB Port) x1,... - Page 15 / 310 / 320 CR Port x 1 + 3" WiFi Printer x 1 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the MT-4210A, please check this model from Posiflex Global Website.
- Page 16 <MEMO>...
