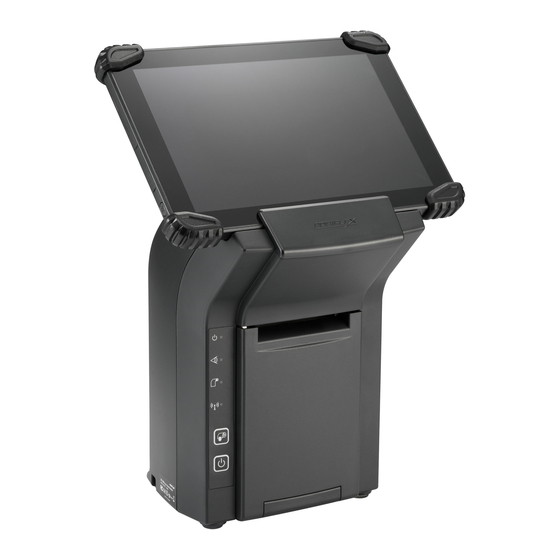

MT-4308W/4310W/4210A
Mobile Terminal System
User Manual
MT-4308W/R
MT-4310W/R
MT-4210A/R
MT-4308W/H
MT-4310W/H
MT-4210A/H
MT-4308W/4310W/4210A is required to be
charged over 8 hours when used for the first time.
12550900030 Ver. B0
http://www.posiflex.com

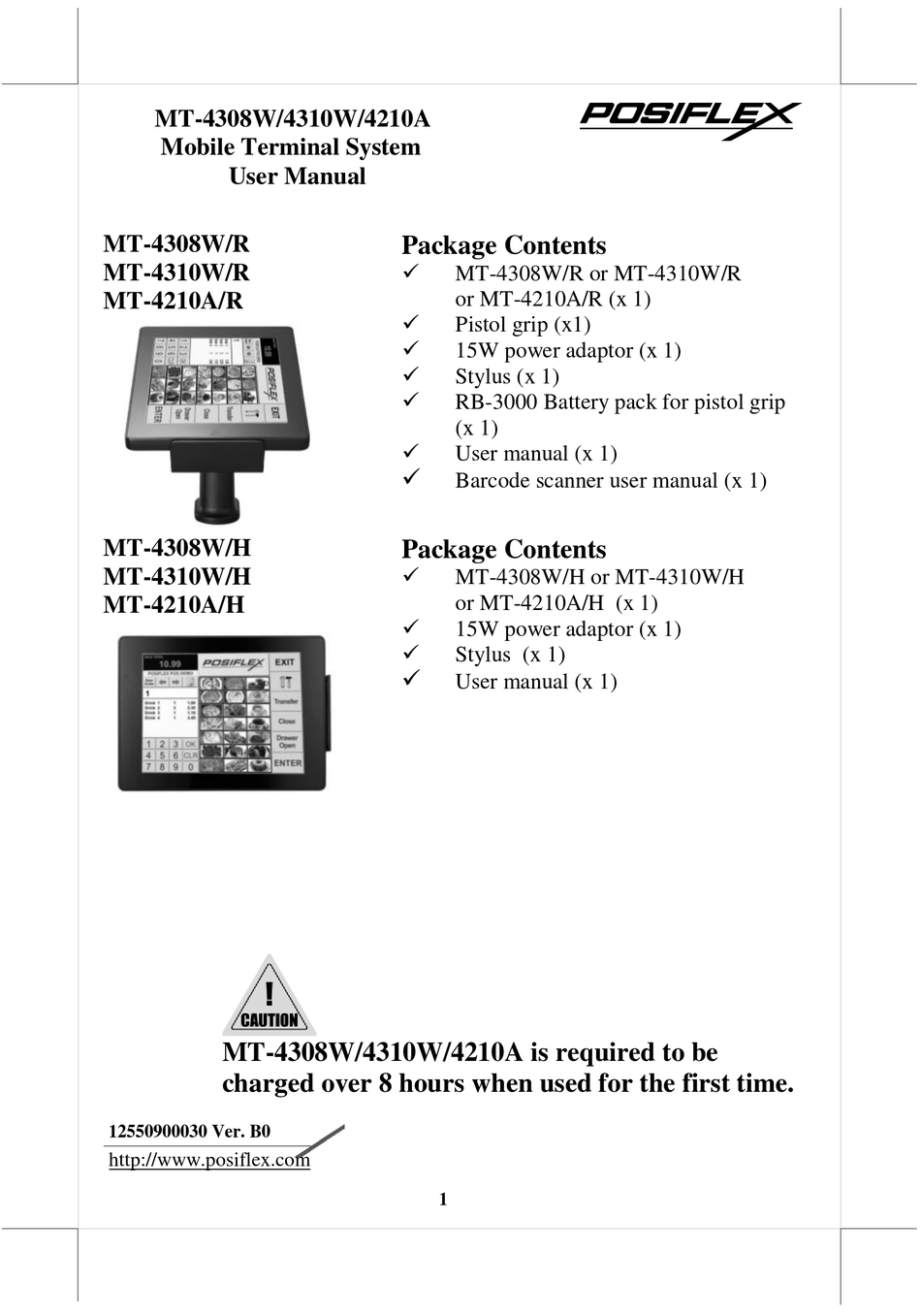

Package Contents
MT-4308W/R or MT-4310W/R
or MT-4210A/R (x 1)
Pistol grip (x1)
15W power adaptor (x 1)
Stylus (x 1)
RB-3000 Battery pack for pistol grip
(x 1)
User manual (x 1)
Barcode scanner user manual (x 1)
Package Contents
MT-4308W/H or MT-4310W/H
or MT-4210A/H (x 1)
15W power adaptor (x 1)
Stylus (x 1)
User manual (x 1)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-4310W/R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX MT-4310W/R

Summary of Contents for POSIFLEX MT-4310W/R

  • Page 1 MT-4308W/4310W/4210A Mobile Terminal System User Manual MT-4308W/R Package Contents  MT-4310W/R MT-4308W/R or MT-4310W/R or MT-4210A/R (x 1) MT-4210A/R  Pistol grip (x1)  15W power adaptor (x 1)  Stylus (x 1)  RB-3000 Battery pack for pistol grip (x 1) ...

  • Page 2: Product Feature

    Product Feature Ergonomic Design Pistol grip shape handle is ergonomically designed for easy handling of the tablet. Extra Protection Hand strap strengthens the stability and eases user’s fatigue during the hours of work. All-in-one Solution Optional dock station equips with a built-in 3” thermal printer and various I/O connectivity;...
  • Page 3 Top View microUSB Port Left Side View Docking Station Connector 5VDC-IN Power Jack Docking Station Locking Hole Right Side View Mic-in/Line-Out Micro SD Card Slot Combo Jack Power Button...
  • Page 4 Views of MT-4310W/H & MT-4210A/H Front View Projected Capacitive Touch Screen 3-track Magnetic Stripe Reader (Optional) LED Indicator Rear View 3-track Magnetic Stripe Reader (Optional) Hand strap Speaker Rear Camera Left Side View Docking Station Connector 5VDC-IN Power Jack Mic-in/Line-Out Combo Jack Docking Station Locking Hole microUSB Port...
  • Page 5 Load RB-3000 Battery Pack and a stylus into Pistol Grip PG- 200E (for MT-4308W/R & MT-4310W/R & MT-4210A/R) MT-4308W/R, MT-4310W/R and MT-4210A/R with PG-200E pistol grip support 1D CCD, 1D Laser, and 2D barcode scanner. Before the scanner can be initiated, it is required to install the battery pack RB-3000 and a stylus in the battery compartment inside the pistol grip.
  • Page 6 Connecting the Pistol Grip onto MT-4308W/R & MT- 4310W/R & MT-4210A/R MT-4308W/R, MT-4310W/R and MT-4210A/R models are equipped with an additional pistol grip which aims to help users grip the terminal more easily while they are operating the scanner. Please refer to the following instructions to install the pistol grip onto the tablet.
  • Page 7 3. Make sure the head of the down arrow on the pistol grip is supposed to be aligned with the head of the arrow on the rear side of the tablet as the below figure shows, which indicates the pistol grip is well mounted.
  • Page 8 3. Align the hand strap cover with the grooves on the rear side of the table. 4. Make sure that the hand strap cover is well attached to the rear side of the tablet. 5. Slide the hand strap cover up in the direction indicated by the arrow until it is clicked into place.
  • Page 9 3. Remove the hand strap cover from the rear side of the tablet. 4. Go through the Connecting the Pistol Grip onto MT-4308W/R & MT-4310W/R & MT-4210A/R section which is described previously to complete the installation of the pistol grip onto the tablet.

  • Page 10: Charging The Battery

    Please go through the following instructions to charge MT-4308W/4310W using the power adapter. For MT-4308W/R & MT-4310W/R & MT-4210A/R In considering the battery life could be consumed drastically under heavy usage, you may also choose to purchase either another replacement battery RB-3000 for the pistol grip or the battery charger CS-100 for rapidly charging the replacement battery RB-3000.

  • Page 11: Status Led Indicator

    For MT-4308W/H & MT-4310W/H & MT-4210A/H Find the power jack on the left side of your tablet, and then connect the power connector of the power adaptor to it. Plug the AC power adaptor cord into an electrical outlet to initiate the charging process.
  • Page 12 Operating the 1D/2D Scanner (for MT-4308W/R & MT- 4310W/R & MT-4210A/R) MT-4308W/R, MT-4310W/R and MT-4210A/R models are equipped with an optional 1D CCD, 1D Laser, or 2D scanners features 1D and/or 2D barcode scanning. It also supports two types of...

  • Page 13: Installing An Operating System

    Installing Optional Upgrade Kits Posiflex MT-4308W/4310W/4210A can work with multiple optional upgrade kits, such as MSR, Smart Card Reader and the like. For the detailed instructions, refer to the user manual related to each peripheral devices.
  • Page 14 Note: (*) Either smart card reader or 3G module can be installed into MT- 4310W system. ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the MT- 4308W/4310W/4210A, please check this model from Posiflex Global Website...
  • Page 15 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 16 <MEMO>...
