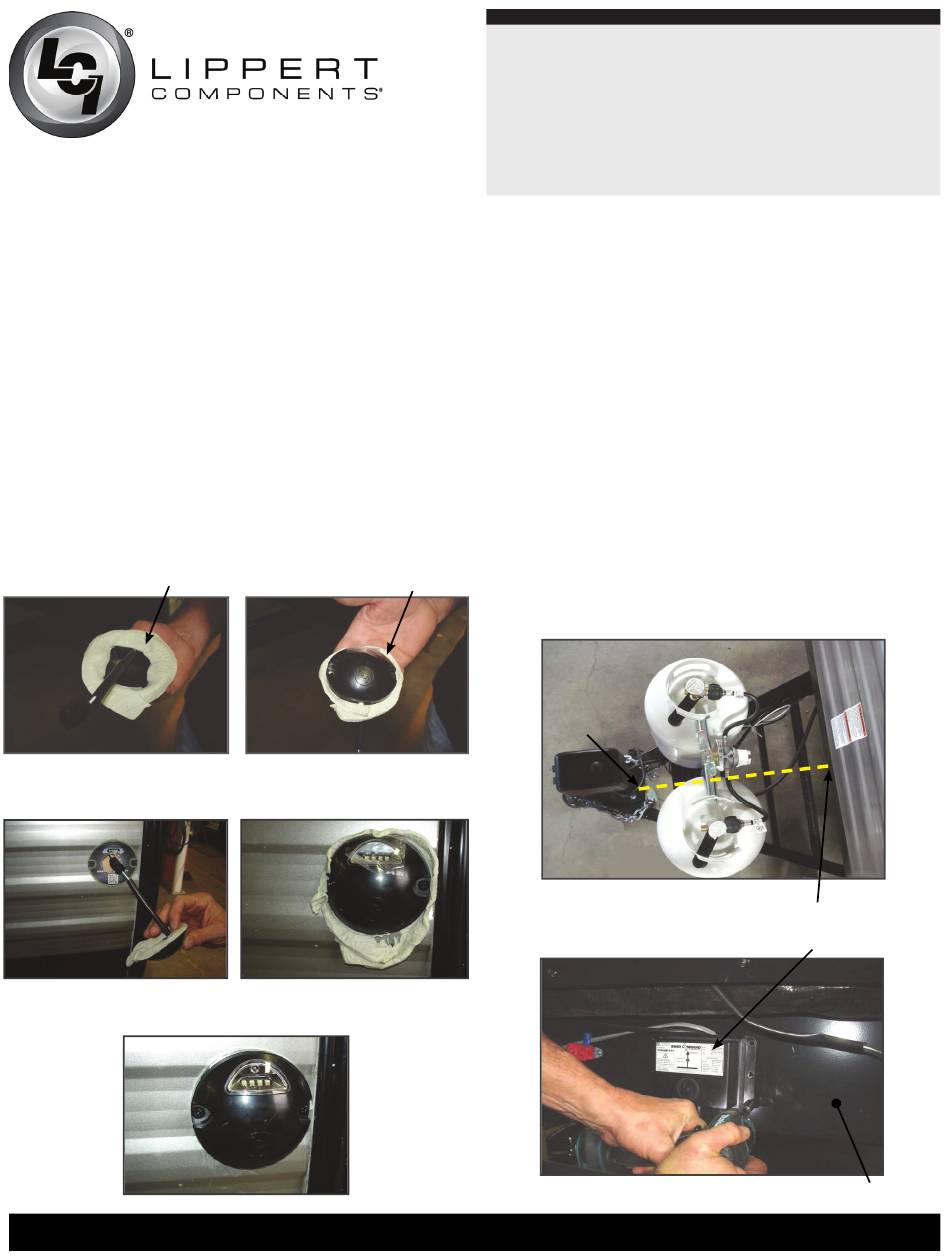

6. Prep the back side of the light pod with butyl tape as shown
(Fig. 6 and 7).
7. Plug the connector on the light pod to the one fi shed out of
the inside of the wall (Fig. 8).
8. The connector and wiring should be tucked straight up inside
the wall, away from the mounting screws for the light pod.
9. Place the light pod over the sticker with LEDs facing upward
as shown (Fig. 9). Secure the pod to the front wall using two
#8 x 1" screws (Fig. 9).
10. Trim all the excess butyl tape from around the light pod
(Fig. 10).
Butyl Tape
Fig.6
Fig.8
Fig.10
www.lci1.com (574) 537-8900
Butyl Tape
Fig.7
Fig.9
Rev: 02.16
Sway Command™ (Prepped Unit Only)
Aftermarket Install
Manual
11. The controller should be mounted as high up on the front
frame rail as possible, and within 6 inches of the centerline
(Fig. 11 and 12).
Note: In some cases the spare tire is mounted inside the
A-frame leaving insuffi cient space for the controller on the
front of the frame rail. A bracket has been provided behind
the front frame rail on which to mount the controller.
Note: The controller should also be mounted in as level a
position as possible.
12. Secure the controller with the four 1/4" hex head lag
screws and the 3/8" socket bit (Fig. 12). DO NOT over-tighten
the screws as this may cause the controller housing to crack.
Unplug the large harness from the controller.
Fig.11
Centerline
Fig.12
4
Sway Command™ Prepped Unit Aftermarket Install Manual
Sway Command™ Controller
(Not visible in Fig. 11)
Frame Rail
