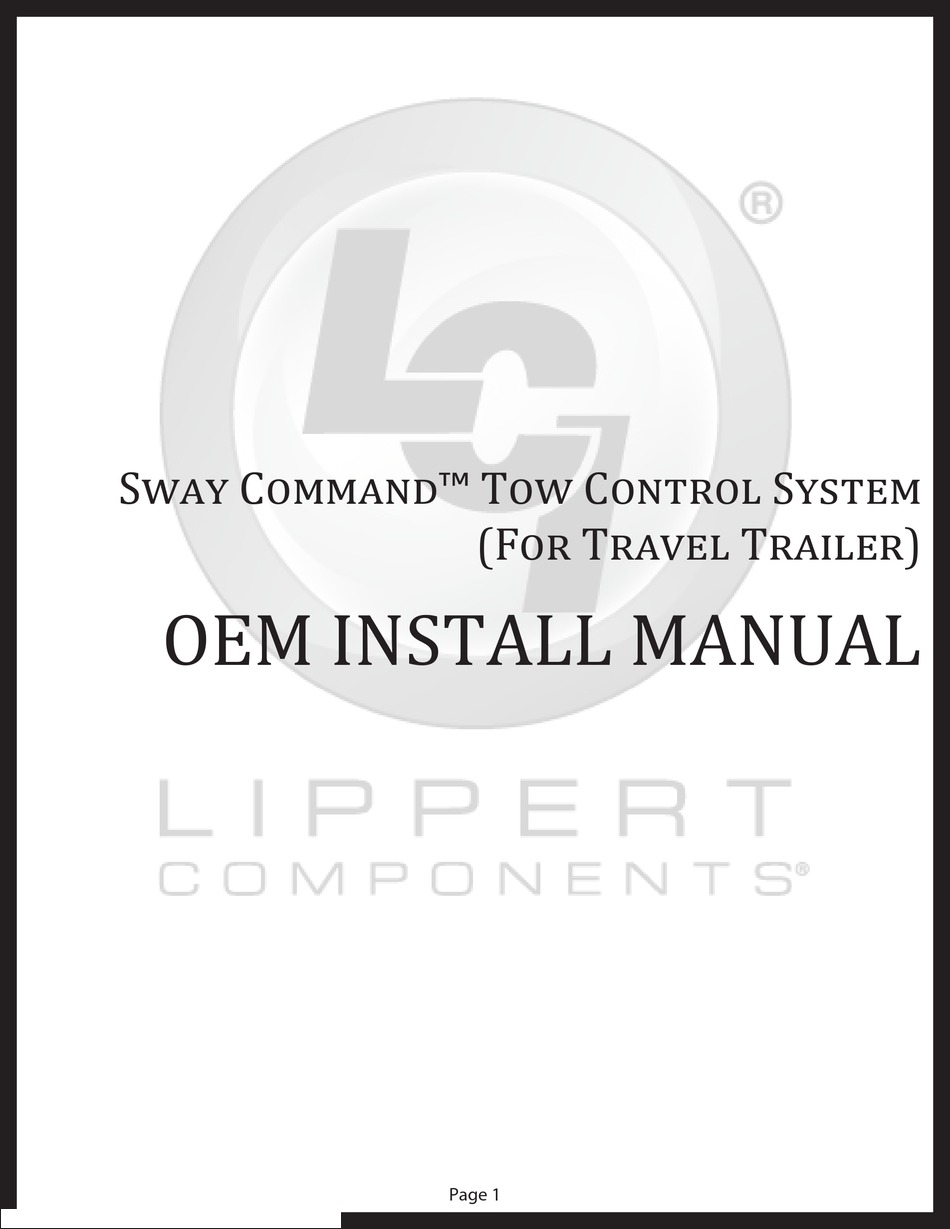

- Page 1 Sway Command™ Tow Control System (For Travel Trailer) OEM INSTALL MANUAL Page 1 Rev: 09.17.2015 Sway Command™ OEM Install Manual...
-
Page 2: Table Of Contents
Light Codes and Troubleshooting Introduction The Sway Command™ Tow Control system is a self-contained trailer stability control module that detects undesirable trailer movement from external sensors and mitigates it by adaptively applying a variable braking voltage to the left and right trailer electric brakes. This system is currently only for use on travel trailers. -
Page 3: Preparation

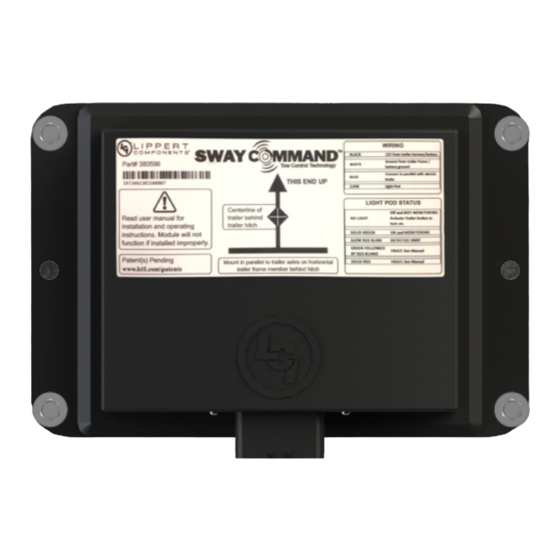

Installation Sway Command™ Controller Mounting NOTE: Never drill into the The Sway Command™ controller or compromise the pressure equalizer plug hole on the back of the controller. Doing so voids the warranty and could damage the controller. NOTE: The Sway Command™ controller is water-resistant, but not waterproof. Do not spray high pressure water directly at the controller. -
Page 4: Sway Command Wiring
(Fig. 3). Fig. 3 Sway Command Wiring Fig. 4 Connect the Sway Command™ main wire harness (Fig. 4A) to the port on the Sway Command™ controller. Connect the Light Pod extension harness (Fig. 4B) to the two-pin connector on the main harness. -
Page 5: Sway Command™ Light Pod Mounting
Sway Command™ Light Pod Mounting NOTE: The Light Pod (Fig. 5A)should be mounted in a location that can be easily seen by the tow vehicle operator. Connect the Light Pod to the extension harness (Fig. 5C) that was previously connected to the Sway Command™... -
Page 6: Sway Command™ Compatible Tow Vehicle Brake Controllers
A tow vehicle brake controller may be OEM factory installed or an aftermarket install. The table below shows a list of aftermarket brake controllers tested with Sway Command™. Check with LCI on compatibility of a brake controller not listed below. -
Page 7: Sway Command™ Controller Operation
Command™ performs self-checks and alternately flashes the light pod lights green and red. NOTE: The Sway Command™ light pod will be green if no issues are detected. If an issue is detected, the Light Pod will blink green once, followed by a number of red flashes. See troubleshooting for a description of the various blink codes. - Page 8 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
