Sway Command
1.5
by trailair
®
(JAYCO)(AU)
OEM INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sway Command and is the answer not in the manual?

Questions and answers

Related Manuals for Lippert Components Sway Command

Summary of Contents for Lippert Components Sway Command

  • Page 1 Sway Command by trailair ® (JAYCO)(AU) OEM INSTALLATION MANUAL...

  • Page 2: Table Of Contents

    Light Codes and Troubleshooting Notes Introduction The Sway Command® system is a self-contained caravan stability control module that detects undesirable caravan movement from external sensors and mitigates it by adaptively applying a variable braking voltage to the left and right caravan electric brakes.

  • Page 3: Resources Required

    Do not submerge the caravan. The Sway command is not designed to be submerged under water (Water Crossing). Extended submersion could cause Non-Warrantable damage. The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or product or property damage if not safely adhered to and within the parameters set forth in this manual.

  • Page 4: Installation

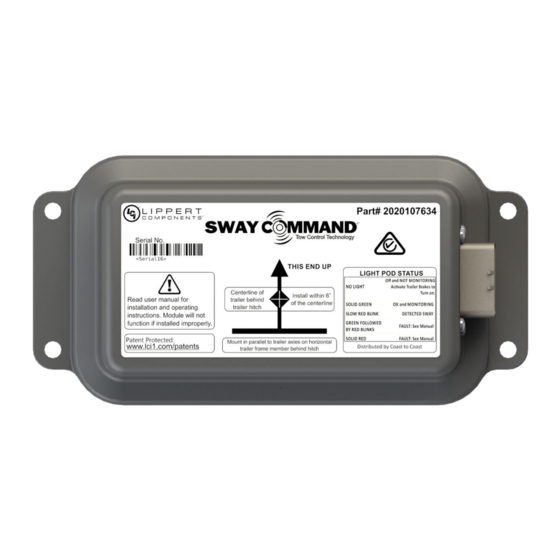

    Mounting Controller The provided Sway Command controller module (Fig. 1) will be fitted within 152 mm (6 inches) of the centerline of the chassis, and to the right side of the center rail on the chassis, at the front of the chassis frame (Fig.
  • Page 5 Prior to the floor being placed on the chassis, place the housing against the mounting surface. Use a paint marker or grease pencil to locate the four mounting holes for the Sway Command module (Fig. 4B). Using a drill with the 5.5 mm drill bit, drill pilot holes through the crossmember at the four previously marked locations.

  • Page 6: Sway Command Wiring

    20A user-replaceable/sealed fuse between the junction box power connection and the black Sway Command power connection. Plug the Sway Command loom into the axle loom connector. Route the wiring harness from the controller module connector location to the front of the chassis frame where the controller module is mounted.

  • Page 7: Testing The System

    Connect the light pod to the OEM-provided electrical harness through the A-frame loom hole. Note: The light pod wiring and connection point can be coiled into the cavity on the backside of the light pod for a cleaner appearance, if preferred. Mounting the light pod on a caravan wall: All electrical wiring harnesses shall be loomed and secured to prevent possible damage and installed in accordance with best shop practices.

  • Page 8: Light Codes And Troubleshooting

    If the light pod is lit green, and no error codes are detected, place the Sway Command warning sticker (Fig. 7A) on the outside of the caravan's A-frame next to the light pod. Fig. 7 Light Codes and Troubleshooting In the event a tow vehicle brake controller detects a fault after Sway Command detects a sway event, manually activate the tow vehicle brake controller a few times to clear the fault.

  • Page 9: Notes

    Notes Page 9 Rev: 10.15.20 CCD-0003688...
  • Page 10 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided.  Any unauthorized use shall void any applicable warranty. ...
