"Linearization" submenu
L
1
I

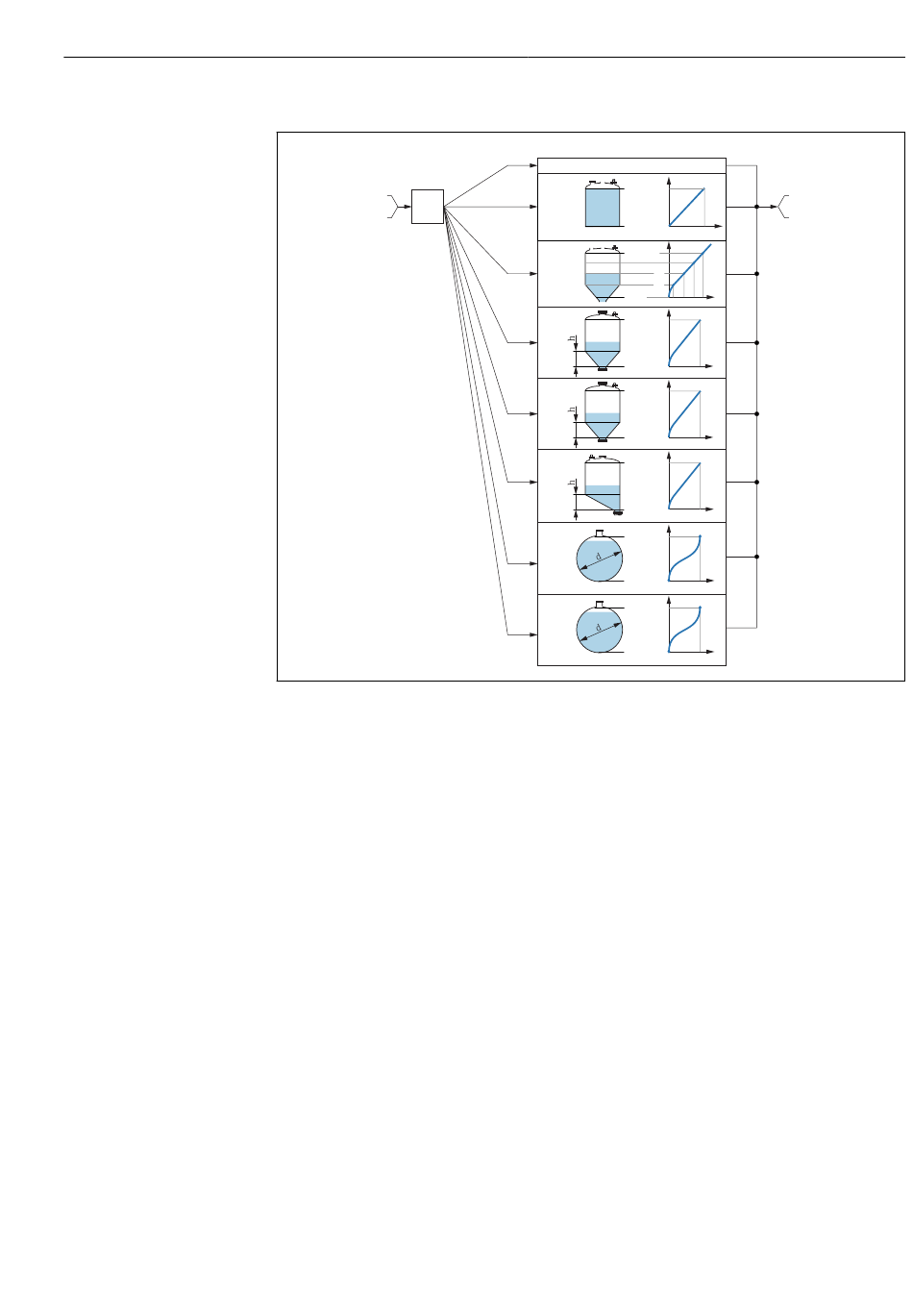

 37 Linearization: Conversion of the level and, if applicable, interface into a volume or a weight; the
conversion depends on the vessel shape
1 Selection of linearization type and unit
2 Configuration of the linearization
A Linearization type (→  146) = None
B Linearization type (→  146) = Linear
C Linearization type (→  146) = Table
D Linearization type (→  146) = Pyramid bottom
E Linearization type (→  146) = Conical bottom
F Linearization type (→  146) = Angled bottom
G Linearization type (→  146) = Horizontal cylinder
H Linearization type (→  146) = Sphere
I For "Operating mode" = "Interface" or "Interface with capacitance": interface before linearization (measured in
the level unit)
I' For "Operating mode" = "Interface" or "Interface with capacitance": interface after linearization (corresponds to
volume or weight)
L Level before linearization (measured in level unit)
L' Level linearized (→  149) (corresponds to volume or weight)
M Maximum value (→  149)
d Diameter (→  149)
h Intermediate height (→  150)
2
A
L
100%
B
0%
M
L
100%
L2
C
L1
0%
L'1 L'2 L'
L
100%
D
0%
M L'
L
100%
E
0%
M L'
L
100%
F
0%
M L'
L
100%
G
0%
M L'
L
100%
H
0%
M L'
Operating menu
L'
I'
L'
A0016084
