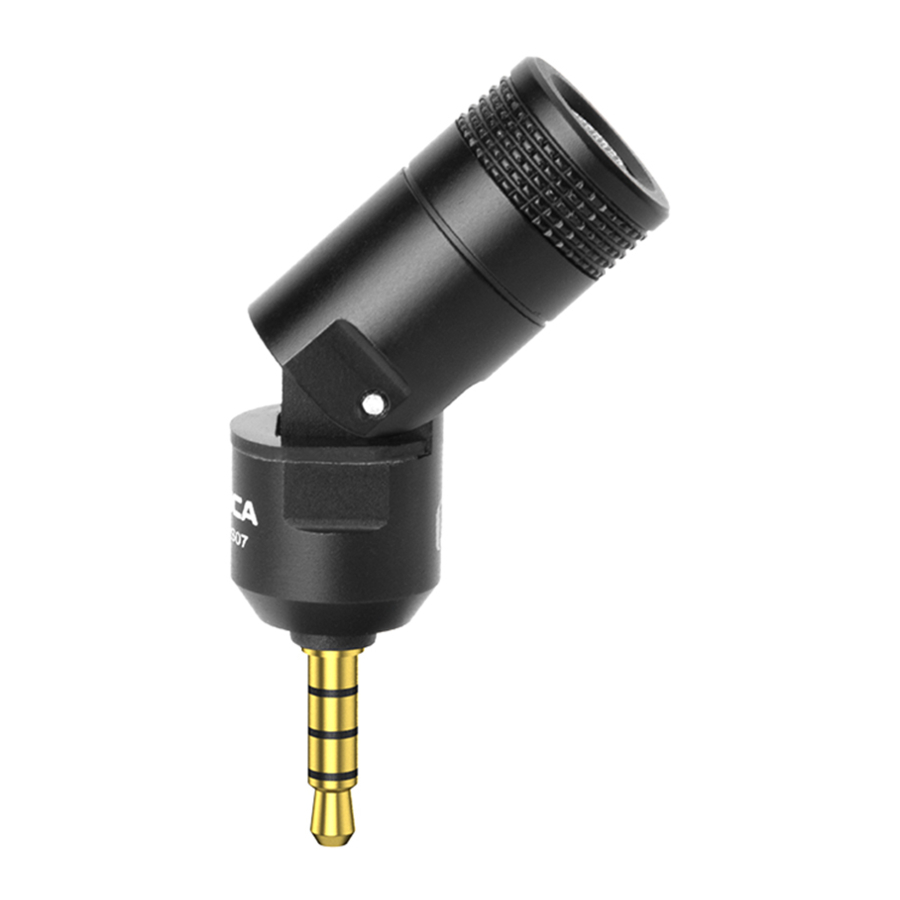

- Page 1 CVM-VS07 Mini Flexible Plug-In Omnidirectional Microphone (For GOPRO,Camera,Phone,Stabilizer) USER MANUAL...
-
Page 2: Packing List
Foreword Thanks for purchasing COMICA CVM-VS07 Mini Flexible Plug-in Omnidirectional Microphone. This item is universal for GoPro, DSLR Camera, Phone and Stabilizer , is a Omnidirectional Microphone with 3.5mm TRRS Plug, 90 Degree Adjustable Audio Recording Direction, Metal Housing Construction and Excellent Shielding features, which is definetely the best assistant for your video recording;... - Page 3 Notice For the Android system smartphone, the microphone works well in default audio mode, but default video mode will happen with incompatibility trouble while working with some smartphone;(Then we suggest you try the 3rd party’s video APP); For the iOS system phone, the microphone works well in all default audio mode , video mode, and 3rd party’s APP;...
-
Page 4: Main Features
Main Features . Plug-In Omnidirectional Mic . 90 Degree Adjustable Recording Direction Construction . Metal Housing for Excellent Shielding . Built-in Shock-mount and Gold Plated Capsule . Mini、Light and Flexibly Universal for GoPro,Camera,Phone,Stabilizer Shock Absorption Mini&Compact Metal Housing Omnidirectional 90 Degree for Better Shielding Adjustment... - Page 5 Components Instruction ① ① ② Capsule ③ Rotary Axis 3.5mm TRRS Plug ② ③...
- Page 6 Product Installation and Use 1.Windscreen Installation First Step: Put on the Windscreen Second Step: Normal use...
- Page 7 2.Work with GoPro First Step: Second Step: Third Step: Insert microphone into 3.5mm socket Adjust to right direction Nomal use...
- Page 8 3.Work with Camera First Step: Second Step: Third Step: Insert microphone into 3.5mm socket Adjust to right direction Nomal use...
- Page 9 4.Work with Phone First Step: Second Step: Third Step: Insert microphone into 3.5mm socket Adjust to right direction Nomal use...
-
Page 10: Specification
Specification 1.Frequency Response 2.Polar Pattern +5.0 -2.0 -2.0 -4.0 -6.0 -8.0 -10. 0 -10.0 -12.0 -14.0 -16.0 -18.0 -20.0 -20.0 -22.0 -24.0 -25.0 dB rel. 1V/Pa Frequency: 500 Hz : 1000 Hz : 4000 Hz : 8000 Hz : 14000 Hz :... - Page 11 3.Technology Parameters Omnidirectional Polar Pattern -30±2dB Sensitivity 60Hz~18kHz Frequency Response >75dB Signal to Noise Ratio >100dB Maximum SPL 3.5mm TRRS Plug Output Socket 90° Maximum Rotate Degree 0℃~50℃ Working Temperature -20℃~60℃ Storage Temperature...
- Page 12 Email: support@comica-audio.com...
