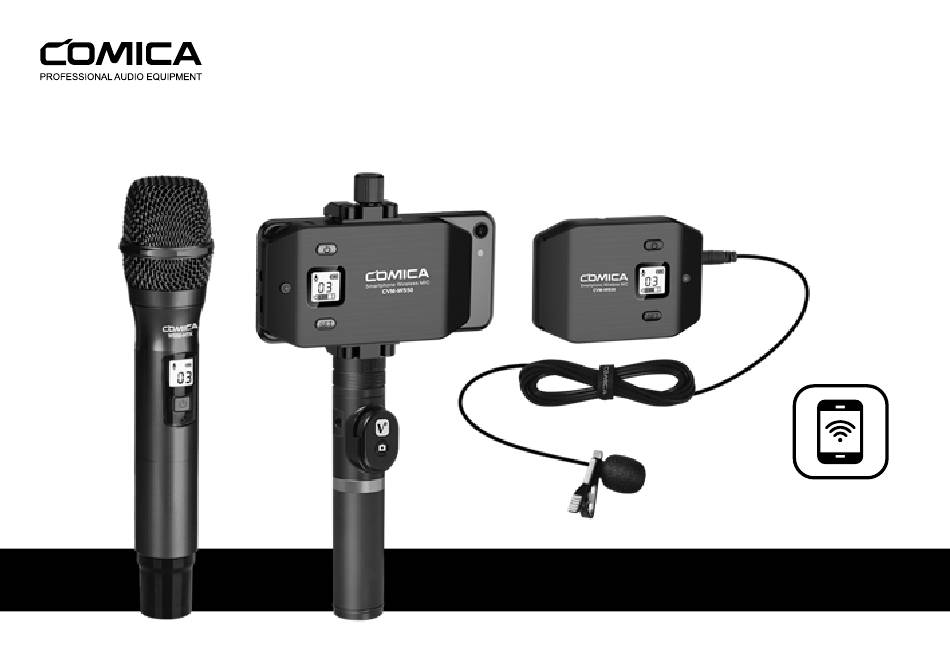

  • Page 1 CVM-WS50 UHF Wireless Microphone FOR SMARTPHONE USER MANUAL...
  • Page 2: Fcc Statement

    FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Specification

    Specification Lavalier Transmitter (TX) : Channels Wireless Frequency 520.00MHz ~ 526.00MHz Transmitting Power 10dBm Hand-held Transmitter (HTX) : Channels Wireless Frequency 520.00MHz ~ 526.00MHz Transmitting Power 10dBm Receiver: Channels Wireless Frequency 520.00MHz ~ 526.00MHz...
  • Page 4 Foreword Thank you for purchasing Comica CVM-WS50 Main Features . 6 Channels, Working Distance Up to 60m (Open Area, 30m in Area with Obstacle) . Built-in Rechargeable Lithium Battery and Metal Smartphone Holder . LCD Screen for Displaying Channels and Audio Status .
  • Page 5 Notice . For devices with USB interface, please purchase the relevant adapter by yourself . For the smartphones with Android system, this Mic works well in audio mode, it may not be compatible with partial smartphones in video mode(Then we suggest you to try the 3rd party APP, such as Filmic Pro, Proshot, ect.) .
  • Page 6: Packing List

    Packing List Main Body: Lavalier Transmitter (TX) Hand-held Transmitter (HTX) Receiver(RX) Electronic Grip Ordinary Grip Tripod on Table Purchase Options: WS50(A)= WS50(C)= Tripod on Table Electronic Grip WS50(B)= HTX= Ordinary Grip...
  • Page 7 Accessories: 1. 3.5mm Audio Mic 2. TRS-TRRS Audio Output Cable 3. Micro USB Charging Cable 4. Belt Clip 5. Wind Muff 6. Portable Case 7. User Manual 8. Warranty Card The accessories of each combination include: WS50(A)= WS50(B)= WS50(C)=...
  • Page 8 Components and Instruction Components Lavalier Transmitter(TX) 1.Set Button 2.On-off/Muting Button 3.Working Status Indicator Light 4.Mic/LINE Input Socket/ Reset Hole 5.Micro USB Charging Socket 6.Belt Clip Hole 7.1/4 Mounting Hole Reset Hole: When the product function program is disordered and cannot be adjusted normally or even shut down, you can use appropriate tool to insert the reset hole to realize the function reset...
  • Page 9 Hand-held Transmitter(HTX) 1. Microphone 2. LCD Display 3. Power/CH Setting Button 4. ‘Low Cut/Normal’ Audio Switch 5. AA Battery Tray...
  • Page 10 Receiver 1.Set Button 2.Adjusting Screw 3.On/Off Button 4.Working Status Indicator Light 5.3.5mm Audio Output Socket/Reset Hole 6.Micro USB Charging Socket 7.3.5mm Monitoring Socket 8.Smartphone Clamp 9.1/4 Screw Hole at the bottom 10.1/4 Screw Hole at the top 11.Volume Adjusting Button External light and other equipment can be connecter with 1/4 Screw Hole at the top;...
  • Page 11 Ordinary Grip 1. 1/4 Screw Thread 2. 1/4 Screw Hole at the Bottom...
  • Page 12 Electronic Grip 1. 1/4 Screw Thread 2. Adjustable Screw 3. On-off/Function Button of the Remote Controller 4. Bluetooth Remote Controller 5. 1/4 Screw Hole at the Bottom The bluetooth remote controller can be taken down for remote control; Bluetooth remote controller supports both iOS and Android system;...
  • Page 13 Tripod on Table 1. 1/4 Screw Thread 2. Adjustable Screw 3. Stretchable Tripods 4. Direction Control Switch...
  • Page 14 Screen Display Instruction Lavalier Transmitter(TX): Normal Recording Muting Power Indication Channel Audio Dynamic Display Bar Hand-held Transmitter: Normal Recording Power Indication Channel...
  • Page 15 Receiver: Normal Recording Power Indication Channel Audio Dynamic Display Bar...
  • Page 16 Function Button Instruction Long Press Power On/Off On-off/Muting Button Muting Mode (It is available only when the Short Press screen is lighted up) Lavalier Channel Selection Transmitter Set Button Short Press (It is available only when the screen is lighted up) MIC/LINE Input/ Audio Recording/ Insert the Mic line for audio recording/...
  • Page 17 On-off Button Long Press Power On/Off Channel Selection Short Press Set Button (It is available only when the screen is lighted up) Receiver Audio Output/ Audio Output/ Insert the Mic line for audio output / Reset Hole Reset Insert a small object like a pin for reset OUTPUT Reset Dial the wheel to...
  • Page 18 Indicator Light Instruction Green Light Keeps On Normal Working Status Red Light Keeps On Muting Mode Lavalier Transmitter Red Light Flickers Low-power reminder Green Light Flickers Channel doesn’t match with the transmitter Receiver Green Light Keeps On Channels matches Red Light Flickers Low-power reminder Blue Light Flickers Grip doesn’t match with the smartphone...
  • Page 19: Installation And Usage

    Installation and Usage Lavalier Transmitter(TX): 1.Connect the belt clip to the connection hole 2.Long press the power button to turn on the Lavalier Transmitter Power/Muting Button According to different environment you could short press ‘Power/Muting Button’ to enter the MUTE mode.
  • Page 20 3.Insert the 3.5mm audio input cable into the “Mic” socket “Mic” socket 4.Target the Mic to the audio source and check whether the Lavalier Transmitter is working properly according to the audio display bar on the screen Audio Dynamic Display Bar...
  • Page 21 5. Short press set button to select the channel Channel “set” button...
  • Page 22 Hand-held Transmitter (HTX) : 1. Install two AA batteries into the battery tray according to the positive and negative electrode...
  • Page 23 2. Long Press the power button switch to turn on the hand-held transmitter...
  • Page 24 3. Short press the power button to set the channel same with receiver Green light When the channel become same, the green light will keeps on...
  • Page 25 Receiver: 1.Rotate the four clamps, then adjust the screw to appropriate height, install the phone in the neutral position; connect one end (black) of the audio output cable to OUTPUT socket, the other end (gray TRRS) to mobile phone audio input socket; A 3.5mm headset can be inserted in real-time monitoring socket according to your need...
  • Page 26 2.Long press the power button to turn on the receiver Power Button 3.Short press set button to make channel consistent with the transmitter, and adjust the volume to the optimal status through the volume adjusting wheel volume adjusting wheel Transmitter Channel Receiver Channel When the channel become same, the green light will...
  • Page 27 4. It can be extendable for connection with LED light or other auxiliary equipment 5.Go for the normal audio recording...
  • Page 28 Electronic Grip: 1.Connect the 1/4 screw thread of the electronic grip to the 1/4 screw hole of the receiv- er, then fix the receiver through the adjusting screw Fix the receiver through the adjusting screw...
  • Page 29 2.Long press the power button to turn on the grip Power Button 3.Turn on the bluetooth of the phone, match with the bluetooth named 'Viewflex - H', then you can use your smartphone for recording China Mobile In photo shooting mode, press the remote controller for photo taking;...
  • Page 30 Tripod on Table: 1. Connect the receiver with the tripod through the 1/4 screw thread, fix the receiver by adjusting the adjustable screw, press the direction control switch to adjust the direction receiver fix the through the adjusting screw press the direction control switch to adjust the direction...
  • Page 31 Specification Lavalier Transmitter (TX) : Signal/Noise >65dB 1/4 Wavelength Wire Antenna Antenna Stray Radiation <-60dBc Sound Delay <20ms Audio Distortion <0.5% Audio Input Jack 3.5mm Battery Polymer Lithium Battery 3.7V 1150mAH 8 Hours Endurance Charging Socket Micro USB Dimension 85 x 59 x 16.3 mm Operating Temperature 0℃...
  • Page 32 Hand-held Transmitter (HTX): Signal/Noise >65dB Antenna PCB Antenna Stray Radiation <-60dBc Sound Delay <20ms Audio Distortion <0.5% Battery 2pcs AA Battery Dimension Φ 53.5 (MAX) x 248mm Operating Temperature 0℃ ~ 50℃ Storage temperature -20℃ ~ 60℃ Bluetooth Electronic Grip: Bluetooth Version Effective Distance Battery...
  • Page 33 Receiver: Signal/Noise >65dB Antenna 1/4Wavelength Wire Antenna Receiving Sensitivity -90dBm Sound Delay <20ms Audio Distortion <0.5% Frequency Response 20Hz ~ 18KHz Audio Input Jack 3.5mm Battery Polymer Lithium Battery 3.7V 1150mAH Endurance 8 Hours Charging Socket Micro USB Dimension 104 x 57.6 x 16.3mm 0℃...
