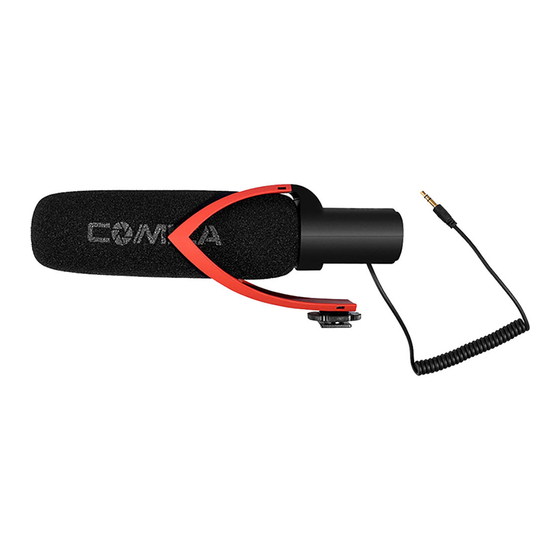

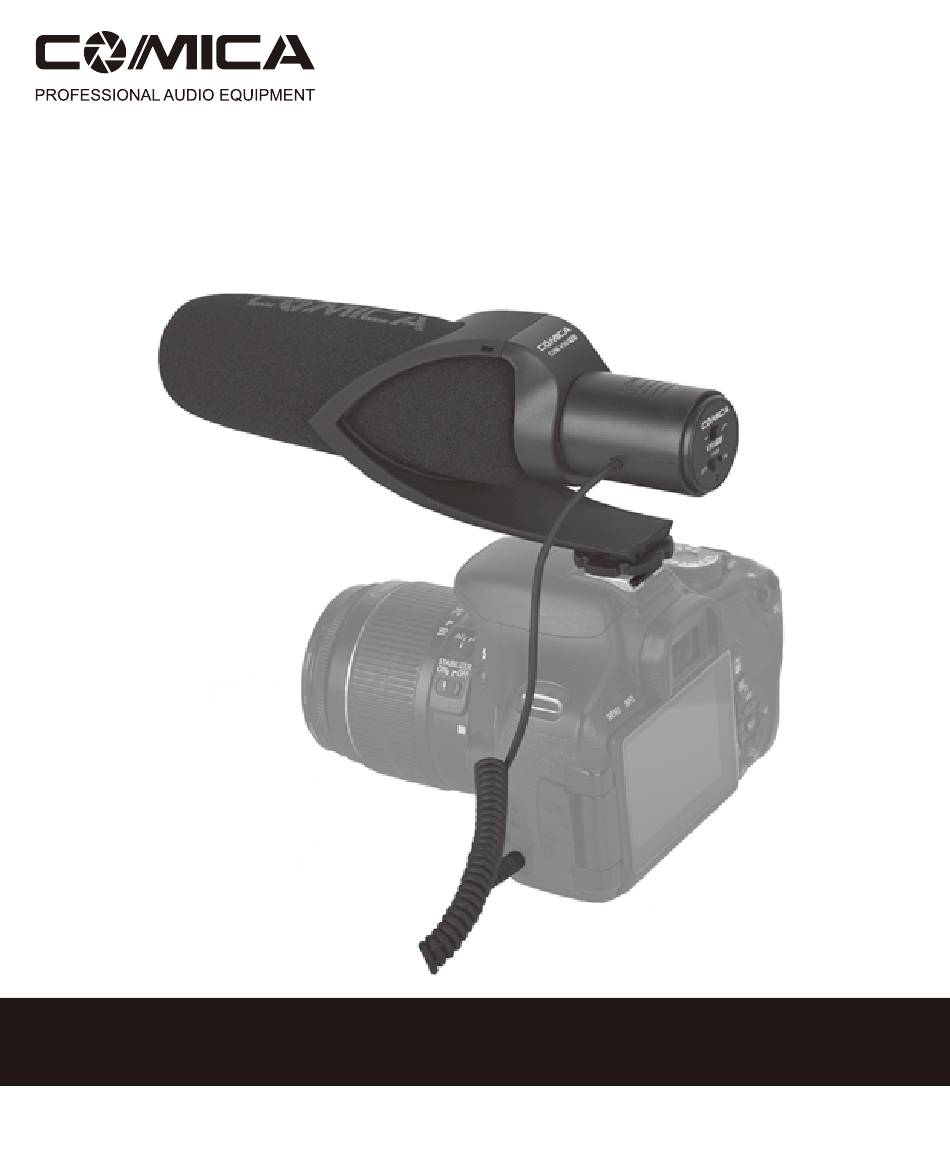

- Page 1 CVM-V30 PRO Directional Condenser Shotgun Video Microphone USER MANUAL...
-
Page 2: Main Features
Foreword Thanks for purchasing COMICA CVM-V30 PRO Cardioid Directional Microphone, the item is specially designed for professional DSLR, Camcorder to work for review, meeting, video,etc. It comes with very sensitive directing and built-in electric circuit design, which takes you extra multi-functions like ‘Adjusted sensitivity’, ‘Low-cut Filter’... -
Page 3: Package Contents
Roaster or air-condition etc Please keep this product in the dry environment Do not expose this device in rain or moist environment Package Contents Mic Body (Including Windscreen) Wind Muff User Manual Warranty Card CVM-V30 PRO Directional Condenser Shotgun Video Microphone USER MANUAL... - Page 4 Components and Instruction Mic Body Mic Body and Windscreen AAA Battery Holder Low-cut Filter Button Power/Sensitivity Button Working Indication Fixing Screw 1/4 Cold-shoe Mount Shock Mount 3.5mm Audio Output Cable...
- Page 5 Installation and Usage 1.Installation 1.1 Put Batteries into Microphone 1.11 Refer to the illustration, Press down the battery door and follow the arrow to push outward, then the battery door is opened...
- Page 6 1.12 Put into the batteries, and then push forward to close the battery door...
- Page 7 1.2 Install the Wind-Muff to Microphone 1.21 Open the Wind Muff from the "INSERT HERE" 1.22 Insert the mic into the Wind Muff...
- Page 8 1.23 Stretch the end of the wind Muff...
- Page 9 1.24 Wrap the end of the mic with the end of Wind Muff...
- Page 10 1.3 Install the Mic onto Camera 1.31 Connect the Mic onto the Camera via cold-shoe, then fasten the fixing screw...
- Page 11 1.32 Connect the 3.5mm audio cable of Mic into the Camera...
- Page 12 2.Operation 2.1 Low-cut Filter function Refer to the illustration, switch the low-cut filter function button to right position, then the function works switch the low-cut filter function button to right position Low-cut Filter Note: Filter background frequencies lower than 80Hz, such as unwanted noise produced by wind, focusing, traffic, etc.
- Page 13 2.3 Power/+10 dB Sensitivity Adjusting Function 2.31 Switch the button to ‘on’ position, then the mic go into the normal voice picking-up status normal voice picking-up 2.32 Switch the button to ‘+10 dB’ position, then the sensitivity can be increased with 10 dB,The recording sound will be increased accordingly increased with 10 dB 2.33 Switch the button to ‘off’...
- Page 14 Specification Specification: Polar Pattern Super Cardioid Frequency Range 40Hz~20,000Hz Sensitivity -33dB±2dB/-23dB±2dB Output Impedance 200 Ω Dynamic Range 100dB Max. SPL 114dB Signal to Noise Ratio 78dB Audio Output 3.5mm Battery AAA 1.5V x 2 Battery Life 200h Weight 114g Dimension 210 x 62 x 80mm...
-
Page 15: Frequency Response
Frequency Response: 20 Hz 1000 10 000 20 000 Polar Pattern : +5.0 -2.0 -2.0 -4.0 -6.0 -8.0 -10.0 -10.0 -12.0 -14.0 -16.0 -18.0 -20.0 -20.0 -22.0 -24.0 -25.0 dB rel. 1V/Pa Frequency: 500 Hz : 1000 Hz : 2000 Hz : 8000 Hz : 14000 Hz :... - Page 16 Email: support@comica-audio.com...
