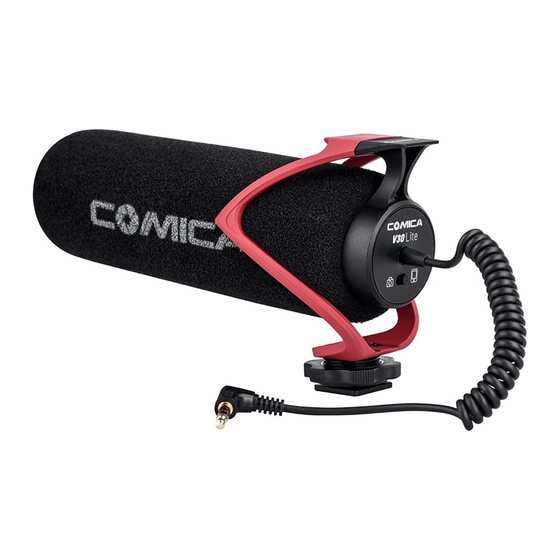

Comica CVM-V30 LITE User Manual

Comica CVM-V30 LITE User Manual

Super cardioid condenser lite microphone
Hide thumbs Also See for CVM-V30 LITE:

Advertisement

Quick Links

CVM-V30 LITE
Super Cardioid Condenser Lite Microphone
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CVM-V30 LITE and is the answer not in the manual?

Questions and answers

Summary of Contents for Comica CVM-V30 LITE

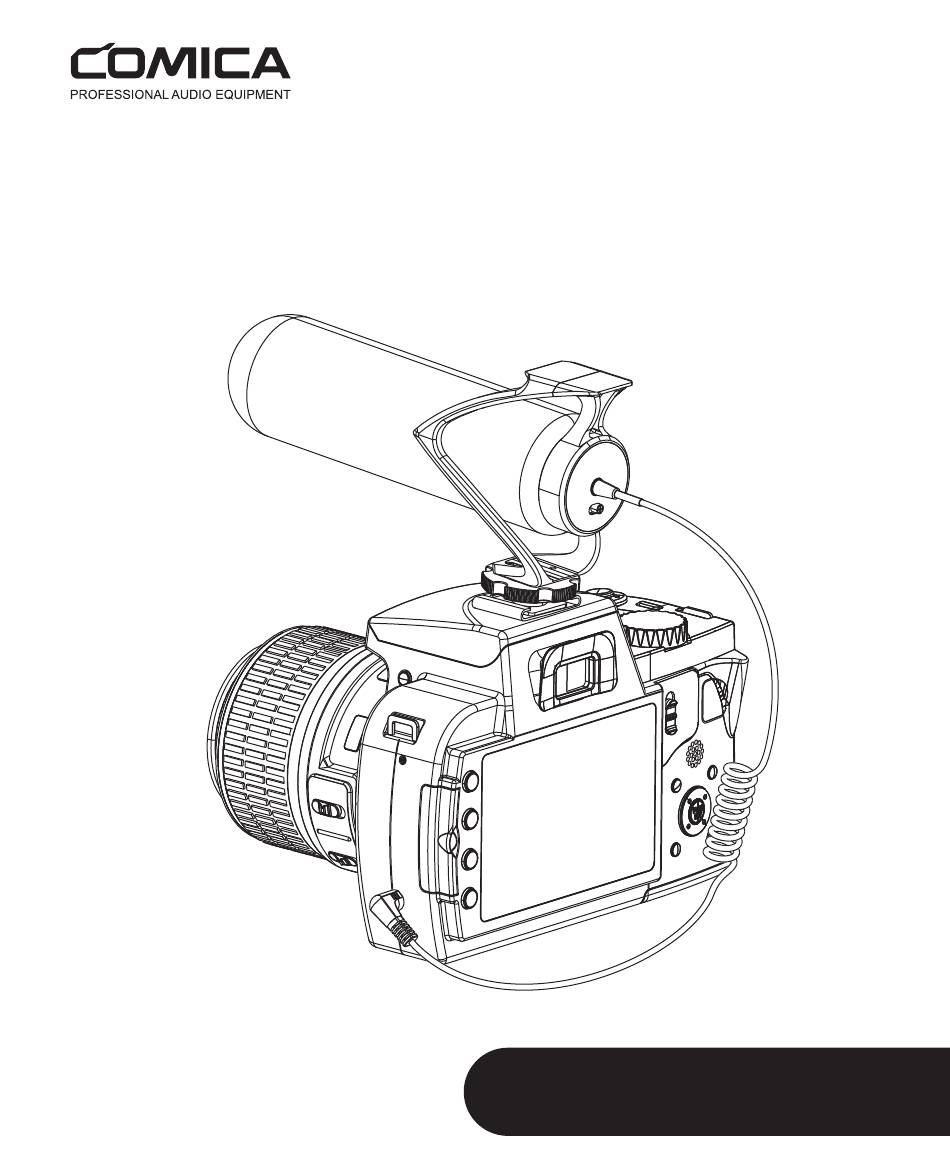

  • Page 1 CVM-V30 LITE Super Cardioid Condenser Lite Microphone USER MANUAL...
  • Page 3 Foreword Thanks for purchasing COMICA CVM-V30 Lite Super-cardioid condenser lite microphone. Notice When used with USB interface smartphones, please purchase corresponding audio adapter cable. For the Android system smartphone, the microphone works well in default audio mode, but default video mode will happen with incompatibility trouble while working with some smartphone;...
  • Page 4: Main Features

    .No Battery Drive Design .Super Low Noise Electronics .Super Anti-interference .Cold-shoe Design with 1/4 Thread at the Bottom .Compact and Light, Easy to Carry Packing List CVM-V30 LITE Super Cardioid Condenser Lite Microphone USER MANUAL Microphone User Manual Warranty Card...
  • Page 5: Components Introduction

    Components Introduction Microphone Microphone Interference Tube Shock Mount Locking Screw Cold-shoe Bracket 1/4 Screw Hole Smartphone/Camera Switch Button 3.5mm Audio Output Cable...
  • Page 6: Installation And Usage

    Installation and Usage Use with Camera Attach the microphone cold shoe bracket to the camera, fasten the locking screw; Connect the microphone's 3.5mm audio output cable to camera; Set the smartphone/camera switch button to the camera icon. Set the smartphone/camera switch button to the camera icon...
  • Page 7 Use with Phone Mount microphone cold shoe bracket to accessories with cold-shoe interface (please purchase the accessory by yourself), fasten the locking screw; Connect the microphone's 3.5mm audio output cable to smartphone; Set the smartphone/camera switch button to the smartphone icon.
  • Page 8 Tech Parameters...
  • Page 9 Polar Pattern Super Cardioid Frequency Range 20Hz ~ 20kHz Sensitivity -33dB±2dB Output Impedance 2.2 k 70dB Equivalent Noise 24dBA Maximum SPL 130dB Dynamic Range 106dB Output Type 3.5mm TRRS Plug Net Weight Dimension 160 * 51 * 86mm Operating Temperature 0 ~ 50 ℃...
  • Page 11 CVM-V30 LITE 超心型指向电容式麦克风(轻简版) 用户使用手册...
  • Page 13 前 言 感谢您购买科唛COMICA CVM-V30 LITE轻简版超心型指向电容式 麦克风 注意事项 当搭配USB接口手机使用时,请单独购买相对应的音频转接器 配合Android(安卓)系统的手机使用时,录音模式下均可正常工 作,视频模式下部分手机会出现不兼容情况(此时建议使用第三方 视频软件, 如:抖音,快手等) 配合iOS系统手机使用时,在所有录音模式、视频模式以及第三方 视频软件下均可正常使用 使用时请远离热源或干扰源 使用时请避免掉落,碰撞或重击 请勿在下雨或潮湿环境环境中使用,否则会有短路的危险...
  • Page 14 产品主要功能 .超心型指向 .超低底噪 .支持相机/手机 .超强屏蔽功能 .独创的减震架设计 .冷靴底部1/4螺孔设计 .无电池驱动设计 .轻便易携 包装清单 CVM-V30 LITE Super Cardioid Condenser Lite Microphone USER MANUAL 麦克风 说明书 保修卡...
  • Page 15 部件介绍及说明 麦克风 干涉管 减震支架 转牙锁盘 冷靴底座 底部1/4延展螺孔 手机/相机转换开关 3.5mm音频输出线...
  • Page 16 安装与使用 搭配相机使用 将麦克风冷靴底座安装至相机,拧紧锁盘至固定,并连接3.5mm音 频线至相机音频接口将手机/相机转换开关拨至左侧相机标识处。 拨至左侧相机标识...
  • Page 17 搭配手机使用 将麦克风冷靴底座安装至带冷靴接口的配件,拧紧锁盘至固定,并 连接3.5mm音频线至手机音频接口将手机/相机转换开关拨至右侧手 机标识处(需自行购买带冷靴接口的配件)。 拨至右侧手机标识处...
  • Page 18 技术参数...
  • Page 19 指向性 超心型 20Hz ~ 20kHz 频响范围 -33dB±2dB 灵敏度 2.2 k 输出阻抗 70dB 信噪比 24dBA 等效噪声 130dB 最大声压级 106dB 动态范围 3.5mm TRRS 接头 输出类型 产品重量 160 x 51 x 86mm 产品尺寸 0 ~ 50℃ 工作温度 -20℃ ~ 60℃ 存储温度...
