Summary of Contents for Comica CVM-VM10II

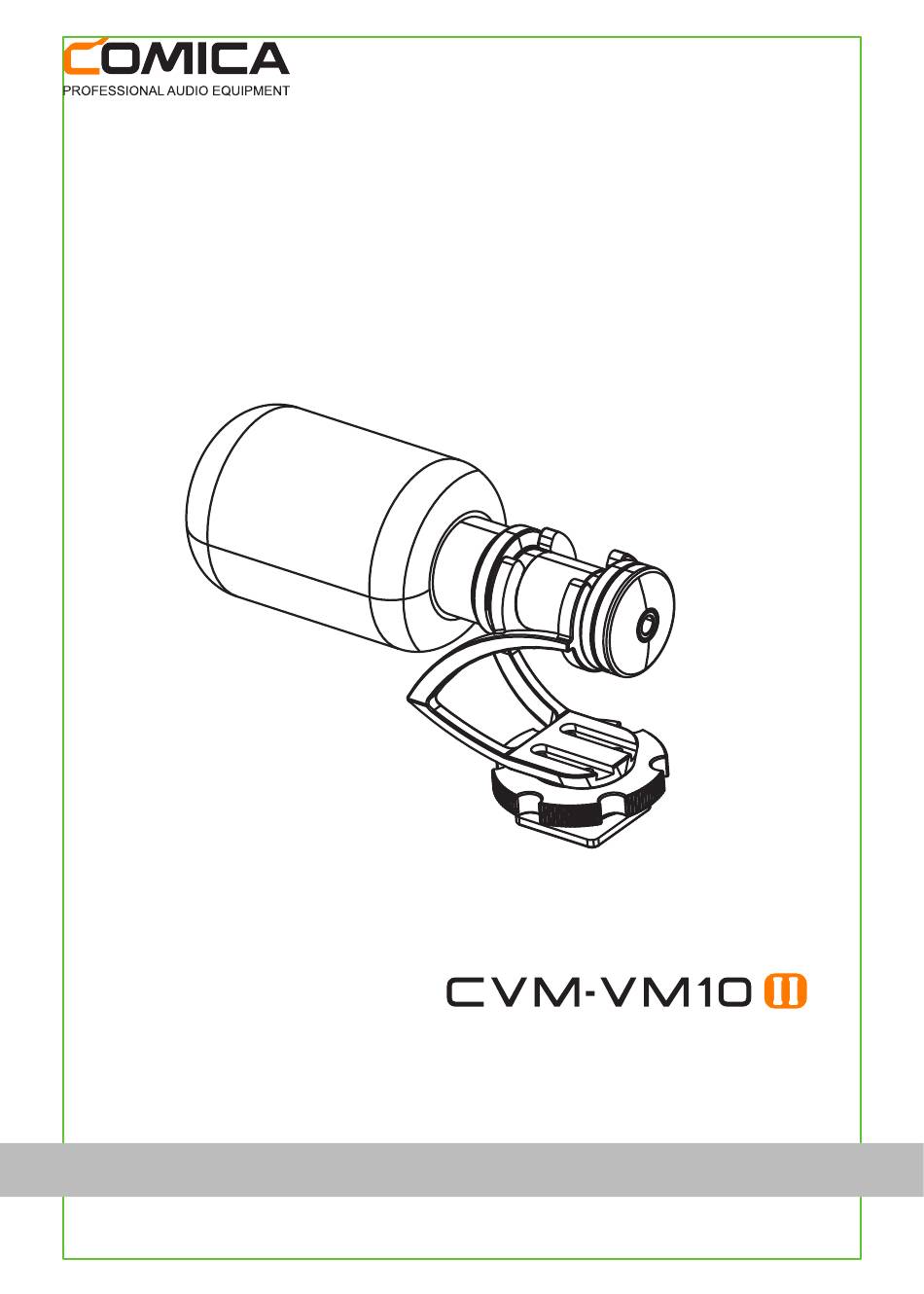

- Page 1 Micro Cardioid Condenser Shotgun Microphone User Manual...
-
Page 3: Main Features
Foreword Thanks for purchasing COMICA CVM-VM10II Micro Cardioid Condenser Shotgun Microphone. Main Features . Cardioid Pattern, Universal for Camera and Smartphone . No Power Drive, Convenient for Use . Full Metal Material Construction and Super Shielding . Professional Shock Mount... - Page 4 Notice When working with USB devices, it is necessary to purchase relevant audio adapter cable by yourself. For the smartphone with Android system, the Mic works well in audio mode, it may not be compatible with most of the smartphones in video mode (Then we suggest you to try the 3rd party APP , such as Filmic Pro, Proshot, ect.).
-
Page 5: Packing List
Packing List Microphone Shock Mount 3.5mm TRS-TRS Audio Cable 3.5mm TRS-TRRS Audio Cable Windscreen Wind Mu User Manual Carry Case User Manual Warranty Card... - Page 6 Installation and Operation Install the microphone on the shock mount as shown below...
- Page 7 Work with camera: Install the CVM-VM10II to the camera via cold shoe mount, then connect the CVM-VM10II and camera through 3.5mm TRS-TRS audio cable Work with smartphone: Install the CVM-VM10II and smartphone to the smartphone holder, then connect the CVM-VM10II and smartphone through 3.5mm TRS-TRRS...
-
Page 8: Specification
Specification 1.Frequency Response 2.Polar Pattern... - Page 9 3.Technology Parameters Polar Pattern Cardioid Frequency Range 60Hz~20kHz Signal / Noise >75dB Maximum SPL >105dB Sensitivity -33dB±2dB Operation Voltage 1V~5V DC Output Interface 3.5mm Dimension Φ21mm x 85mm Weight 34.2g Working Temperature 0~50℃...
- Page 11 迷你心型指向电容枪式麦克风 使用说明书...
- Page 13 前 言 感谢您购买科唛CVM-VM10II迷你心型指向电容枪式麦克风。 产品主要功能 .心型指向，适用于相机和手机 .无电驱动，方便易用 .全金属结构，超强屏蔽 .专业减震支架 .配备防风毛及防风棉...
- Page 14 注意事项 搭配USB设备使用时，请自行配置相关音频转接线 配合Android（安卓）系统的手机使用时，录音模式下均可正常工 作，视频模式下大多数手机会出现不兼容情况（此时建议使用第 三方视频软件，如：抖音，快手等） 配合iOS系统手机使用时，在所有录音模式、视频模式以及第三方 视频软件下均可正常使用...
- Page 15 包装清单 麦克风 减震架 3.5mm TRS-TRS音频连接线 3.5mm TRS-TRRS音频连接线 防风棉 防风毛 User Manual 便携包 说明书 保修卡...
- Page 16 安装方法 如下图示将麦克风安装到减震架上...
- Page 17 搭配相机使用: 通过冷靴座把CVM-VM10II安装到相机上，再通过3.5mm TRS-TRS音频连 接线连接CVM-VM10II与相机 搭配手机使用: 把CVM-VM10II与手机安装到支架上，再通过3.5mm TRS-TRRS音频连接线 连接CVM-VM10II与手机（支架请自行购买） TRS 插头 TRRS 插头 注意连接麦克风一端为TRS插头，连接手机一端为TRRS插头...
- Page 18 规格参数 1.频率响应 2.指向性图...
- Page 19 3.性能参数 心型 指向性 频响 60Hz~20kHz 信噪比 >75dB 最大声压级 >105dB 灵敏度 -33dB±2dB 工作电压 1V~5V DC 输出接口 3.5mm 尺寸 Φ21mm x 85mm 净重 34.2g 工作温度 0~50℃...
- Page 20 Tel: 400-8303-981 Email: support@comica-audio.com...
