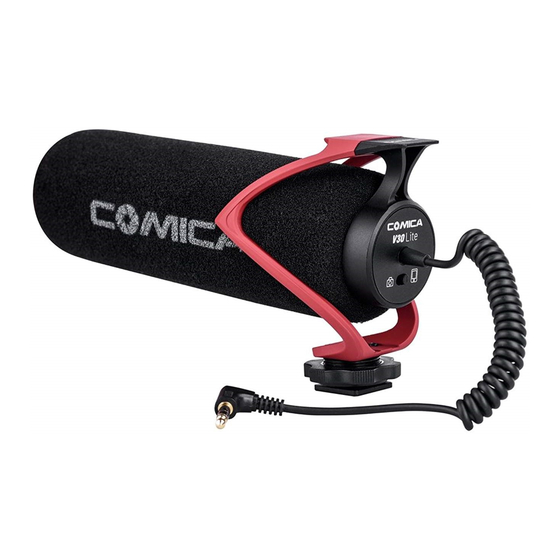

Comica CVM-V30 LITE User Manual

Comica CVM-V30 LITE User Manual

Super cardioid condenser lite microphone
Hide thumbs Also See for CVM-V30 LITE:

Advertisement

Quick Links

CVM-V30 LITE
Super Cardioid Condenser Lite Microphone
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CVM-V30 LITE and is the answer not in the manual?

Questions and answers

Summary of Contents for Comica CVM-V30 LITE

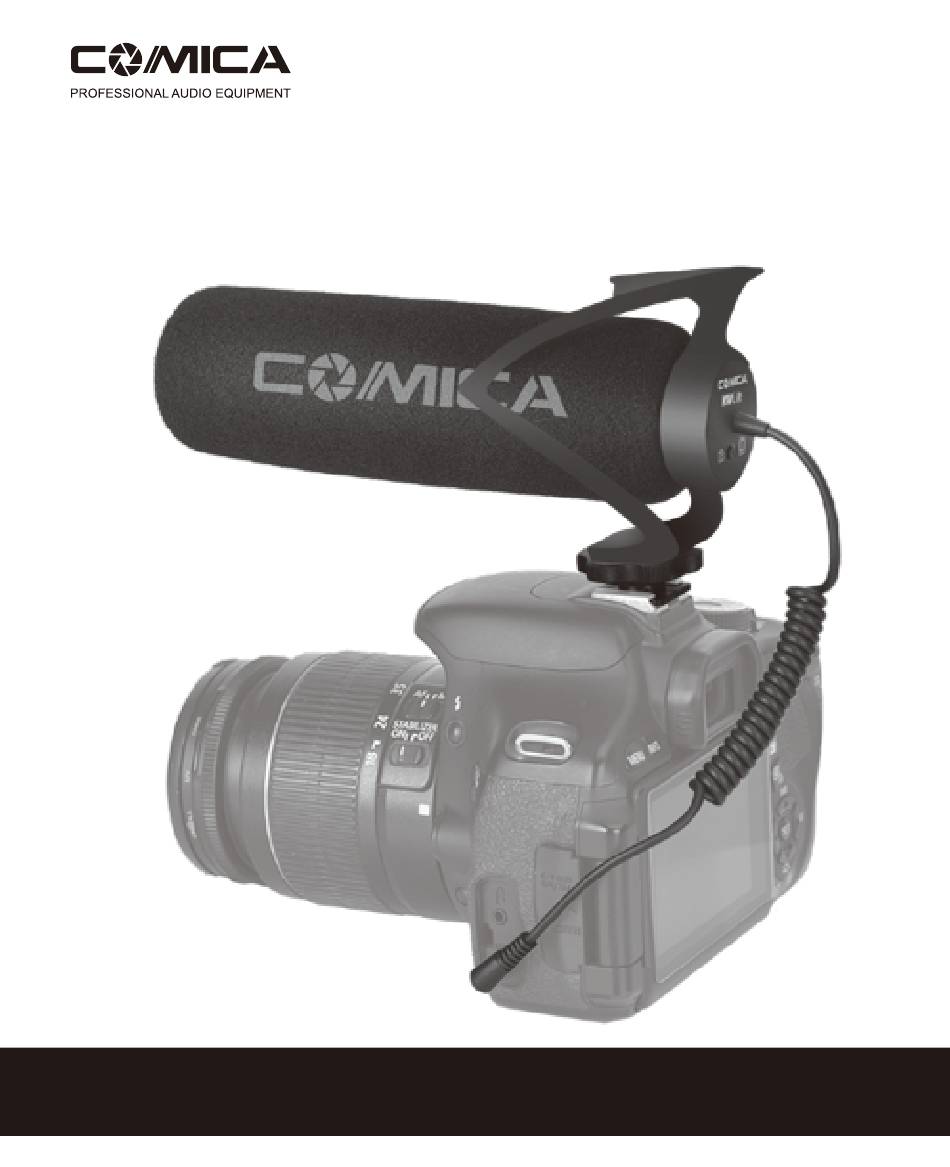

  • Page 1 CVM-V30 LITE Super Cardioid Condenser Lite Microphone USER MANUAL...
  • Page 3 Foreword Thanks for purchasing COMICA CVM-V30 LITE Super-cardioid condenser lite microphone. Comica CVM-V30 LITE Super-cardioid condenser lite microphone, suit for camera, smartphone. Meanwhile the Microphone is designed with excellent shock mount, no battery drive, super low noise electronics, super anti-interference, cold-shoe design with 1/4 thread at the bottom, compact and light.
  • Page 4 Notice This product is compatible with both IOS and Android system, and when used with the iPhone 7 or above version, you need to use the original adapter cable. For the IOS system smartphone (iPhone), the Mic works well either in Audio or Video mode.
  • Page 5: Main Features

    Main Features .Super-Cardioid Polar Pattern .Support Smartphone & Camera .Excellent Shock Mount .No Battery Drive Design .Super Low Noise Electronics .Super Anti-interference .Cold-shoe Design with 1/4 Thread at the Bottom .Compact and Light, Easy to Carry Support Low Self-noise Super Super-Cardioid Excellent Camera&Smartphone...
  • Page 6: Components Introduction

    Components Introduction Microphone Microphone Interference Tube Shock Mount Locking Screw Cold-shoe Bracket 1/4 Screw Hole Smartphone/Camera switch 3.5mm Audio Output Line...
  • Page 7 Installation and Operation 1.Use with Camera 1.1 Attach the microphone cold shoe bracket to the camera, fasten the Locking Screw .
  • Page 8 1.2 Connect the microphone’s 3.5mm audio output line and Camera.
  • Page 9 1.3 Set the smartphone/camera switch to the left camera mark. switch to the left camera mark...
  • Page 10 2. Use with Smartphone 2.1 Mount microphone cold shoe bracket to accessories with cold shoe interface (recommended VF-H1 ), fasten the Locking Screw.
  • Page 11 2.2 Connect the microphone’s 3.5mm audio output line and smartphone.
  • Page 12 2.3 Set the smartphone/camera switch to the right smartphone mark. switch to the right smartphone mark...
  • Page 13 Tech Parameters Polar Pattern Super Cardioid Frequency Range 40Hz~20KHz Output Impedance 2.2kΩ Max.SPL >100dB Sensitivity -34dB±3dB Signal to Noise Ratio >68dB Weight Dimension 160*50.8*86mm...
  • Page 15 CVM-V30 LITE 超心型指向电容式麦克风轻简版 用户使用手册...
  • Page 17 前 言 感谢您购买科唛COMICA CVM-V30 LITE轻简版超心型指向电容式麦 克风。 此产品采用超心型指向技术,可搭配手机,相机使用。同时该麦 克风拥有独创的减震架设计,无需电池驱动,超低底噪,超强屏 蔽功能,冷靴底座1/4螺孔设计,轻便易携,让录音无所顾虑! 使用前请认真阅读此使用说明书,本产品在出厂时已进行精密校 准,请勿自行组装拆卸零部件,否则不予保修! 注意事项 本产品兼容IOS和Android系统,搭配iPhone7及此型号以上手机使 用时,需使用原厂转接线 该麦克风配合IOS系统(IPHONE)的手机使用时,在录音及视频录 模式下均可正常工作 该麦克风配合ANDROID(安卓)系统的手机使用时,录音模式下可 正常工作;视频模式下,需下载第三方软件配合使用(如:乐秀、 美拍、小影等) 使用时请远离热源或干扰源 使用时请避免掉落,碰撞或重击 请勿在下雨或潮湿环境环境中使用,否则会有短路的危险...
  • Page 18 产品主要功能 .超心型指向 .超低底噪 .支持相机/手机 .超强屏蔽功能 .独创的减震架设计 .冷靴底部1/4螺孔设计 .无电池驱动设计 .轻便易携 支持相机/手机 超低底噪 超强抗干扰 超心型指向 独创减震架 包装清单 麦克风 说明书 保修卡...
  • Page 19 部件介绍及说明 麦克风 干涉管 减震支架 转牙锁盘 冷靴底座 底部1/4延展螺孔 手机/相机转换开关 3.5mm音频输出线...
  • Page 20 安装与使用 1.搭配相机使用 1.1 将麦克风冷靴底座安装至相机,拧紧转牙锁盘至固定...
  • Page 21 1.2 将麦克风3.5mm音频输出线与相机相连...
  • Page 22 1.3 将手机/相机转换开关拨至左侧相机标识处 拨至左侧相机标识...
  • Page 23 2. 搭配手机使用 2.1将麦克风冷靴底座安装至带冷靴接口的配件(推荐VF-H1), 拧紧转牙锁盘至固定...
  • Page 24 2.2 将麦克风3.5mm音频输出线与手机相连...
  • Page 25 2.3 将手机/相机转换开关拨至右侧手机标识处 拨至右侧手机标识处...
  • Page 26 技术参数 指向性 超心型 频响范围 40Hz~20KHz 输出阻抗 2.2 kΩ 最大SPL >100dB 灵敏度 -34dB±3dB 信噪比 >68dB 产品重量 产品尺寸 160*50.8*86mm...
  • Page 28 Email: support@comica-audio.com...
