Comica CVM-VM10-K1 User Manual

Comica CVM-VM10-K1 User Manual

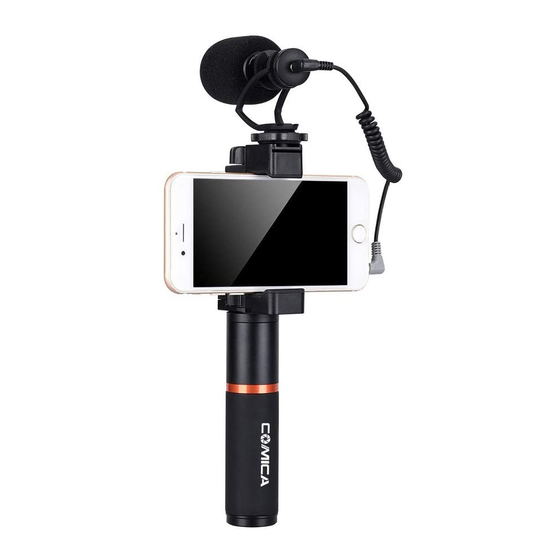

Mini & flexible smartphone video kit

Advertisement

Quick Links

CVM-VM10-K(1,2,3,4)
Mini & Flexible Smartphone Video Kit
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CVM-VM10-K1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comica CVM-VM10-K1

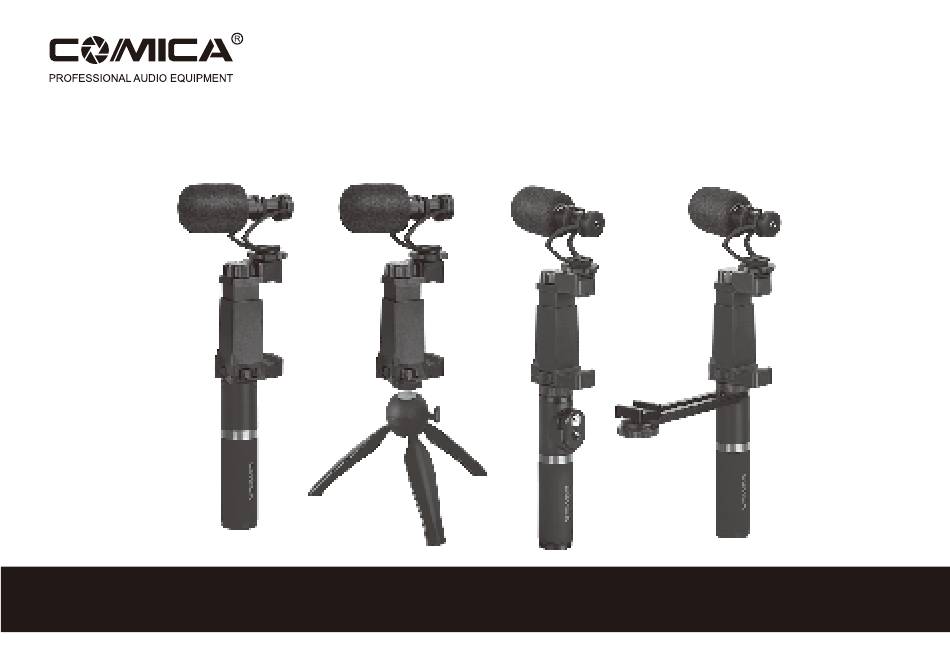

  • Page 1 CVM-VM10-K(1,2,3,4) Mini & Flexible Smartphone Video Kit User Manual...
  • Page 2 Foreword Thanks for purchasing Comica Multi-functional Smartphone Video Kit, it's designed in many di erent combinations for your versatile use, and integrated into multi-functions like: 'Bluetooth One-touch Control'、 ‘Exiquisite Smartphone Clamp’、 'Extensible with Flexible Combinations' etc., which can make your shooting more professional.
  • Page 3: Main Features

    Main Features . Detachable Electronic Bluetooth Remote Control for One-touch Video Shooting; . Compatible with both IOS and Android System; . Exquisite Smartphone Clamp, Easy to Install; . Extensible with Flexible Combination; . Fit for External Accessories like Microphones, LED lights, etc; .
  • Page 4 Package Contents CVM-VM10-K1 Package Contents : 1. Microphone 2. Flexible Smartphone Clamp 3. Ordinary Handle Grip (1/4 screw) 4. TRS-TRRS Audio Output Cable for Smartphone 5. WindMu 6. User Manual 7. Warranty Card CVM-VM10-K(1,2,3,4) Mini & Flexible Smartphone Video Kit...
  • Page 5 CVM-VM10-K2 Package Contents : 1. Microphone 2. Flexible Smartphone Clamp 3. Tripod 4. TRS-TRRS Audio Output Cable for Smartphone 5. WindMu 6. User Manual 7. Warranty Card CVM-VM10-K(1,2,3,4) Mini & Flexible Smartphone Video Kit User Manual...
  • Page 6 CVM-VM10-K3 Package Contents : 1. Microphone 2. Flexible Smartphone Clamp 3. Electronic Handle Grip 4. Handle Grip Screw 5. TRS-TRRS Audio Output Cable for Smartphone 6. WindMu 7. User Manual 8. Warranty Card CVM-VM10-K(1,2,3,4) Mini & Flexible Smartphone Video Kit User Manual...
  • Page 7 CVM-VM10-K4 Package Contents : 1. Microphone 2. Flexible Smartphone Clamp 3. Ordinary Handle Grip(3/8 Screw Hole) 4. Handle Grip Screw 5. Connecting Rod 6. Cold Shoe 7. Connecting Screw 8. TRS-TRRS Audio Output Cable for Smartphone 9. Windmu 10. User Manual 11.
  • Page 8 Installation Instructions Flexible Smartphone Clamp: 1. Install your smartphone onto the flexible smartphone clamp...
  • Page 9 2. Connect the microphone to the Smartphone clamp...
  • Page 10 3. Connect the microphone to your smartphone with TRS-TRRS audio output cable 1. Please note that you should connect Cable's TRS end to the microphone, and Cable's TRRS end to the smartphone. Otherwise it'll not work. 2. While you work with the smartphone with Lightning or Type-C interface, you should buy(3.5mm-Lightning, 3.5mm-Type-C) and connect the cable adapter separately.
  • Page 11: Handle Grip

    Handle Grip CVM-VM10-K1 Kits : Install the flexible smartphone clamp to the ordinary handle Grip (with 1/4 Screw ), then fixing them through smartphone clamp locking screw. Smartphone Clamp Locking Screw...
  • Page 12 CVM-VM10-K2 Kits : Install the flexible smartphone clamp to the tripod, then fixing them through smartphone clamp locking screw, and adjust to the suitable angle for shooting. Smartphone Clamp Locking Screw Tripod Adjusting Screw...
  • Page 13 CVM-VM10-K3 Kits : Install the smartphone clamp to the electronic handle grip, lock them through smartphone locking screw. Smartphone Clamp Locking Screw...
  • Page 14 CVM-VM10-K4 Kits : 1. Install the cold shoe, connecting thread screw,ordinary thread screw and connecting rod to ordinary handle grip(with 3/8 Screw ) 1/4 Screw 3/8 Screw...
  • Page 15 2. Install the flexible smartphone clamp to ordinary handle grip(with 3/8 Screw ), then lock them through smartphone clamp screw Smartphone Clamp Locking Screw...
  • Page 16 Bluetooth Remote control Instruction First Step: Start the Bluetooth Remote Control Press and hold for 2 seconds to start the Bluetooth remote control. When the blue light flickers, find and connect the ViewFlex-H on the smartphone Bluetooth device. If it is connected, the blue light will go out; if it is not connect- ed, the blue light will flicker once every second...
  • Page 17 Second Step: Functional operation Photo Mode: 1. (In the Bluetooth remote control state) When the phone is connected to the ViewFlex-H Bluetooth device, adjust the smartphone to the photo mode. At this time, the Bluetooth remote control button can replace the smartphone photo button.
  • Page 18 2. Press and hold the Bluetooth remote control button for three seconds, when the green light is on, release the button, and the green light flickers 3 times, the smartphone enters the automatic continuous shooting mode (The continuous shooting time lasts for 3 seconds, and the number of photos is subject to the smartphone) Continuous shooting function is only used for rear camera...
  • Page 19 Video Mode: Enter the smartphone video mode, short press the Bluetooth remote control button, the smartphone starts recording, press the Bluetooth remote control button again, then the green light flickers 3 times and the video recording ends Bluetooth Disconnection: 1. Automatic disconnect After 10 minutes of no operation, Bluetooth remote control automatically turns o .
  • Page 20: Frequency Response

    Specification Microphone Polar Pattern Cardioid Frequency Range 100Hz~20kHz Sensitivity -33dB ±2dB Signal/Noise >75dB Maximum SPL >105dB Operating Voltage 1.0V~10V Polar Pattern Frequency Response 0° -2.0 -10.0 -20.0 90° 270° 125 Hz: 250 Hz: 500 Hz: 1000 Hz: 2000 Hz: 4000 Hz: 180°...
  • Page 21 Bluetooth Remote Version E ective Distance Battery CR2032 x 1 Power o automatilly while no operation 10 Minutes Size 35x25x8.4mm...
  • Page 22 The COMICA logo is trademark which is registered and owned by Commlite Technology Co.,Ltd Email: support@comica-audio.com...

This manual is also suitable for:

Cvm-vm10-k2Cvm-vm10-k3Cvm-vm10-k4
