- Page 1 Sauter GmbH Ziegelei 1 Phone : +39- [0]445 492313 D-72336 Balingen Fax: +39- [0]445 491365 e-mail: info@bilancekern.it Internet: www.bilancekern.it Instruction manual mechanical force gauge SAUTER FA Version 2.0 04/2020 PROFESSIONAL MEASURING FA-BA-e-2020...
-
Page 2: Table Of Contents
Congratulations on the purchase of a digital force measuring device with internal measuring cell from SAUTER. We hope you will enjoy your quality measuring device with a wide range of functions. Please do not hesitate to contact us if you have any questions, requests or suggestions. -
Page 3: Introduction
If any damage is evident, please notify SAUTER GmbH immediately. The FA can measure tensile and compressive forces very accurately and it is easy to operate. It can be held in the hand for measurements or mounted on a suitable test stand. -
Page 4: Scope Of Delivery

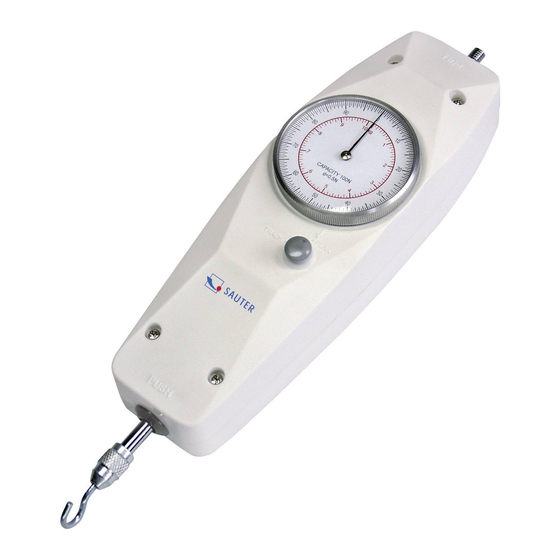

2 Scope of delivery • SAUTER FA • Transport case • Standard attachments, as shown Direction force (pull) Rotatable display Pointer Switchover Track / Peak Direction force Force transducer (press) Explanation: Track = continuous measurement Peak= Peak value acquisition FA-BA-e-2020... -
Page 5: Working Conditions
(Max) of the instrument or that do not act axially on the instrument via the force transducer; or if high pulse forces act on the measuring instrument. Avoid twisting the instrument, as this could cause the instrument to break and in any case reduce the measuring accuracy. FA-BA-e-2020... - Page 6 • The measuring instrument may only be used in accordance with the described specifications. • SAUTER must give written approval for any other areas of use / applications. • Warranty Warranty expires in the event of •...
-
Page 7: Technical Drawings
Information on the monitoring of measuring instruments and the necessary test weights is available on the SAUTER homepage (www.bilancekern.it). IMPORTANT Observe the information in the operating instructions: Read this operating manual carefully before commissioning, even if you already have experience with SAUTER measuring instruments. 8 Technical drawings FA-BA-e-2020...
