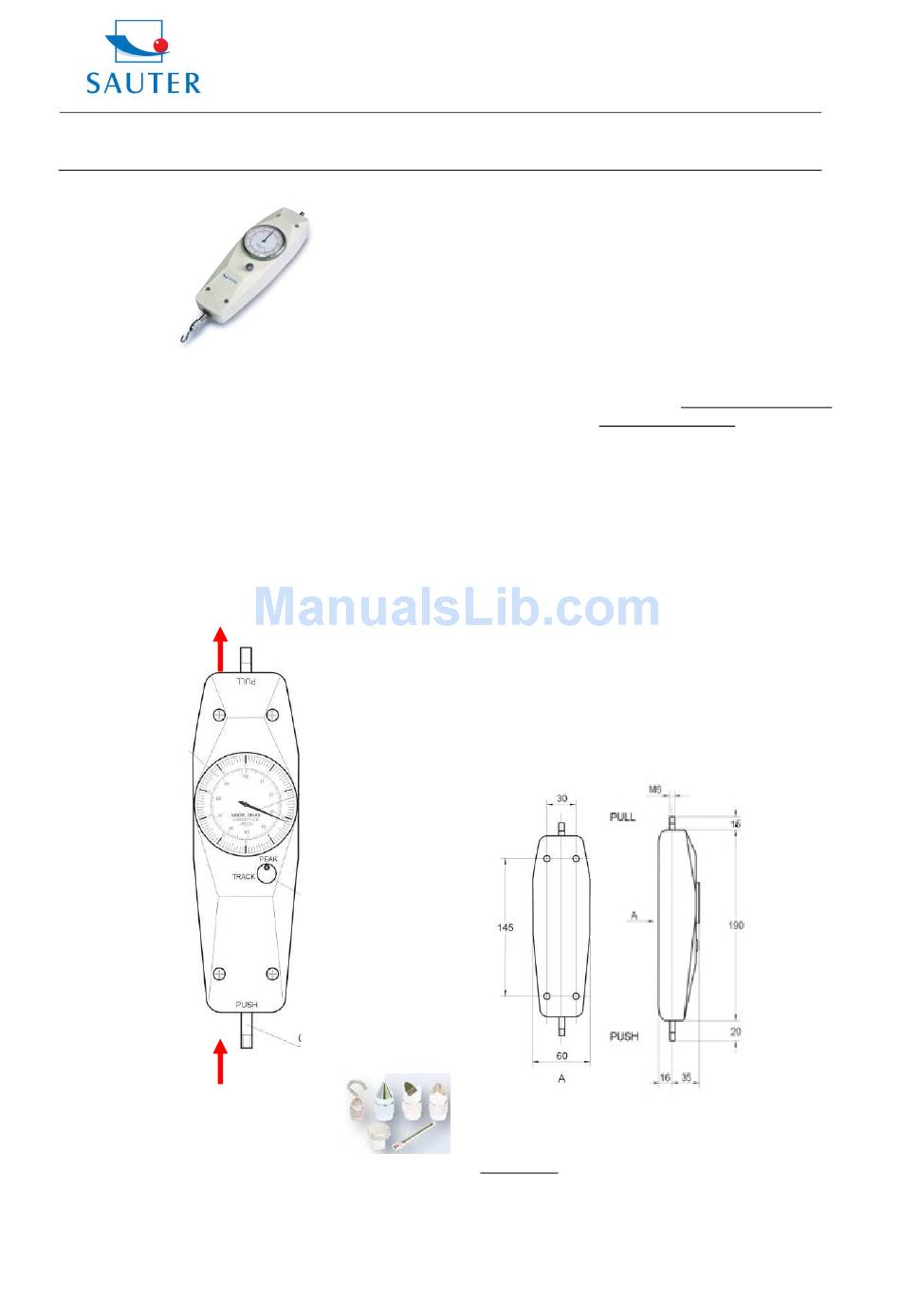

sauter FA Instruction Manual

Thank you for buying a SAUTER force gauge. We hope
you are pleased with your high quality force gauge with its
big functional range. If you have any queries, wishes or
helpful suggestions, do not hesitate to call our service
number.
1. Scope of Delivery
- SAUTER FA
- Carrying Case
- Standard Attachments as shown below, 8 x M3
Screws
Direction
(Pull)
Turnable Display
Direction
(Push)
Explanation:
Track = continuous measuring
Peak = Capture of the Maximum value
2. Working Conditions
10°C to 30°C / 15% up to 80% humidity
FA-BA-e-1212
Sauter GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Instruction Manual
FA
Finger
Switch
Track / Peak
Force Sensor
Tel: +49-[0]7433- 9933-199
Fax: +49-[0]7433-9933-149
Internet: www.Kern-sohn.com
3. Technical Data
- Accuracy: ± 1 % of capacity
- Weight: 560 g
- Dimensions in mm: 230 x 60 x 50
4. Measurement
Screw on a capable attachment, included in the case
Track or Peak: Switch while pressing and turning the
knob at the same time, to get the right
position
Tare Funktion: Press knob once to get into Peak-
Position.
Zero Setting: Just turn the display
Advice: When Force Gauge is not in use,
leave it in Peak Position; this will
extend life of the spring measurement
system
5. Adaptation to Test Stands
Onto all test stands with four M3 screws. The backside
body has to be removed.
6. Drawings
Dimensions in mm
7. Warning
Intended use
The instrument you have acquired serves to determine the
measuring value of the material to be measured. It is
intended to be used as a "non-automatic" instrument, i.e.
the material to be measured is manually and carefully
1
