- Page 1 User Manual iDAQ-815 8-ch RTD Industrial DAQ Module...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 4 Document Feedback To assist us with improving this manual, we welcome all comments and constructive criticism. Please send all such feedback in writing to support@advantech.com. Packing List Before system installation, check that the items listed below are included and in good condition.
- Page 5 In accordance with IEC 704-1:1982 specifications, the sound pressure level at the operator's position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. iDAQ-815 User Manual...
- Page 6 Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70dB(A) oder weiger. Haftungsausschluss: Die Bedienungsanleitungen wurden entsprechend der IEC- 704-1 erstellt. Advantech lehnt jegliche Verantwortung für die Richtigkeit der in die- sem Zusammenhang getätigten Aussagen ab. iDAQ-815 User Manual...
- Page 7 Do not touch any components on the CPU card or other cards while the PC is powered on. Disconnect the power before making any configuration changes. A sudden rush of power after connecting a jumper or installing a card may damage sensitive electronic components. iDAQ-815 User Manual...
- Page 8 User Manual viii...
-
Page 9: Table Of Contents
Contents Chapter Start Using iDAQ-815 ......1 Overview ....................2 Product Overview..................2 Figure 1.1 Overview of iDAQ-815..........2 Product Features..................2 1.3.1 Power Input................... 2 1.3.2 BoardID..................2 1.3.3 Plug and Play Device..............2 Driver Installation ..................3 Figure 1.2 XNavi Installation Interface......... 3 Software Utility .................. - Page 10 RTD Input....................18 General ....................19 Function Block ..................19 Appendix B System Dimensions......21 System Dimensions ................22 iDAQ-815 User Manual...
-
Page 11: Chapter 1 Start Using Idaq-815
Chapter Start Using iDAQ-815... -
Page 12: Overview

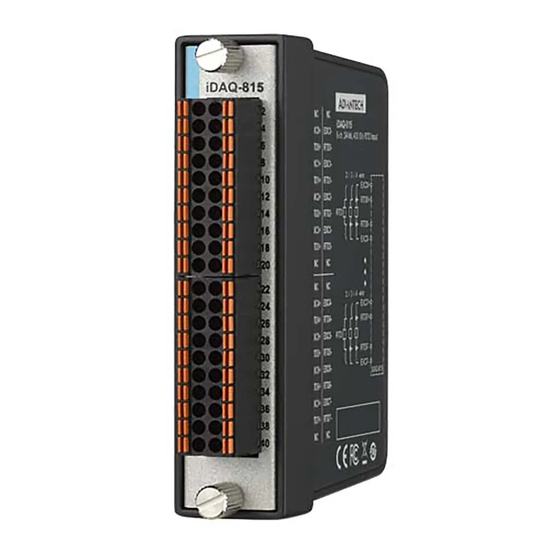

This chapter provides an overview of Advantech industrial data acquisition (iDAQ) modules for iDAQ-815, ranging the product lineups, features and accessories. iDAQ-815 is an 8-channel RTD input module. It features 24-bit resolution, 400S/s sampling rate, and supporting most of popular RTD materials. It's suitable for RTD measurement with high accuracy requirements. -
Page 13: Driver Installation
All these software packages are available on the Advantech website: http://www.advantech.com/. The Advantech Navigator is a utility that allows you to set up, configure and test your device, and later store your settings in a proprietary database. -
Page 14: Application Software Daqnavi Mcm
FPGA Code Update The FPGA could also be updated via the interface in Navigator. However, it isn’t nor- mal to move on to an FPGA update. Advantech strongly suggests you to consult your technical support before starting an FPGA update. -
Page 15: Chapter 2 Installation Guide
Chapter Installation Guide... -
Page 16: Initial Unpacking Check
Below are the steps to insert the iDAQ modules into the iDAQ chassis. Insert the module and follow the guide rail to the end Screw the two thumb screws tight onto the chassis Figure 2.1 iDAQ Module Install into iDAQ Chassis iDAQ-815 User Manual... -
Page 17: Signal Connection And Pin Assignment
2.3.2 3-Wire RTD Input Signal Connection Figure 2.3 shows 3-wire RTD input signal connection. Connect single-lead end of the RTD to RTD+ terminal and the other two leads to RTD− and EXC− terminals. In addi- iDAQ-815 User Manual... - Page 18 As can be seen in the equation, the measurement result is independent of the lead- wire resistance, as long as all lead-wire resistances are equal and both current sources match. Therefore, to minimize measurement errors, use RTD with equal- length lead-wires and keep two current sources at equal output current values. iDAQ-815 User Manual...
-
Page 19: 4-Wire Rtd Input Signal Connection
As can be seen in the equation, the measurement result is independent of the lead- wire resistance. Unlike in 3-wire RTD measurement, the equal holds true even if lead-wire resistances do not match for 4-wire RTD measurement. iDAQ-815 User Manual... -
Page 20: Pin Assignment
5, 9, 13, 17, 25, 29, 33, 37 terminal, n = 0~7 RTDn- Resistor temperature detector 0 negative 6, 10, 14, 18, 26, 30, 34, 38 terminal No connection 1, 2, 19, 20, 21, 22, 39, 40 iDAQ-815 User Manual... -
Page 21: Chapter 3 Function Details
Chapter Function Details... -
Page 22: Function Details
With buffered analog input acquisition, the ADC conversion rate and the duration of the acquisition is controlled by hardware timing signals. All conversion results are sampled and stored in the buffer memory before sending back to the host computer as shown in Figure 3.2. iDAQ-815 User Manual... - Page 23 As shown in Figure 3.4, the start of acquisition is delayed by 3 samples after receiving a start trigger, and the stop of acquisition is delayed by 2 samples after receiving a stop trigger. iDAQ-815 User Manual...
-
Page 24: Analog Input Isolation
0 °C multiplied with 100 °C. For example, a Pt100 (385) RTD has a resistance of 100 Ω at 0 °C and 138.51 Ω at 100 °C. The temperature coefficient can be calculated by the following equation. iDAQ-815 User Manual... -
Page 25: Rtd Wiring Configuration
With 3-wire RTDs, a much more accurate result can be obtained compared to 2-wire RTDs with a little more cost. In 4-wire configuration, the lead-wire resistances can be compensated completely and yield the best accuracy, but 4-wire RTDs are the most expensive ones. iDAQ-815 User Manual... -
Page 26: Device Description And Configuration
You can change the description in Navigator, or just leave it as default. The descrip- tion is used in your own program, in order to get control or device handler from the device. Figure 3.6 Device description shown in Navigator iDAQ-815 User Manual... -
Page 27: Appendix A Specifications
Appendix Specifications... -
Page 28: Rtd Input
0.15 °C Temperature Range NiFe604 < 0 °C 0.10 °C > 0 °C 0.08 °C Temperature Range Balco500 Full Range 0.08 °C – Over entire operating temperature (-20 °C to 60 °C) Temperature Range PT100(385) Pt100(392) Pt1000 iDAQ-815 User Manual... -
Page 29: General
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating humidity: 10% to 90% RH, non-condensing Storage humidity: 5% to 95% RH, non-condensing Vibration: 5Grms, random, 5~500Hz, 1hr/axis Shock: 30G, half sine, 11ms Function Block iDAQ-815 User Manual... - Page 30 User Manual...
-
Page 31: Appendix B System Dimensions
Appendix System Dimensions... -
Page 32: System Dimensions
EXC2- RTD0+ RTD2+ RTD2- RTD0- EXC3+ EXC3- EXC0- RTD3+ RTD3- 2 / 3 / 4 -wire EXC4+ EXC4- EXC7+ RTD4+ RTD4- RTD7+ EXC5+ EXC5- RTD7- RTD5+ RTD5- EXC7- EXC6+ EXC6- iDAQ-815 RTD6+ RTD6- EXC7+ EXC7- RTD7+ RTD7- iDAQ-815 User Manual... - Page 33 User Manual...
- Page 34 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2022...
