6.2 Board Connectors

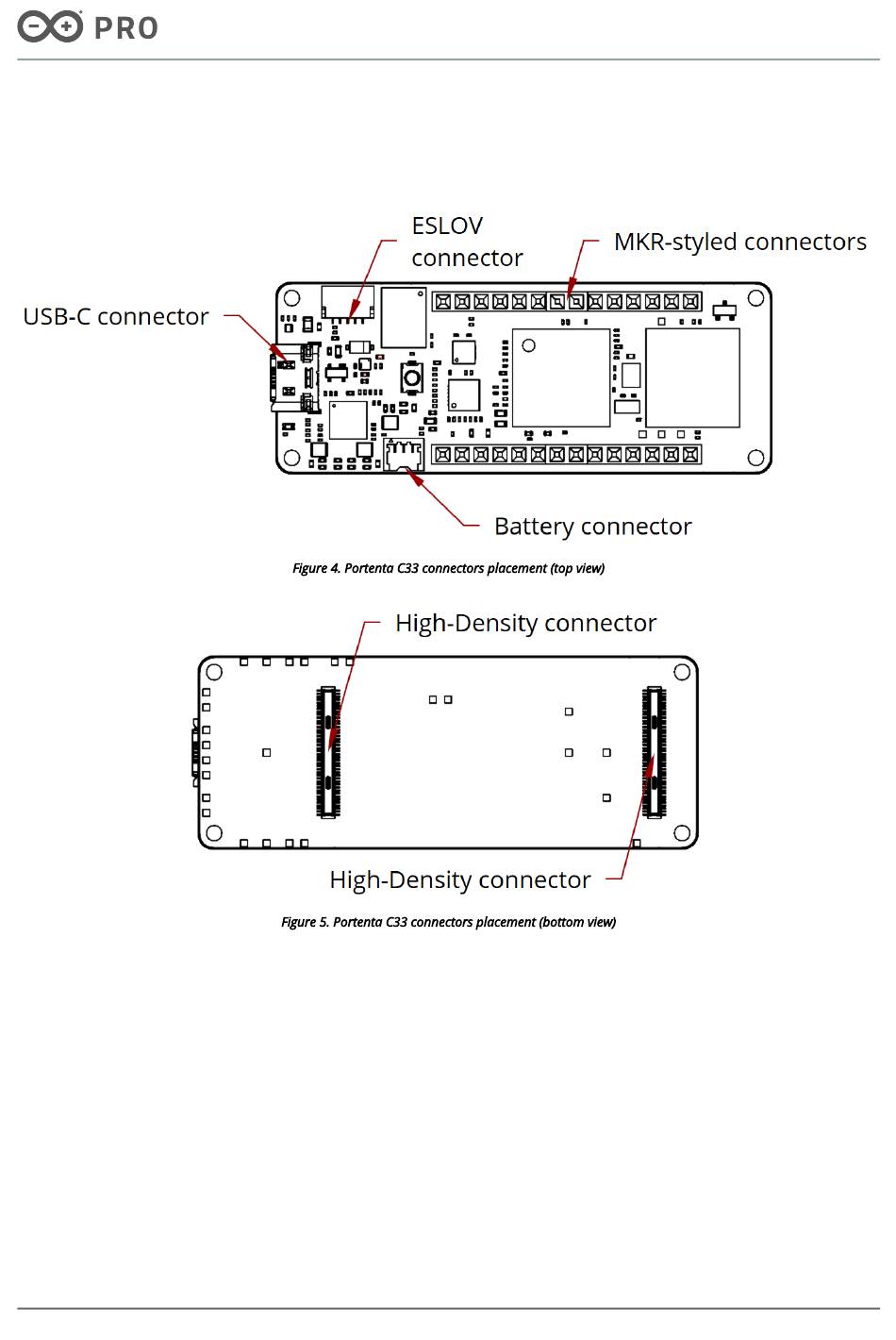

Connectors of the Portenta C33 are placed on the top and bottom side of the board, their placement can be seen in
Figures 4 and 5.
Figure 4. Portenta C33 connectors placement (top view)
Figure 5. Portenta C33 connectors placement (bottom view)
