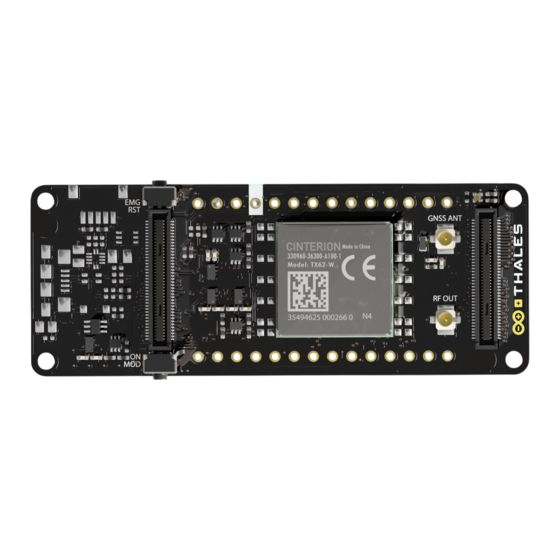

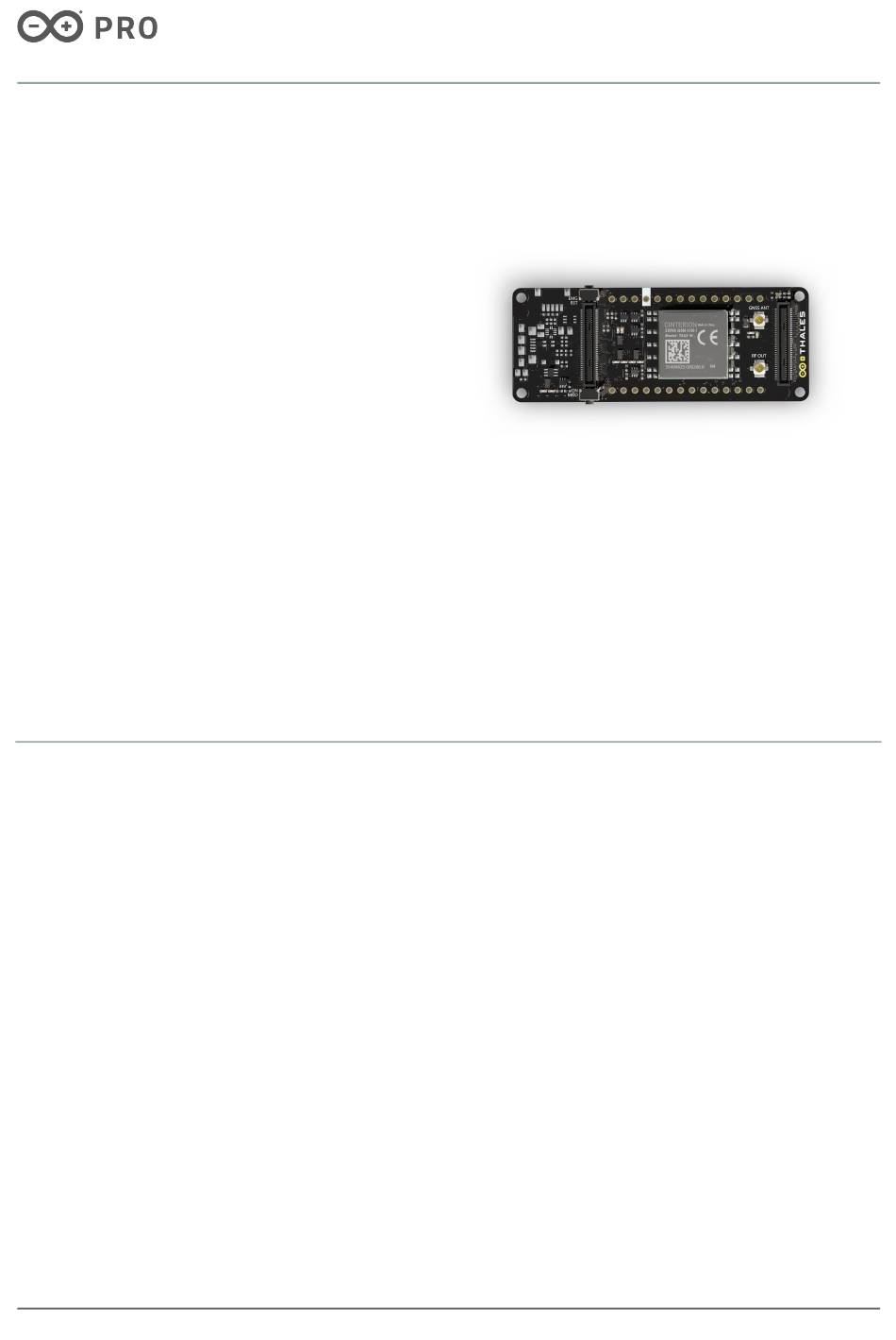

Arduino® Portenta Cat. M1/NB IoT GNSS
Shield
Product Reference Manual
SKU: ASX00027
Description
Unleash global connectivity and positioning capabilities of your Portenta or MKR board with the Arduino®
Portenta Cat. M1/NB IoT GNSS Shield. This shield enables cellular connectivity to both Cat. M1 and NB-IoT
networks. Easily track your valuable assets across the city or worldwide with your choice of GPS, GLONASS, Galileo
or BeiDou.
Target areas:
Internet of Things, outdoor asset tracking, positioning, cellular connectivity, fleet management
1 / 13
Arduino® Portenta Cat. M1/NB IoT GNSS Shield
Modified: 12/10/2022
Advertisement
Table of Contents
Related Manuals for Arduino PRO Portenta ASX00027
Summary of Contents for Arduino PRO Portenta ASX00027
- Page 1 SKU: ASX00027 Description Unleash global connectivity and positioning capabilities of your Portenta or MKR board with the Arduino® Portenta Cat. M1/NB IoT GNSS Shield. This shield enables cellular connectivity to both Cat. M1 and NB-IoT networks. Easily track your valuable assets across the city or worldwide with your choice of GPS, GLONASS, Galileo or BeiDou.
- Page 2 Arduino® Portenta Cat. M1/NB IoT GNSS Shield Features Note: This board requires a compatible MKR or Portenta board to function. Use together with the Arduino® Vision Shield is not supported. Cinterion TX62 wireless module Cellular connectivity and positioning support Embedded IPv4 and IPv6 TCP/IP stack access...
-
Page 3: Table Of Contents
5 Mechanical Information 6 Pinout 7 Certifications 7.1 Declaration of Conformity CE DoC (EU) 7.2 Conflict Minerals Declaration 8 FCC Caution 9 Company Information 10 Reference Documentation 11 Revision History 3 / 13 Arduino® Portenta Cat. M1/NB IoT GNSS Shield Modified: 12/10/2022... -
Page 4: The Board
1 The Board 1.1 Application Examples Enter the world of global asset tracking with the Arduino® Portenta Cat. M1/NB IoT GNSS Shield. This shield can connect to your Portenta/MKR board enabling a wide range of applications. Global Asset tracking The Arduino® Portenta Cat. M1/NB IoT GNSS Shield provides connectivity to four major satellite positioning networks, allowing you to track your inventory reliably. -
Page 5: Assembly Overview
Arduino® Portenta Cat. M1/NB IoT GNSS Shield 1.4 Assembly Overview Example of a typical assembly including an Arduino® Portenta H7 and Arduino® Portenta Cat. M1/NB IoT GNSS Shield. 2 Ratings 2.1 Recommended Operating Conditions Symbol Description Unit Input Voltage from Portenta... -
Page 6: Functional Overview
3 Functional Overview 3.1 Block Diagram Portenta Cat. M1/NB IoT GNSS Shield Block Diagram 3.2 Board Topology 3.3 Top View Portenta Cat. M1/NB IoT GNSS Shield Top View 6 / 13 Arduino® Portenta Cat. M1/NB IoT GNSS Shield Modified: 12/10/2022... -
Page 7: Bottom View
J3, J4 Male High Density Connectors module U.FL-R-SMT-1(60) micro UFL Cellular Antenna U.FL-R-SMT-1(60) micro UFL GNSS Antenna Connector Connector U3,U4,U6 74LVCH2T45GT Level Translator TC1185-3.0VCT713 3V 150mA LDO IC 7 / 13 Arduino® Portenta Cat. M1/NB IoT GNSS Shield Modified: 12/10/2022... -
Page 8: Cellular Connectivity
Portenta Cat. M1/NB IoT GNSS Shield Power Tree Power to the Arduino® Portenta Cat. M1/NB IoT GNSS Shield is provided by the host Portenta board via the high density connector. A 3.0V voltage is provided via TC1185-3.0VCT713 (U8) for the active GNSS antenna. -
Page 9: Board Operation
Note: The Arduino® Portenta Cat. M1/NB IoT GNSS Shield requires a Portenta/MKR host board to operate. 4.1 Sample Sketches Sample sketches for the Arduino® Portenta Cat. M1/NB IoT GNSS Shield can be found either in the “Examples” menu in the Arduino® IDE or in the “Documentation > Tutorials” section of the Arduino® Pro website [4] 4.2 Online Resources... -
Page 10: Pinout
Hexavalent Chromium (Cr6+) 1000 Poly Brominated Biphenyls (PBB) 1000 Poly Brominated Diphenyl ethers (PBDE) 1000 Bis(2-Ethylhexyl} phthalate (DEHP) 1000 Benzyl butyl phthalate (BBP) 1000 Dibutyl phthalate (DBP) 1000 10 / 13 Arduino® Portenta Cat. M1/NB IoT GNSS Shield Modified: 12/10/2022... -
Page 11: Conflict Minerals Declaration
ECHA (European Chemical Agency) 1907 /2006/EC. 7.2 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502. -
Page 12: Company Information
Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 201453/EU. This product is allowed to be used in all EU member states. -
Page 13: Revision History
Arduino® Portenta Cat. M1/NB IoT GNSS Shield 11 Revision History Date Revision Changes 31-01-2022 Initial Version 13 / 13 Arduino® Portenta Cat. M1/NB IoT GNSS Shield Modified: 12/10/2022...
