Arduino® Portenta C33

6 Mechanical Information

The Portenta C33 is a double-sided 66.04 mm x 25.40 mm board with a USB-C® port overhanging the top edge,
dual castellated/through-hole pins around the two long edges and two High-Density connectors on the bottom side
of the board. The onboard wireless antenna connector is located on the bottom edge of the board.
The Portenta C33 is designed to be usable as a surface-mount module as well as presenting a dual inline package
(DIP) format with the MKR-styled connectors on a 2.54 mm pitch grid with 1 mm holes. The Portenta C33 also has
four 1.12 mm drilled mounting holes to provide for mechanical fixing.

6.1 Board Dimensions

Portenta C33 board main dimensions can be seen in Figure 3.

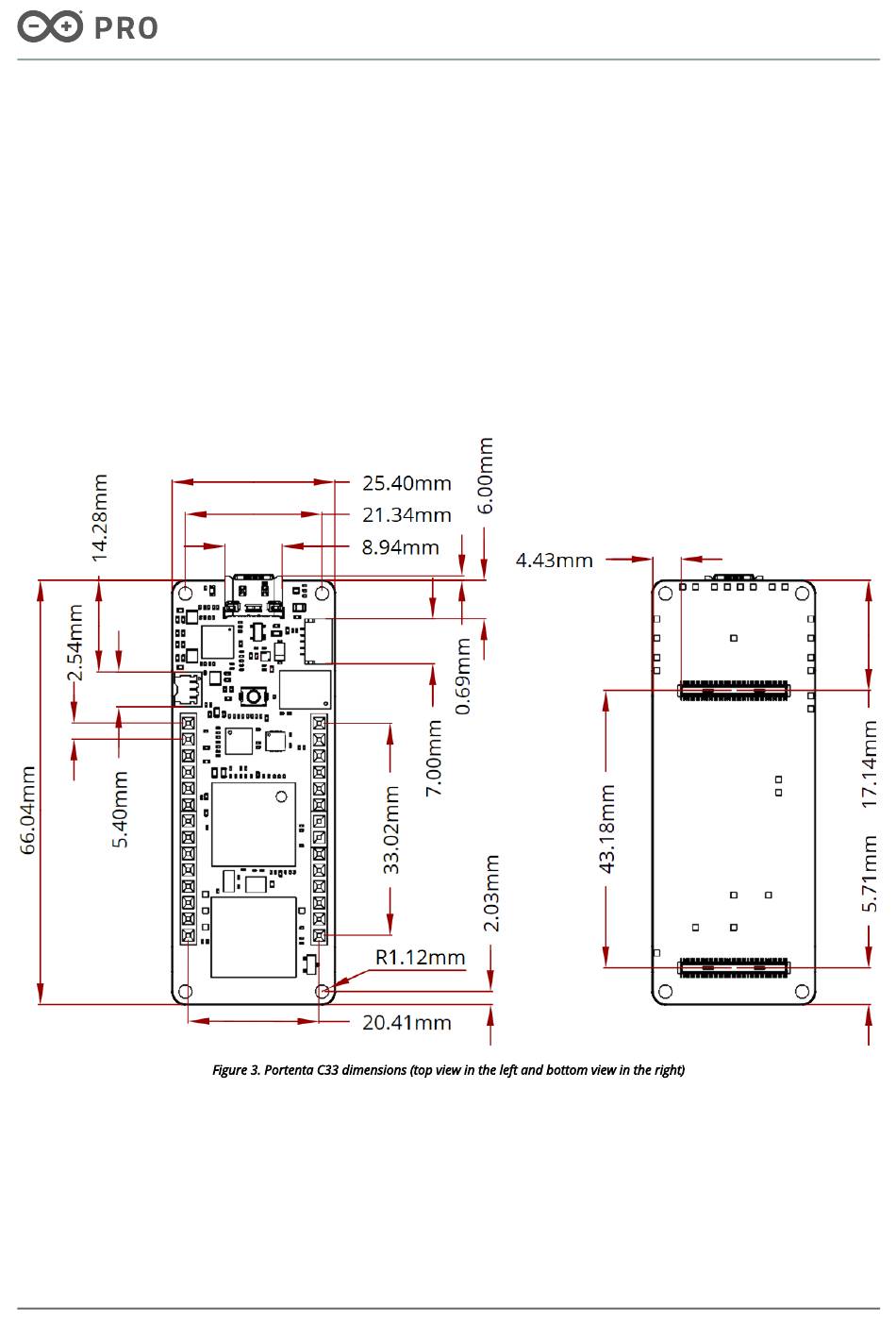

Figure 3. Portenta C33 dimensions (top view in the left and bottom view in the right)
