7.2 Board's Connectors Measures

8 Certifications

8.1 Declaration of Conformity CE DoC (EU)

We declare under our sole responsibility that the products above are in conformity with the essential requirements
of the following EU Directives and therefore qualify for free movement within markets comprising the European
Union (EU) and European Economic Area (EEA).
20 / 25
2.88mm
4.00mm
J6
TOP

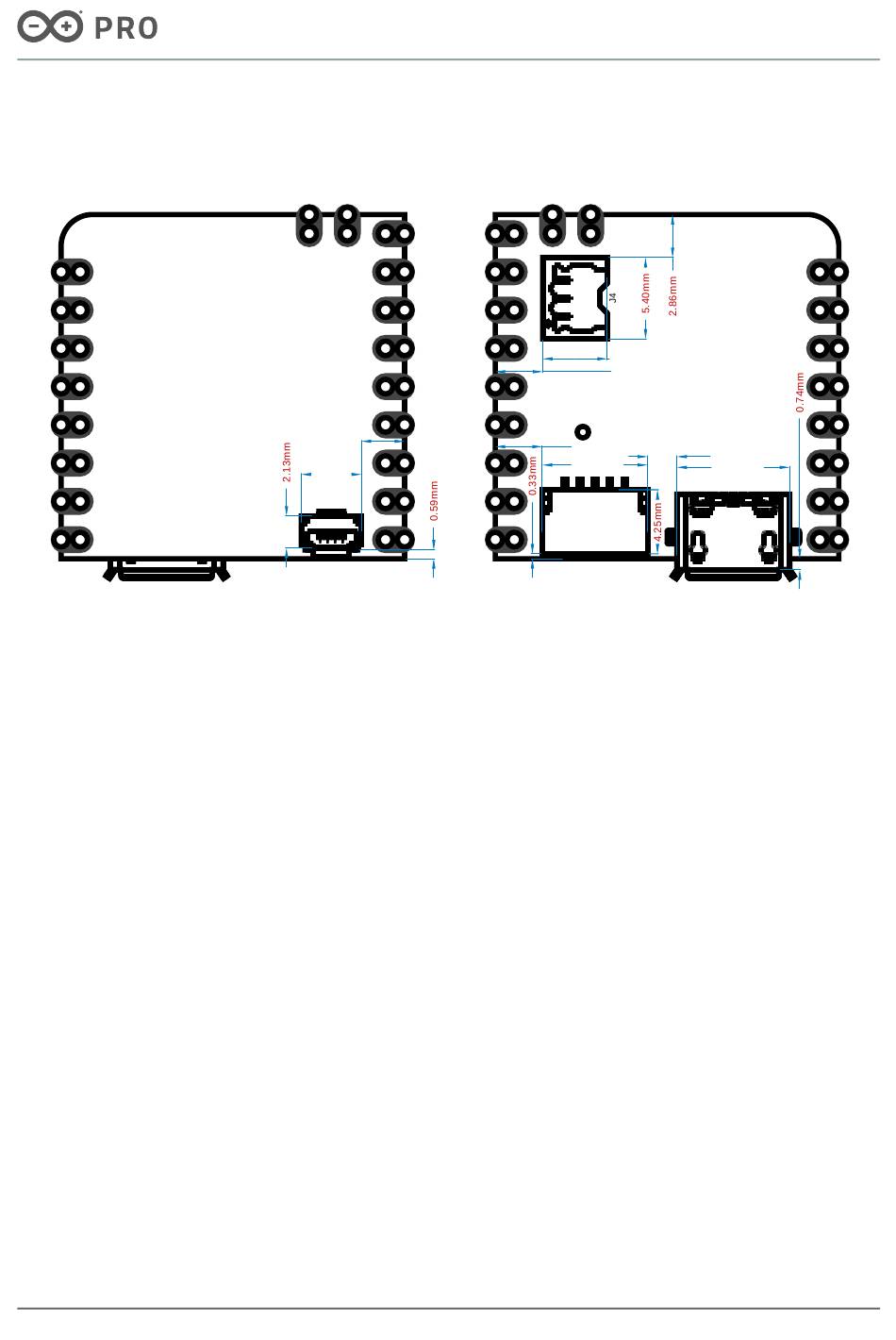

Nicla Voice connectors - mechanical measures
Arduino® Nicla Voice
Arduino® Nicla Voice
4.30mm
3.16mm
3.13mm
1.96mm
7.00mm
7.50mm
J5
J7 J7
BOTTOM
