4.3 Relays

4.3.1 Relay 1 and 2

Relay 1 driven by digital pin 1
Relay 2 driven by digital pin 2
Pin
1
2
3

5 Mechanical Information

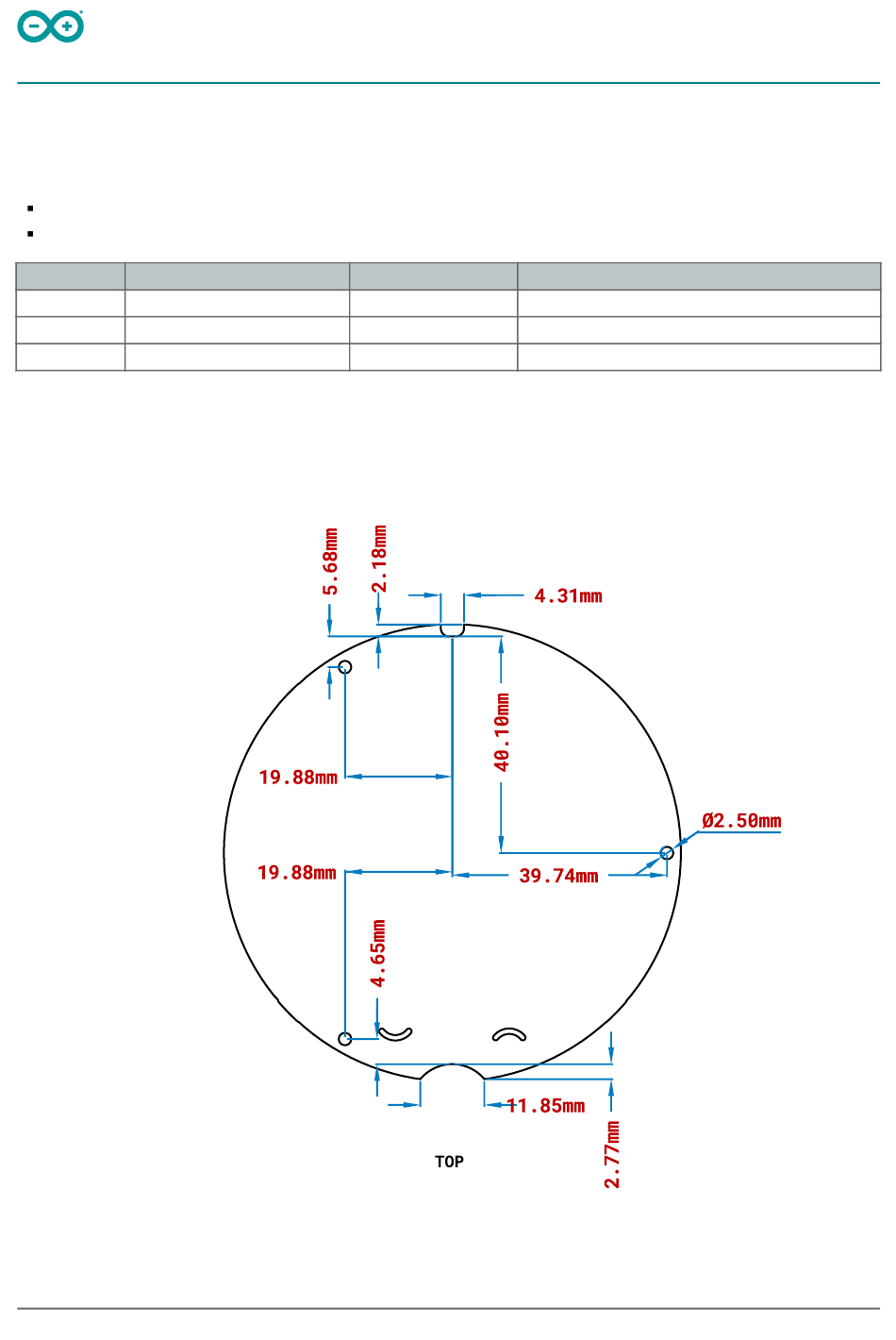

5.1 Board Outline / Mounting Holes

13 / 18
Function
NC
COM
NO
Arduino® MKR IoT Carrier Rev2
Arduino® MKR IoT Carrier
Type Description
Switch Normally Closed
Switch Common
Switch Normally Open
Mechanical view
Rev2
Modified: 12/01/2023
