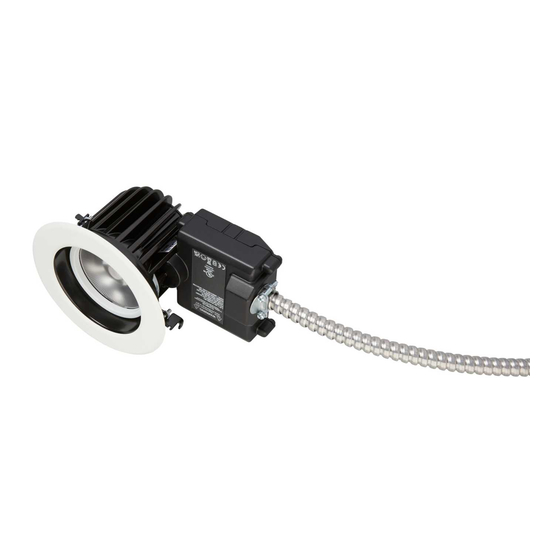

- Page 1 ArcSystem Navis 100 Sidekick Installation Guide Part Number: 7496M2150 Rev C Released: 2023-02...
- Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. ETC intends this document, whether printed or electronic, to be provided in its entirety.
-
Page 3: Table Of Contents
Table of Contents Overview Help from ETC Technical Services Safety Features Installation Accessories Before You Begin Installation Power Disconnect Device Installation Requirements Electrical and Wiring Specifications Recommended ETC Dimmer Settings Installation Prepare the Ceiling Spacing for Wall Wash Luminaires Assemble Navis 100 Sidekick/Luminaire... - Page 4 Power Up Procedure Maintenance Specifications Compliance FCC Compliance Sidekick Installation Guide...
-
Page 5: Overview
Review the ArcSystem Navis 100 Installation Guide prior to installing the Navis 100 Sidekick LED driver to familiarize yourself with the luminaire. The installation guide is provided with the Navis 100 luminaire and is also available for download free of charge from the ETC website: etcconnect.com/ArcSystem-Navis/Documentation. Sidekick Installation Guide... -
Page 6: Help From Etc Technical Services
Help from ETC Technical Services If you have questions that are not answered by this document, try the ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all ETC offices outside of normal business hours. -
Page 7: Safety
Read the entire guide before using this equipment. The Navis 100 Sidekick LED driver is not user-serviceable and should only be serviced by a qualified technician. Contact ETC Technical Services for assistance. Symbols used on the product label are defined below: General warning Avertissement général... -
Page 8: Features
Features Navis 100 Sidekick LED Driver Installation screw (T20 Torx, captive) RJ45 plug Navis 100 Luminaire In port (RJ45 socket) Threaded screw hole for the installation screw in the Sidekick LED driver Mounting clamps (quantity 3) Magnetic trim plate Navis 100 Luminaire with Trim Plate Removed 2 mm hex screws or T10 Torx screws (silver) for mounting clamps... -
Page 9: Installation Accessories
Installation Accessories Several installation accessories are available for purchase separate from the luminaire. Contact ETC or your authorized ETC dealer to purchase these accessories. • ArcSystem Recessed Luminaire Ceiling Bracket: The ArcSystem Recessed Luminaire Ceiling Bracket is intended for use in new installations or when additional support is required for hanging a luminaire. -
Page 10: Before You Begin Installation
Before You Begin Installation Review the following sections before you begin installing the luminaire and driver. Power Disconnect Device Before installation, make sure that you have a readily accessible input power disconnect device installed ahead of your Navis 100 luminaire and the driver. -
Page 11: Electrical And Wiring Specifications
• Ambient operating temperature 0°C–40°C (32°F–104°F), 5%–95% non-condensing humidity. • Ceiling material thickness 0.5–20 mm (1/32–3/4 in). • Dry locations only. You must choose a dry installation location for the Navis 100 luminaire when installing it with a Navis 100 Sidekick LED driver. -
Page 12: Recommended Etc Dimmer Settings
See the ETC website for the recommended settings for ETC dimmers when used with the Navis 100 Sidekick LED driver: etcconnect.com/Navis_100_ Sidekick/ETC_Dimmer_Settings. If you are using the Navis 100 Sidekick LED driver with a non-ETC dimmer, the dimmer must be rated for use with LED/CFL fixtures. Installation Note: Installation must follow all national and local codes for electrical equipment. -
Page 13: Assemble Navis 100 Sidekick/Luminaire
Assemble Navis 100 Sidekick/Luminaire Connect the Navis 100 Sidekick LED driver to a Navis 100 White or Fade to Warm luminaire. Tools and parts required: • 2.0 mm hex key (for Navis 100 luminaires that include hex screws) • T10 Torx screwdriver •... -
Page 14: Install The Luminaire
Install the Luminaire Note: If you are installing a luminaire with a wall wash trim plate, Install a Wall Wash Luminaire on page 12 for installation instructions. Note: If you are using the ArcSystem C-ring installation accessory, insert the C-ring into the hole in the ceiling before you begin the installation procedure. - Page 15 Note: Setting the approximate tilt and rotation positions before you install the luminaire minimizes the need for large adjustments after the luminaire is installed, which helps prevent the cables from twisting or wrapping around the luminaire. 4. Install the Navis 100 Sidekick/luminaire assembly in the ceiling. a.
-
Page 16: Install A Wall Wash Luminaire
Install a Wall Wash Luminaire Note: If you are using the ArcSystem C-ring installation accessory, insert the C-ring into the hole in the ceiling before you begin the installation procedure. Press the three triangular points on the C-ring into the ceiling material to secure the C-ring in place. Tool required: •... - Page 17 4. Attach the magnetic wall wash trim plate to the base of the luminaire so that the angled top of the trim plate fits into the angle of the luminaire. Ensure that the trim plate connects firmly with the three magnets on the base of the luminaire.
- Page 18 Power Up Procedure Verify that the Navis 100 Sidekick LED driver is receiving power. The luminaire will light. Maintenance WARNING: Disconnect power to the Navis 100 Sidekick and allow the luminaire to cool before performing any cleaning and maintenance. AVERTISSEMENT : Débranchez l’alimentation de Navis 100 Sidekick et laissez refroidir le luminaire avant d’effectuer tout nettoyage et entretien.
- Page 19 For current and complete compliance information, view the product datasheet at etcconnect.com/ArcSystem-Navis/Documentation. For complete product documentation, including compliance documentation, visit etcconnect.com/products. FCC Compliance ArcSystem Navis 100 Sidekick (For any FCC matters): Electronic Theatre Controls, Inc. 3031 Pleasant View Road Middleton, WI 53562 +1 (608) 831-4116 etcconnect.com...
- Page 20 | Support support.etcconnect.com Contact etcconnect.com/contactETC | © 2023 Electronic Theatre Controls, Inc. Trademark and patent info: etcconnect.com/ip | Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7496M2150 Rev C Released 2023-02...
