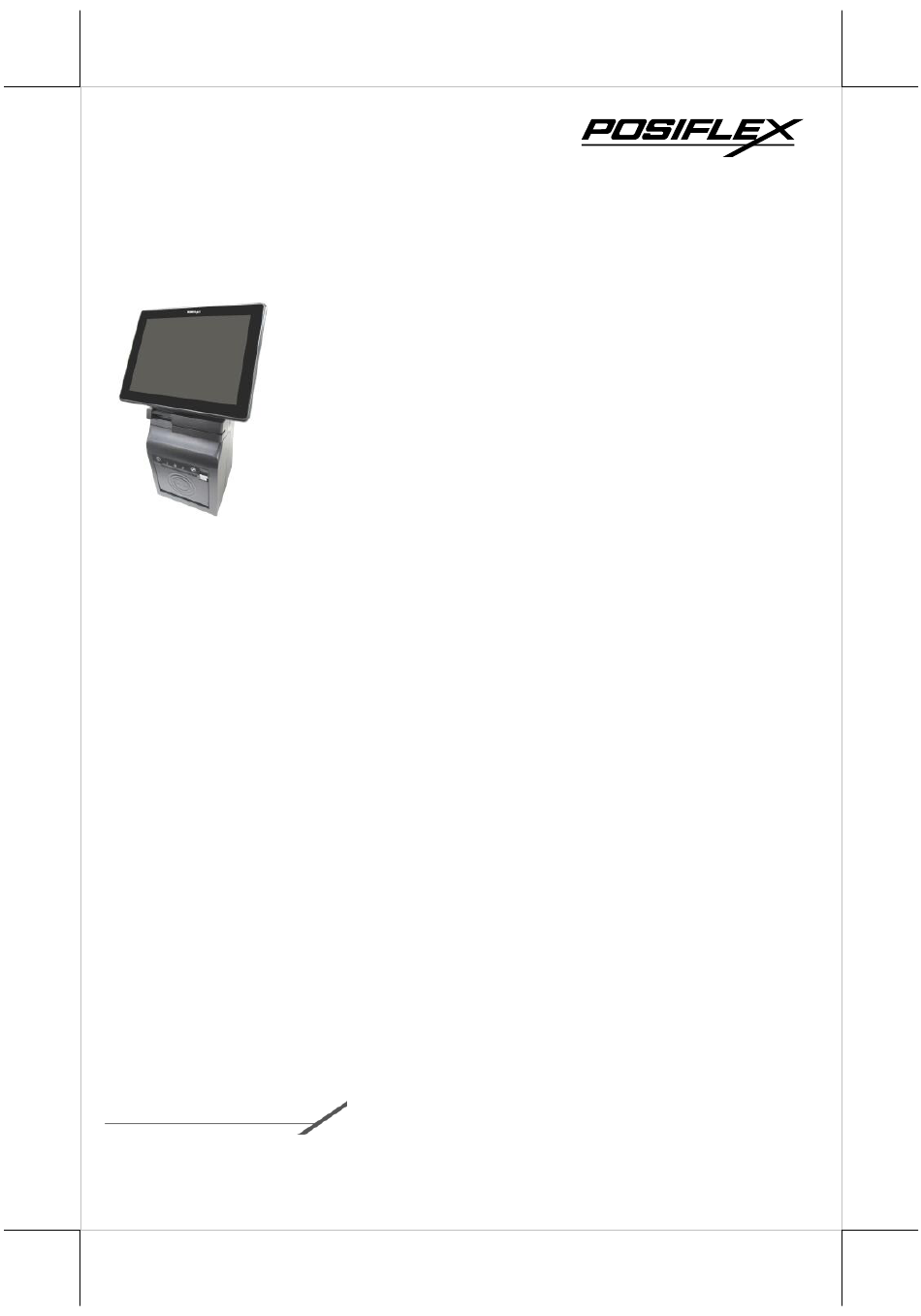

HS-3410A/3414A
Desktop POS
User Manual
SOME IMPORTANT NOTES
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment
this equipment may cause radio interference.
HS-3410A/3414A Ver. A0
Package Contents
HS-3410A/3414A desktop POS (x 1)
24V/60W Power Adaptor (x 1)
Power cord (x 1)
3-inch wide thermal paper roll (x 1)
Paper separator for 2" thermal paper roll (x 1)
Desktop mounting kit pack for HS-3410A-G2 (x 1)
(including 1 desktop mounting bracket,
4 fixing screws, and 4 plastic anchors)
Desktop mounting kit pack for HS-3414A-G2 (x 1)
(including 1 bottom plate, 1 desktop mounting
bracket, 4 fixing screws, and 4 plastic anchors)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-3410A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX HS-3410A

  • Page 1 3-inch wide thermal paper roll (x 1)  Paper separator for 2” thermal paper roll (x 1)  Desktop mounting kit pack for HS-3410A-G2 (x 1) (including 1 desktop mounting bracket, 4 fixing screws, and 4 plastic anchors)  Desktop mounting kit pack for HS-3414A-G2 (x 1)
  • Page 2 AVERTISSEMENT CE CLASSE A Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet équipement peut provoquer des interférences radio. WARRANTY LIMITS Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians.
  • Page 3 Views of HS-3410A/3414A Front View HS-341xA P-CAP Touch & LCD Panel Fingerprint or iButton Sensors (Optional) Posiflex 2D Scanner (Optional) 3-Track Magnetic Stripe Reader (Optional) Cover Open Lever Printed Paper Exit Feed Button Paper-out LED Indicator Error LED Indicator Power LED Indicator...
  • Page 4 (Optional) Power Button Bottom View Rubber Pad Rubber Pad Bottom I/O Interface Mounting holes Views of I/O Interface of HS-3410A/3414A Top I/O Interface Reset Button 12V DC-OUT HDMI Port USB 3.0 Port Power Jack Line Out Port Micro SD Card Slot...
  • Page 5: Connecting Power Adapter

    Bottom I/O Interface 24V DC-IN Power Jack Cash Drawer Port DB-9 COM Ports RJ-45 LAN Port USB 2.0 Port Connecting Power Adapter Please refer to the following instructions on how to connect power adapter to HS-341xA and to organize your cables. Lay your desktop POS on a level surface with its touch screen facing down as shown in the figure.
  • Page 6 Before pushing the cover back into place, neatly thread the cables through the cable exit. Cable Exit Press down the cover to close the bottom I/O interface chamber. CAUTION: On doing insertion or extraction of a cable connector, please always hold the connector head itself instead of pulling the cable wire.
  • Page 7 2.2. Push the sharp-pointed part of paper separator into the slot on the bottom of the paper roll compartment. 2.3. Put the paper separator into the slot as shown in the below figure. 2.4. Drop 2-inch paper roll inside the paper roll compartment.
  • Page 8 Make sure the loose end sticks out of the opening of the paper roll compartment. Then, close the paper roll cover by pushing it back at the center of the top side of the cover with a click sound. To avoid paper jam or other printing errors, do NOT press the paper roll cover release lever during printing.
  • Page 9 After inserting another two scerws into the two mouting holes located on the rear of the POS, fasten them to fix the POS termial to the bottom plate. Using desktop-mounting kits Please follow the steps below to install desktop-mounting kits. Please first release the mounting bracket from the bottom plate by removing two screws as shown in the figure.
  • Page 10 Support your POS terminal with its screen facing towards you. then, align the two screw bolts on the bottom of the POS with the rail slots of the mounting bracket. Push the POS backward along the rail slots of the bracket until the terminal is locked into place.
  • Page 11 Apply two self-tapping screws through the mounting holes into the two plastic anchors. Then, fasten the screws to completely lock the POS onto the table. Installing a Customer Display to HS-341xA HS-341xA also allows you to additionally install a customer display to expand its functionality.
  • Page 12 Scanning Barcodes with Posilfex 2D Scanner (Optional) The integrated Posiflex 2D Scanner is another prominent feature of HS-341xA. With its hand-free design, it offers a more convenient solution for users to...
  • Page 13 The manual trigger button is showed below. Using Fingerprint or iButton Sensors (Optional) As for access control to your computer, two optional identification mechanisms are provided and integrated in HS-341xA: The fingerprint and iButton sensors. Either will work to verify an individual’s identity. In order to allow the fingerprint sensor to function normally, you have to register your own finger first using Fingerprint Recognition Tool which is pre-installed and accessible on your desktop of your system.
  • Page 14: Status Led Indicator

    follow the instructions described below to perform a self-test: Power OFF printer. Press and hold the feed button of the printer. Power on the printer. The printer will emit one short beep sound. Release the feed button of the printer. The printer performs a self-test and prints out the self-test result.
  • Page 15: Specifications

    Reset Button 1 x reset button (on the top I/O plate) WiFi via mini-PCIe expansion slot or USB Wireless Connectivity 4G LTE via Posiflex SM-140 Power ON/ standby, bi-color LED indicators LED Indicator Ethernet link LED indicator on Ethernet connector...
  • Page 16 80 or 58 + 0 / -1 mm Paper width 3” thermal paper or Paper size 2” thermal paper with 2” paper separator Posiflex 2D Scanner Focal distance 120 mm ( from the front edge of scan engine) Diagonal approx. 46.4˚...
  • Page 17: Outline Dimension

    Outline Dimension HS-3410A HS-3414A ※ The product information and specifications are subject to change without prior notice.
