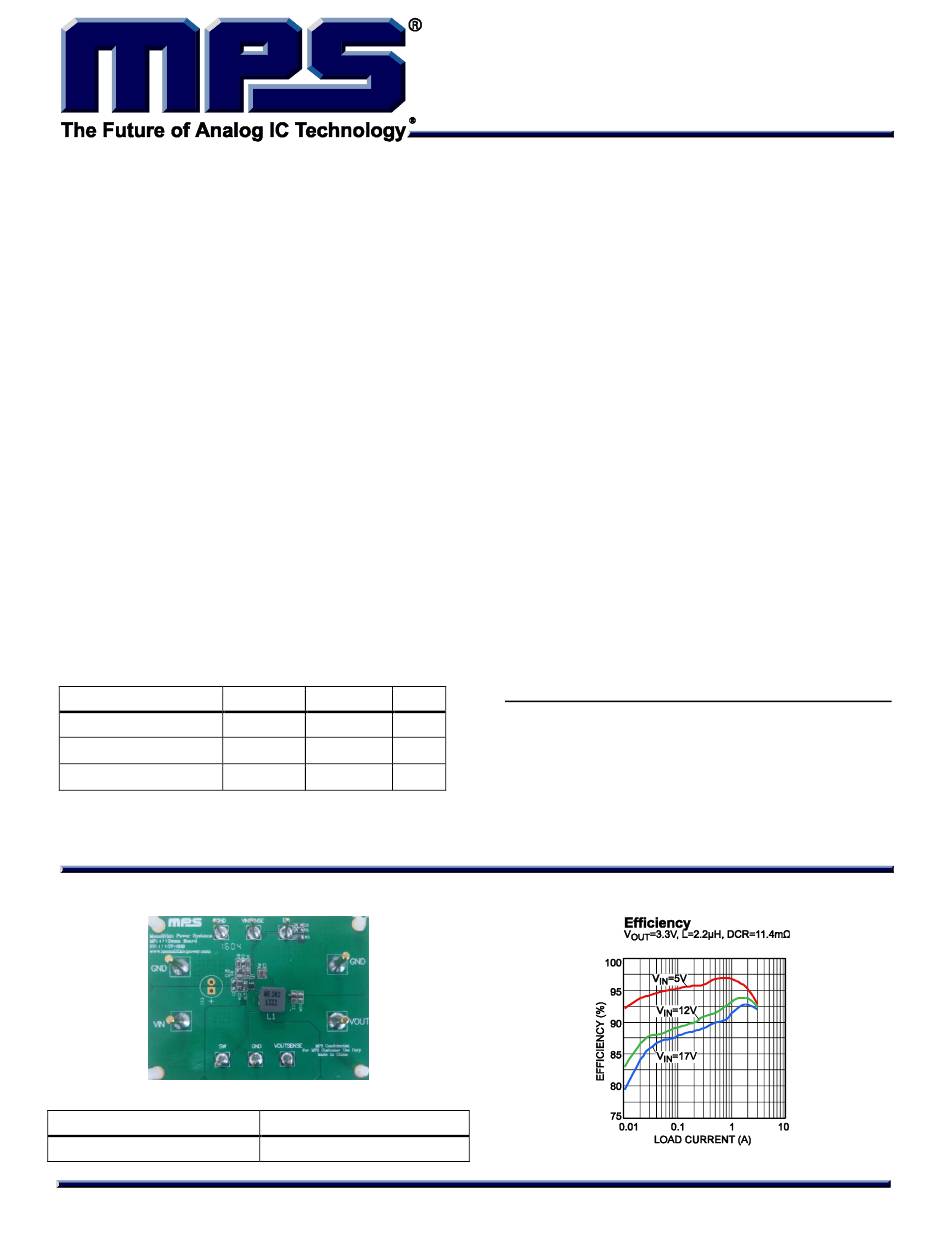

MPS EV1477-TF-00B Quick Start Manual

DESCRIPTION

The EV1477-TF-00B
designed to demonstrate the capabilities of
MPS' MP1477, a fully-integrated high-frequency,
synchronous rectified, step-down, switch-mode
converter with internal power MOSFETs. It
offers a very compact solution to achieve a 3A
continuous output current over a wide input
range, with excellent load and line regulation.
The MP1477 has synchronous-mode operation
for higher efficiency over the output current-load
range.
Constant On-Time control operation provides
very fast transient response and easy loop
design as well as very tight output regulation.
Full protection features include SCP, OCP,
UVP, and thermal shutdown.
The MP1477 requires a minimal number of
readily-available,
components and is available in a space-saving
SOT563 (1.6mmх1.6mm) package.

ELECTRICAL SPECIFICATION

Parameter Symbol
Input Voltage
Output Voltage
Output Current
Notes:
1) For different Input/output voltage specs and different output
capacitor/inductor may need change the application circuit
parameters.

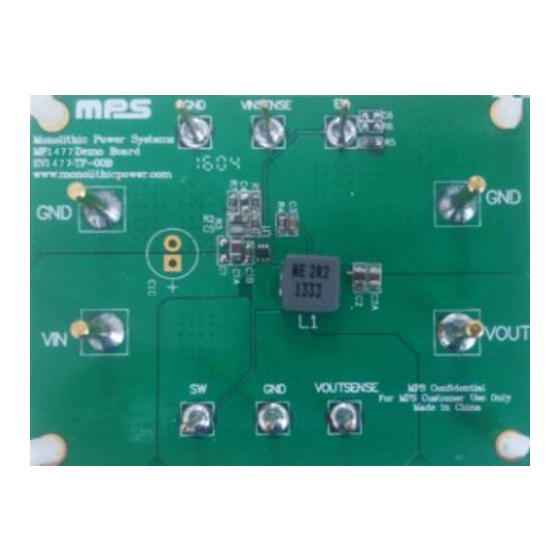

EV1477-TF-00B EVALUATION BOARD

(L x W x H) 63.7mm x 48.4mm x 6.4mm
Board Number
EV1477-TF-00B
EV1477-TF-00B Rev.1.0
8/11/2017 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
Evaluation Board
standard, external
(1)
Value Units
V 12 V
IN
V 3.3 V
OUT
I 3
A
OUT
MPS IC Number
MP1477GTF
www.MonolithicPower.com
© 2017 MPS. All Rights Reserved.
High-Efficiency, 800kHz,3A, 17V.
Step-Down Converter Evaluation Board

FEATURES

is

Wide 4.2V-to-17V Operating Input Range

58mΩ/25mΩ Low-R
MOSFETs

180µA Low IQ Current

High-Efficiency Synchronous-Mode
Operation

Power Save Mode at Light Load

Fast Load Transient Response

800kHz Switching Frequency

Internal Soft-Start

Over-Current Protection and Hiccup

Thermal Shutdown

Output Adjustable from 0.8V

Available in a SOT563(1.6mmх1.6mm)
package

APPLICATIONS


Security Camera

Digital Set-Top Boxes

Flat-Panel Television and Monitors

General Purposes
All MPS parts are lead-free, halogen free, and adhere to the RoHS
directive. For MPS green status, please visit MPS website under Quality
Assurance.
"MPS" and "The Future of Analog IC Technology" are Registered
Trademarks of Monolithic Power Systems, Inc.
EV1477-TF-00B
Internal Power
DS(ON)
1
