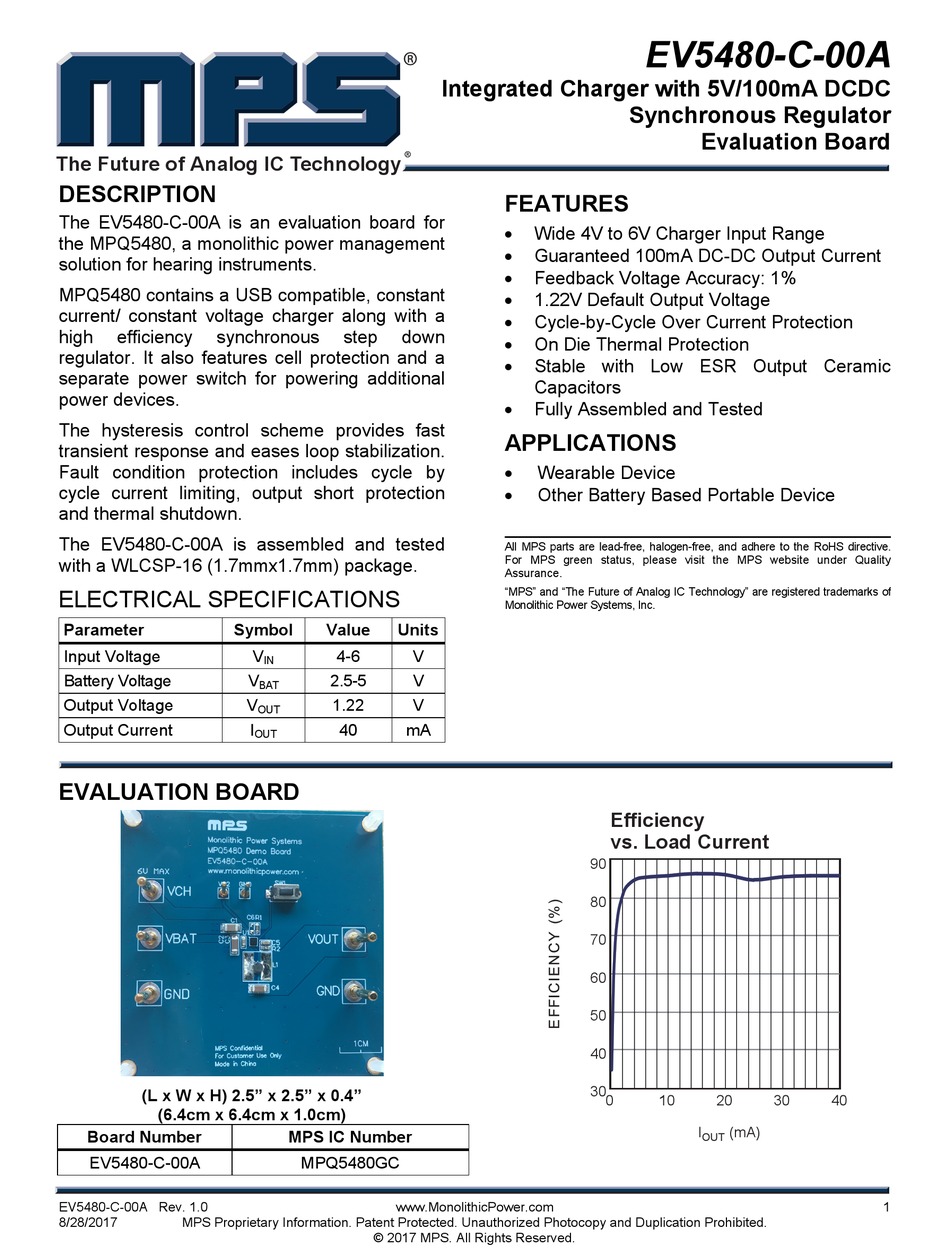

MPS EV5480-C-00A Manual

The Future of Analog IC Technology
DESCRIPTION
The EV5480-C-00A is an evaluation board for
the MPQ5480, a monolithic power management
solution for hearing instruments.
MPQ5480 contains a USB compatible, constant
current/ constant voltage charger along with a
high efficiency synchronous
regulator. It also features cell protection and a
separate power switch for powering additional
power devices.
The hysteresis control scheme provides fast
transient response and eases loop stabilization.
Fault condition protection includes cycle by
cycle current limiting, output short protection
and thermal shutdown.
The EV5480-C-00A is assembled and tested
with a WLCSP-16 (1.7mmx1.7mm) package.
ELECTRICAL SPECIFICATIONS
Parameter Symbol
Input Voltage
Battery Voltage
Output Voltage
Output Current

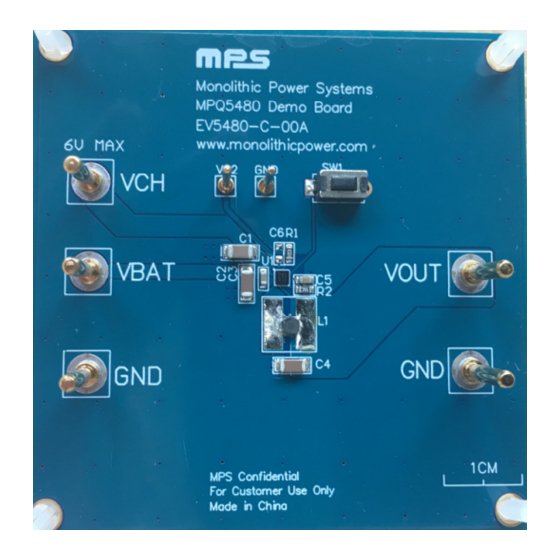

EVALUATION BOARD
(L x W x H) 2.5" x 2.5" x 0.4"
(6.4cm x 6.4cm x 1.0cm)
Board Number
EV5480-C-00A
EV5480-C-00A Rev. 1.0
8/28/2017 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
step down
Value Units
V 4-6 V
IN
V 2.5-5 V
BAT
V 1.22 V
OUT
I 40 mA
OUT
MPS IC Number
MPQ5480GC
www.MonolithicPower.com
© 2017 MPS. All Rights Reserved.
Integrated Charger with 5V/100mA DCDC
FEATURES

Wide 4V to 6V Charger Input Range

Guaranteed 100mA DC-DC Output Current

Feedback Voltage Accuracy: 1%

1.22V Default Output Voltage

Cycle-by-Cycle Over Current Protection

On Die Thermal Protection

Stable with Low ESR Output Ceramic
Capacitors

Fully Assembled and Tested
APPLICATIONS

Wearable Device

Other Battery Based Portable Device
All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive.
For MPS green status, please visit the MPS website under Quality
Assurance.
"MPS" and "The Future of Analog IC Technology" are registered trademarks of
Monolithic Power Systems, Inc.
Efficiency
vs. Load Current
90
80
70
60
50
40
30
0
EV5480-C-00A
Synchronous Regulator
Evaluation Board
10 20 30
I (mA)
OUT
40
