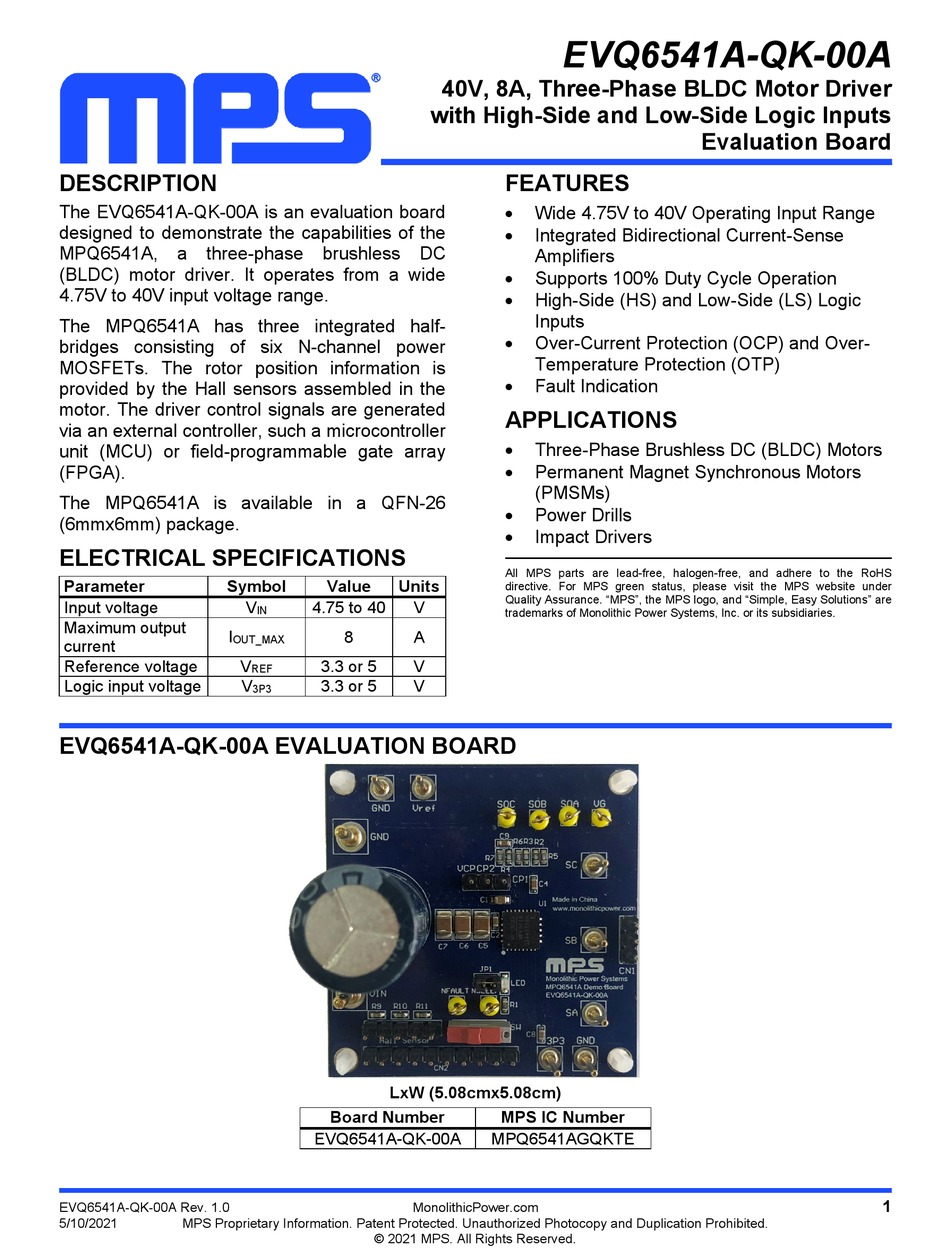

DESCRIPTION

The EVQ6541A-QK-00A is an evaluation board
designed to demonstrate the capabilities of the
MPQ6541A, a three-phase
(BLDC) motor driver. It operates from a wide
4.75V to 40V input voltage range.
The MPQ6541A has three integrated half-
bridges consisting of six N-channel power
MOSFETs. The rotor position information is
provided by the Hall sensors assembled in the
motor. The driver control signals are generated
via an external controller, such a microcontroller
unit (MCU) or field-programmable gate array
(FPGA).
The MPQ6541A is available in a QFN-26
(6mmx6mm) package.

ELECTRICAL SPECIFICATIONS

Parameter Symbol
Input voltage
Maximum output
I
OUT_MAX
current
Reference voltage
Logic input voltage

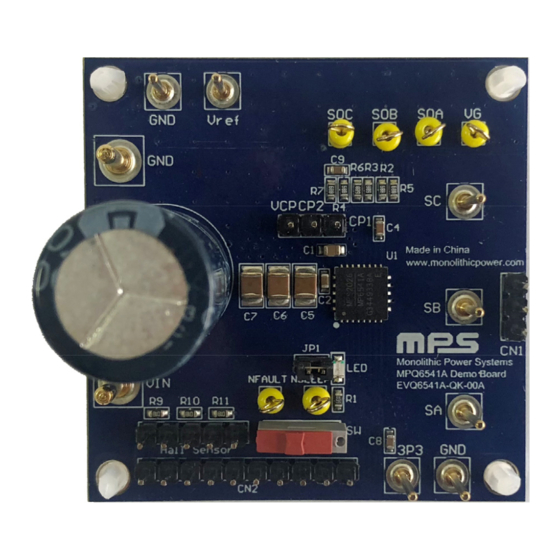

EVQ6541A-QK-00A EVALUATION BOARD
EVQ6541A-QK-00A Rev. 1.0
5/10/2021 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
brushless DC
Value Units
V 4.75 to 40 V
IN
8 A
V 3.3 or 5 V
REF
V 3.3 or 5 V
3P3
LxW (5.08cmx5.08cm)
Board Number
EVQ6541A-QK-00A
MonolithicPower.com
© 2021 MPS. All Rights Reserved.
EVQ6541A-QK-00A
40V, 8A, Three-Phase BLDC Motor Driver
with High-Side and Low-Side Logic Inputs

FEATURES


Wide 4.75V to 40V Operating Input Range

Integrated Bidirectional Current-Sense
Amplifiers

Supports 100% Duty Cycle Operation

High-Side (HS) and Low-Side (LS) Logic
Inputs

Over-Current Protection (OCP) and Over-
Temperature Protection (OTP)

Fault Indication

APPLICATIONS


Three-Phase Brushless DC (BLDC) Motors

Permanent Magnet Synchronous Motors
(PMSMs)

Power Drills

Impact Drivers
All MPS parts are lead-free, halogen-free, and adhere to the RoHS
directive. For MPS green status, please visit the MPS website under
Quality Assurance. "MPS", the MPS logo, and "Simple, Easy Solutions" are
trademarks of Monolithic Power Systems, Inc. or its subsidiaries.
MPS IC Number
MPQ6541AGQKTE
Evaluation Board
