DESCRIPTION

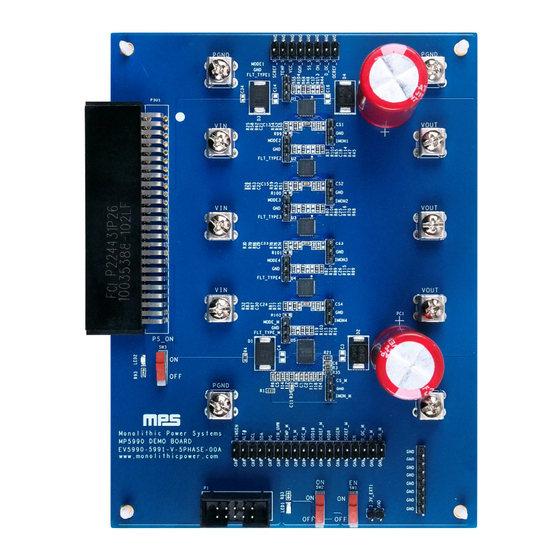

The EV5990-5991-V-5PHASE-00A evaluation
board is designed
capabilities of the MP5990 while working in
parallel with multiple MP5991 devices. The
MP5990 is a fully
compatible, compact
device. It contains a hot-swap controller and a
high-side power MOSFET (HS-FET), which
allow it to operate as a standalone device. The
MP5990 can also operate as a hot-swap
controller in parallel with the multi-phase
MP5991. The evaluation board contains one
phase of the MP5990 and four phases of the
MP5991.
The evaluation board provides rich test pins
and LED indications
evaluation. The paralleled
MP5991's pins can be probed through the test
pins, helping the user easily understand the
EV5990-5991-V-5PHASE-00A Rev. 1.0
1/31/2024 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
EV5990-5991-V-5PHASE-00A
to demonstrate the
integrated, PMBus-
hot-swap protection
to simplify system
MP5990's and
MonolithicPower.com
© 2024 MPS. All Rights Reserved.
16V, 50A, Hot-Swap Intelli-Fuse Solution
MP5990's operating principles.
The EV5990-5991-V-5PHASE-00A
compatible with
terminals and a power supply unit (PSU)
interface, which meet different power supply
verification requirements.
The MP5990 supports PMBus communication.
Through the PMBus interface, the MP5990 can
both monitor and report fault statuses, and set
up configurations. The built-in non-volatile
memory (NVM)
configurations.
The MP5990 is available in an LGA-45
(5mmx7mm package), and the MP5991 is
available in an LGA-32 (5mmx5mm package).
The EV5990-5991-V-5PHASE-00A has 4 layers,
which are each 2oz. The the total size of the
board is 11cmx15cm.
Evaluation Board
discrete power source
supports storing custom
is
