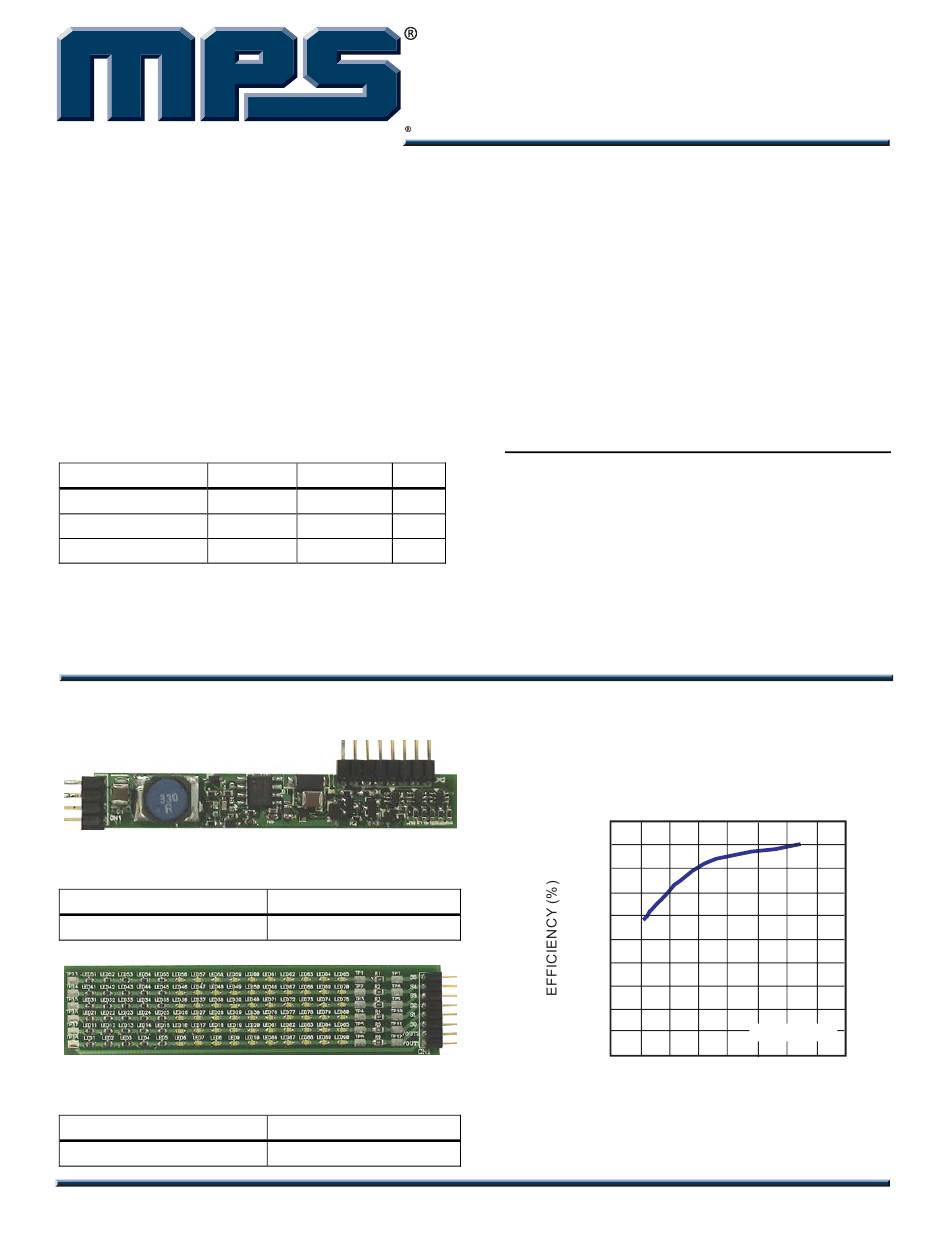

MPS EV6001DN-00D Quick Start Manual

The Future of Analog IC Technology

GENERAL DESCRIPTION

The EV6001DN-00D is an evaluation board for
the WLED driver application. It can drive 6
20mA strings of WLEDs with up to 10 WLEDs
per string. EV6001DN-00D has good current
balance among 6 strings. It also has PWM
dimming, EN function, and open circuit voltage
protection.
This device is available in an 8-pin SOIC
package with an exposed pad.

ELECTRICAL SPECIFICATIONS

Parameter Symbol
Input Voltage
Output Voltage V
Output Current

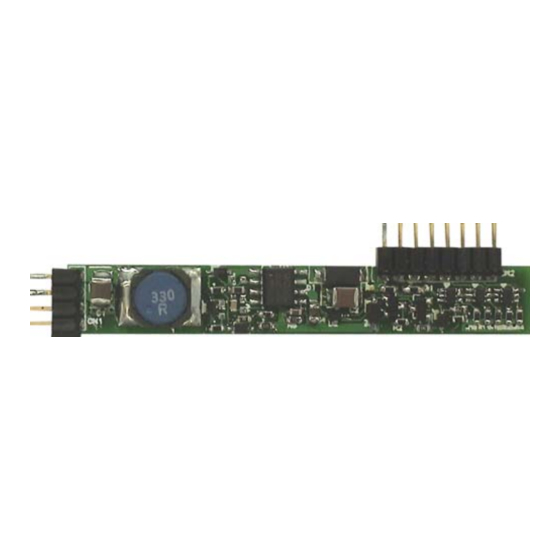

EV6001DN-00D EVALUATION AND LED BOARDS
(L x W x H) 2.6" x 0.6" x 0.2"
(6.5cm x 1.5cm x 0.5cm)
Board Number
EV6001DN-00D
(L x W x H) 3.3" x 0.8" x 0.2"
(8.5cm x 2.0cm x 0.5cm)
Board Number
MP6001 LED Board -00C
EV6001DN-00D Rev. 1.0
10/19/2007 MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
Value Units
V 7 – 21 V
IN
33 V
OUT
I 20mA x 6 mA
OUT
MPS IC Number
MP6001DN
MPS IC Number
MP6001DN
www.MonolithicPower.com
© 2007 MPS. All Rights Reserved.
EV6001DN-00D

FEATURES

•
Integrated 150V Power Switch
•
Integrated 100V Startup Circuit
•
Cycle-by-Cycle Current Limiting
•
PWM Dimming
•
Open Circuit Protection
•
Backlight Current Balance

APPLICATIONS

•
LCD Panel Backlight
•
General and Accent Lighting
"MPS" and "The Future of Analog IC Technology" are Registered Trademarks of
Monolithic Power Systems, Inc.
Efficiency vs
Input Voltage
90
85
80
75
70
65
60
55
50
5 10
INPUT VOLTAGE (V)
WLED Driver
Evaluation Board
I = 20mA
LED
15 20 25
1
