  • Page 1 User Guide MP8833 Evaluation Kit (EVKT-MP8833)

  • Page 2: Table Of Contents

    3.4 Troubleshooting Tips ........................9 Section 4. I C Transfer Data ........................ 11 Section 5. Ordering Information ......................12 MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.

  • Page 3: Overview

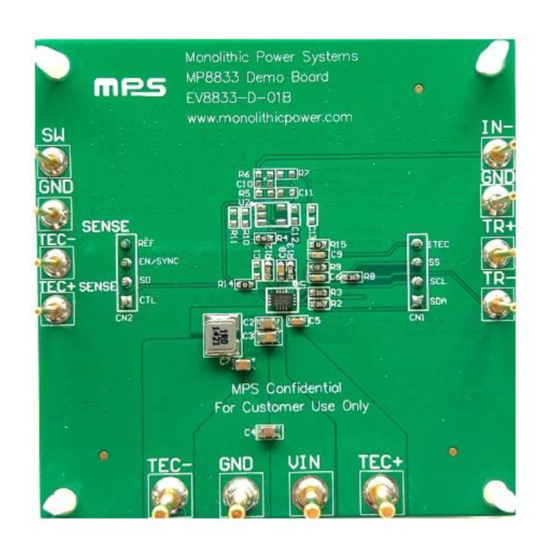

    MP8833 Evaluation Kit (EVKT-MP8833 Overview Introduction The EVKT-MP8833 is an evaluation kit for the MP8833, which is a monolithic thermoelectric cooler controller with built-in internal power MOSFETs. The MP8833 provides features such as TEC voltage/current limiting, and can be controlled through an I C serial interface.

  • Page 4: Features And Benefits

    User Guide MP8833 Evaluation Kit (EVKT-MP8833 Features and Benefits The MP8833 is highly customizable. Users can program the MP8833 via the MPS I C GUI. ⚠ Any changes made in I C mode are not retained once the EVB shuts down.

  • Page 5: Section 1. Hardware Specifications

    EVB, the PC, and its supporting accessories. It provides I C and PMBus capabilities. Together with the Virtual Bench Pro and GUI tools, it provides a quick and easy way to evaluate the performance of MPS digital products. For more details, refer to the EVKT-USBI2C-02 datasheet.

  • Page 6: Section 2. Software Requirements

    Note: This software can be downloaded from the MPS website. 1. Download the GUI installation file tiled “MP8833 GUI” from the MPS website. 2. Extract the zip package and double-click the .exe file to open the set-up guide (see Figure 4). If a protection window comes up, click “More info,”...

  • Page 7: Section 3. Evaluation Kit Test Set-Up

    If the connection is successful, the address will be listed in the section titled “Slave Address” (see Figure 7). MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.
  • Page 8 No Slave Found, Please check the connection! Figure 8: Warning Indicates Unsuccessful Connection – Evaluation Board Not Connected MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.
  • Page 9 C register values should be read automatically and displayed on the right (see Figure 10). Figure 10: Values from I C Shown in Table MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.

  • Page 10: Troubleshooting Tips

    Figure 12: Updating the Driver Software 2. Click “Browse My Computer for Driver Software,” find the driver, and install. MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.
  • Page 11 PC with the USB cable. Figure 13: Determining the Driver Software MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.

  • Page 12: Section 4. I C Transfer Data

    NA = Not Acknowledge (SDA = High) P = Stop Condition Slave to Master Figure 15: I C Read Example MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.

  • Page 13: Section 5. Ordering Information

    C communication interface device, one EVKT-USBI2C-02 USB cable, and one ribbon cable Order directly from MonolithicPower.com or our distributors. MP8833 Evaluation Kit User Guide Rev 1.0 www.MonolithicPower.com 2/27/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2020 MPS. All Rights Reserved.
