GENERAL DESCRIPTION

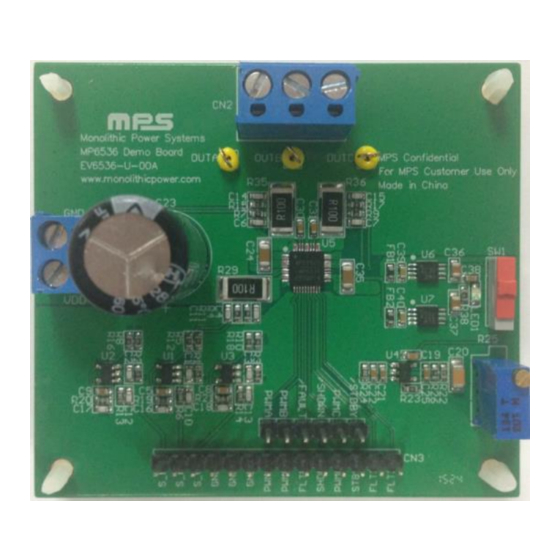

The EV6536-U-00A is the evaluation board for
the MP6536, a three-phase BLDC motor driver.
It accepts PWM modulated inputs for operation.
The MP6536 features a low current shutdown
mode, standby mode, input under voltage
protection, current limit, thermal shutdown and
fault flag signal output. All channels of drivers
interface with standard logic signals.
The MP6536 is available in a 40 lead QFN 5X5
package.
ELECTRICAL SPECIFICATIONS
Parameter
Symbol
Supply Voltage
Peak Output Current
EV6536-U-00A EVALUATION BOARD
EV6536-U-00A Rev. 1.1
2/12/2019
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
Value
Units
5 – 26
V
V
DD
I
5.5
A
PEAK
(L x W x H) 2.8" x 2.5" x 1.3"
(7cm x 6.3cm x 3.4cm)
Board Number
EV6536-U-00A
www.MonolithicPower.com
© 2019 MPS. All Rights Reserved.
5V to 26V, 5.5A Three-Phase Brushless
FEATURES
5V to 26V VDD
±5.5A Peak Current Output
Up to 1MHz Switching Frequency
Current Sense Output
Optional 3.3V or 5V Logic Power Supply on
Board
All Switches Current Limited
Internal Under Voltage Protection
Internal Thermal Protection
Short-circuit Protection
Fault Output Flag
APPLICATIONS
Three-phase Brushless DC Motors and
Permanent Magnet Synchronous Motors
Power Drills
Impact Drivers
All MPS parts are lead-free and adhere to the RoHS directive. For MPS green
status, please visit MPS website under Products, Quality Assurance page.
"MPS" and "The Future of Analog IC Technology" are Registered Trademarks
of Monolithic Power Systems, Inc.
MPS IC Number
MP6536DU
EV6536-U-00A
DC Motor Driver
Evaluation Board
1
