The Future of Analog IC Technology
DESCRIPTION

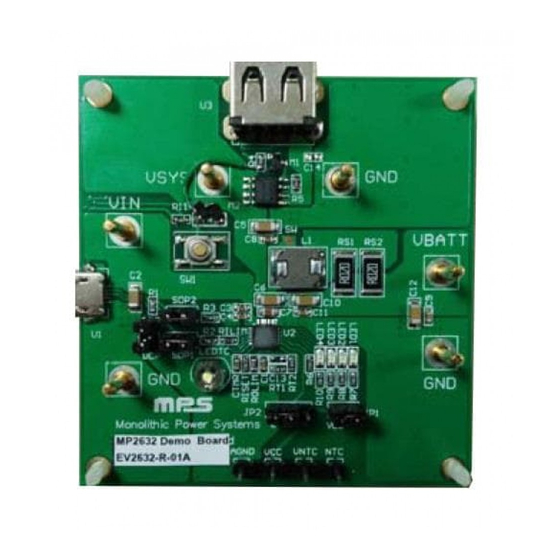

The EV2632-R-01A is the evaluation board
designed to demonstrate the capabilities of
MPS' MP2632, a highly-integrated, flexible
switch-mode battery charge management for a
single-cell Li-ion and Li-Polymer battery used in
a wide range of applications.
EV2632 uses two operating modes—charge
mode and boost mode—to allow management
of system and battery power based on the state
of the input.
When input power is present, the board
charges
a
programmable charge current of up to 3A.
In the absence of an input source, the board
switches to boost mode through the PB pin to
power the SYS pins from the battery with a
current of up to 3A.
The evaluation board provides 4-LED to
achieve the voltage based fuel gauge indication
and distinguish charge mode from boost mode.
To guarantee safe operation, the EV2632 has
input-over-voltage
voltage protection, thermal shutdown, battery-
temperature monitoring, and a programmable
timer to prevent prolonged charging of a dead
battery.
ELECTRICAL SPECIFICATION
Parameter
Charge Mode
Input Voltage Range
Charge-Full Voltage
Charge Current
Input Current Limit
Boost Mode
Battery Voltage
SYS Voltage
Regulation
SYS Output Current
Limit
EV2632-R-01A Rev. 1.01
1/14/2016
Arrow.com.
Downloaded from
single-cell
battery
protection,
battery
Symbol
Value
V
4.65 – 6
IN
V
4.2 / 4.35
BATT_Full
/ 4.45
I
3
CHG
I
2.7
IN_LIM
V
3-4.5
BATT
V
SYS
5
I
SYS
3
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
Evaluation Board of All-in-one
3A Battery Charge and 3A Boost Discharge
FEATURES
4.65V-to-6V Operating Input Voltage Range
Power Management Function Integrated
Input-Current-Limit
Regulation
Up to 3A Programmable Charge Current
Selectable 4.45V / 4.35V / 4.2V Charge
Voltage with 0.5% Accuracy
Battery Temperature Monitoring
4-LED for battery fuel gauge indication
Programmable Timer Back-Up Protection
Battery-Reverse-Leakage Blocking
Reverse-Boost-Operation
with
a
System
Up to 94% 5V Boost Mode Efficiency @ 3A
with BATT=4.5V
Up to 3A Programmable Output Current
Limit in Boost Mode
APPLICATIONS
• Sub-battery Applications
• Power-bank Applications for Smart-Phone,
Tablet and Other Portable Devices
over-
All MPS parts are lead-free, halogen free, and adhere to the RoHS
directive. For MPS green status, please visit MPS website under Quality
Assurance.
"MPS" and "The Future of Analog IC Technology" are Registered
Trademarks of Monolithic Power Systems, Inc.
Units
V
V
A
A
V
V
A
www.MonolithicPower.com
© 2016 MPS. All Rights Reserved.
EV2632-R-01A
and
Input
Voltage
for
Powering
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EV2632-R-01A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MPS EV2632-R-01A

  • Page 1 Tablet and Other Portable Devices input-over-voltage protection, battery over- All MPS parts are lead-free, halogen free, and adhere to the RoHS voltage protection, thermal shutdown, battery- directive. For MPS green status, please visit MPS website under Quality Assurance. temperature monitoring, and a programmable “MPS”...
  • Page 2: Evaluation Board Schematic

    RISET = 150K for 1A ICHG, 75K for 2A ICHG, 49.9K for 3A for ICHG RILIM = 88.7K for 450mA ILIM, 49.9K for 810mA ILIM, 14.7K for 2.7A ILIM EV2632-R-01A Rev. 1.01 www.MonolithicPower.com 1/14/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. Arrow.com. Arrow.com. Downloaded from...
  • Page 3 2mm terminal PGND,VSYS, PGND DCP, JP1, Jumper, 2.54mm SDP1, SDP2 EV2632-R-01A Rev. 1.01 www.MonolithicPower.com 1/14/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
  • Page 4: Printed Circuit Board Layout

    Figure 1: Top Silkscreen Layer Figure 2: Top Layer Figure 3: Bottom Layer NOTE: EV2632-R-01A is modified from EV2632-R-00A by adding M3 manually, so the PCB layout has no difference of the two boards. EV2632-R-01A Rev. 1.01 www.MonolithicPower.com 1/14/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
  • Page 5 For the other detailed description on the operation of the MP2632, please refer to the datasheet. EV2632-R-01A Rev. 1.01 www.MonolithicPower.com 1/14/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. Arrow.com. Arrow.com. Arrow.com.
  • Page 6: Equipment Requirement

    DCP SDP1 EV2632-R-01A VNTC AGND VCC Figure 4: Setup for Charge Mode EV2632-R-01A Rev. 1.01 www.MonolithicPower.com 1/14/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...
  • Page 7 NOTICE: The information in this document is subject to change without notice. Users should warrant and guarantee that third party Intellectual Property rights are not infringed upon when integrating MPS products into any application. MPS will not assume any legal responsibility for any said applications.
