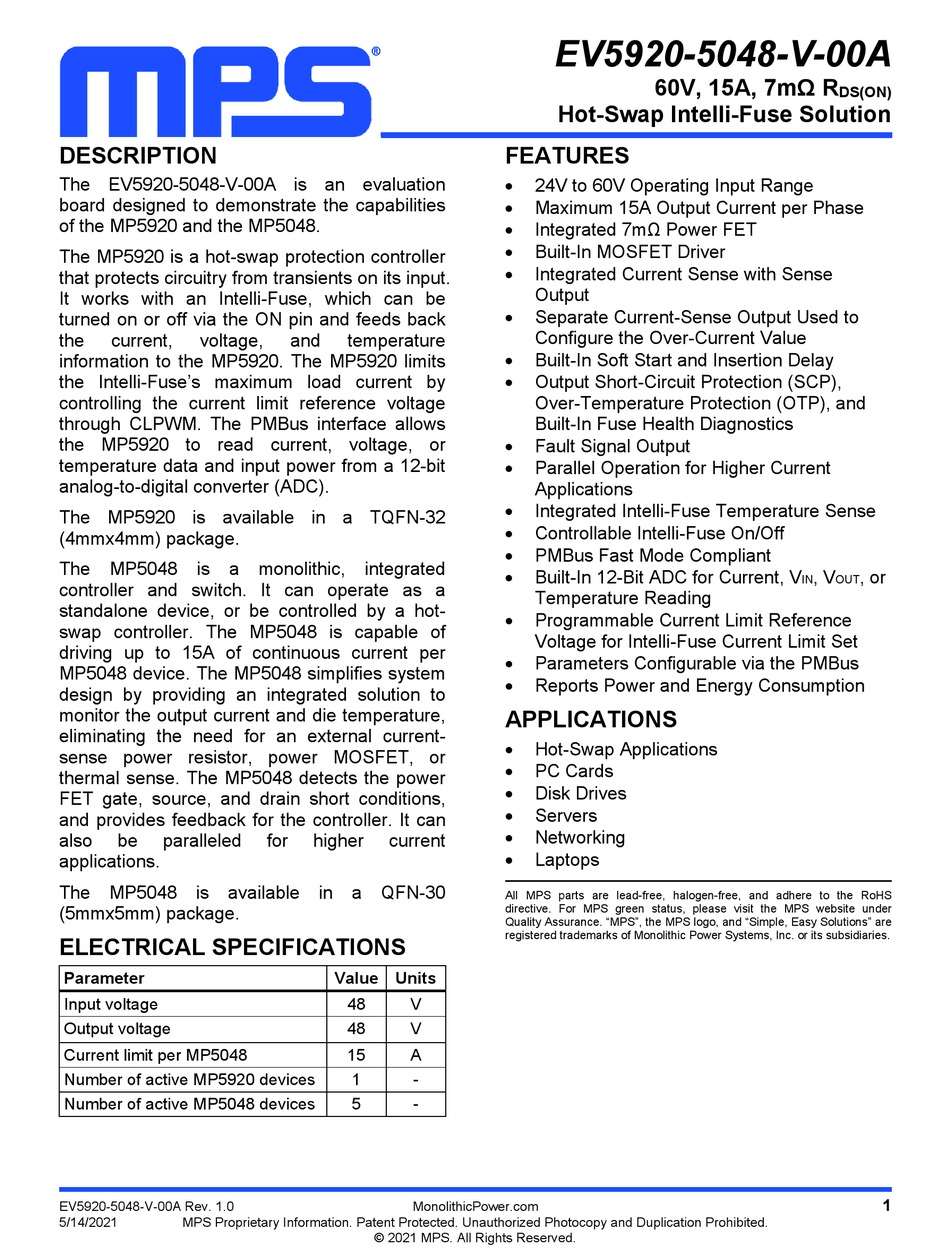

MPS EV5920-5048-V-00A Quick Start Manual

DESCRIPTION

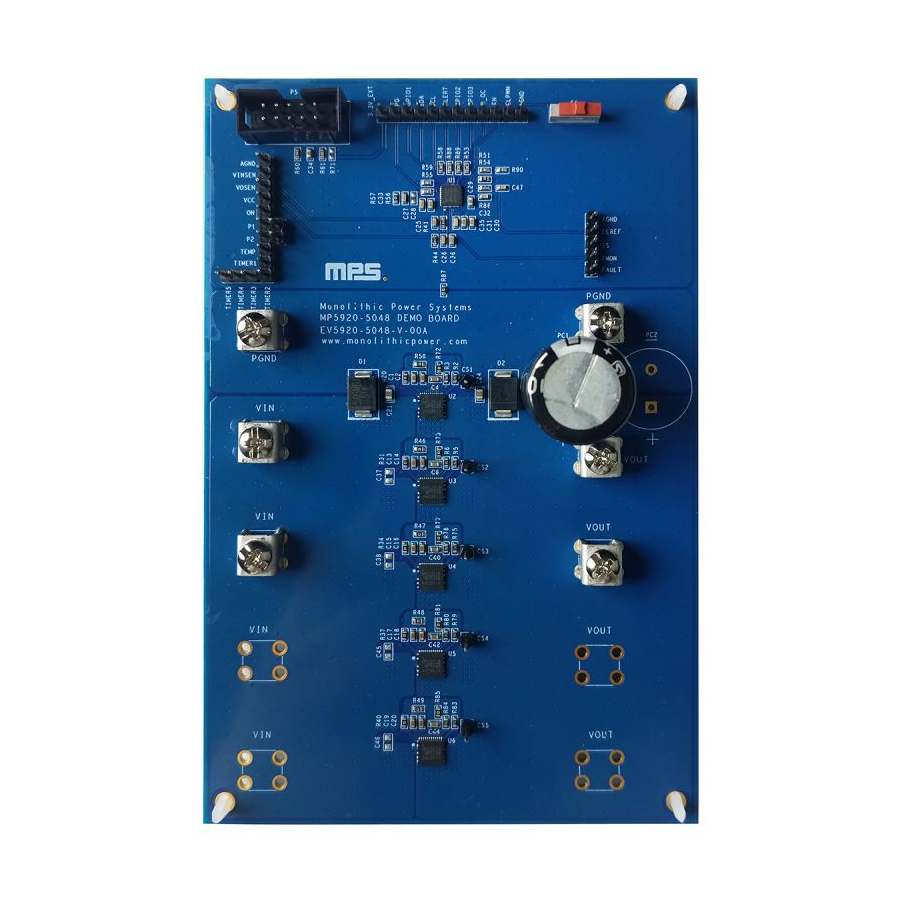

The EV5920-5048-V-00A is an evaluation
board designed to demonstrate the capabilities
of the MP5920 and the MP5048.
The MP5920 is a hot-swap protection controller
that protects circuitry from transients on its input.
It works with an Intelli-Fuse, which can be
turned on or off via the ON pin and feeds back
the current, voltage,
information to the MP5920. The MP5920 limits
the Intelli-Fuse's maximum load current by
controlling the current limit reference voltage
through CLPWM. The PMBus interface allows
the MP5920 to read current, voltage, or
temperature data and input power from a 12-bit
analog-to-digital converter (ADC).
The MP5920 is available in a TQFN-32
(4mmx4mm) package.
The MP5048 is a
controller and switch. It can operate as a
standalone device, or be controlled by a hot-
swap controller. The MP5048 is capable of
driving up to 15A of continuous current per
MP5048 device. The MP5048 simplifies system
design by providing an integrated solution to
monitor the output current and die temperature,
eliminating the need for an external current-
sense power resistor, power MOSFET, or
thermal sense. The MP5048 detects the power
FET gate, source, and drain short conditions,
and provides feedback for the controller. It can
also be paralleled
applications.
The MP5048 is available in a QFN-30
(5mmx5mm) package.
ELECTRICAL SPECIFICATIONS
Parameter
Input voltage
Output voltage
Current limit per MP5048
Number of active MP5920 devices
Number of active MP5048 devices
EV5920-5048-V-00A Rev. 1.0
5/14/2021 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
and temperature
monolithic, integrated
for higher current
Value Units
48 V
48 V
15 A
1 -
5 -
MonolithicPower.com
© 2021 MPS. All Rights Reserved.
EV5920-5048-V-00A
60V, 15A, 7mΩ R
Hot-Swap Intelli-Fuse Solution
FEATURES

24V to 60V Operating Input Range

Maximum 15A Output Current per Phase

Integrated 7mΩ Power FET

Built-In MOSFET Driver

Integrated Current Sense with Sense
Output

Separate Current-Sense Output Used to
Configure the Over-Current Value

Built-In Soft Start and Insertion Delay

Output Short-Circuit Protection (SCP),
Over-Temperature Protection (OTP), and
Built-In Fuse Health Diagnostics

Fault Signal Output

Parallel Operation for Higher Current
Applications

Integrated Intelli-Fuse Temperature Sense

Controllable Intelli-Fuse On/Off

PMBus Fast Mode Compliant

Built-In 12-Bit ADC for Current, V
Temperature Reading

Programmable Current Limit Reference
Voltage for Intelli-Fuse Current Limit Set

Parameters Configurable via the PMBus

Reports Power and Energy Consumption
APPLICATIONS

Hot-Swap Applications

PC Cards

Disk Drives

Servers

Networking

Laptops
All MPS parts are lead-free, halogen-free, and adhere to the RoHS
directive. For MPS green status, please visit the MPS website under
Quality Assurance. "MPS", the MPS logo, and "Simple, Easy Solutions" are
registered trademarks of Monolithic Power Systems, Inc. or its subsidiaries.
DS(ON)
, V , or
IN OUT
