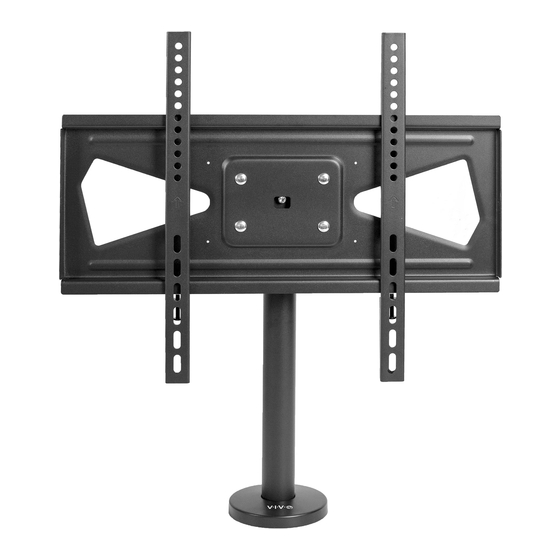

Bolt-Down TV Mount
Instruction Manual
SKU: STAND-TV00M4
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv00m4
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-TV00M4
Summary of Contents for Vivo STAND-TV00M4
- Page 1 Bolt-Down TV Mount Instruction Manual SKU: STAND-TV00M4 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv00m4 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Slide Base Cover (A1) up to reveal mounting holes on backside of Pole (A). STEP 2 Position Pole (A) on the desktop and use a 3/16” drill bit to drill pilot holes. For desktops 1” thick, secure with M6x25mm Screws (S-C). For desktops greater than 1” thick, use M6x30mm Screws (S-D).
- Page 4 STEP 3 Attach TV Plate (D) to mounting head on Pole (A) using M6x16mm Carriage Bolts (S-A), M6 Nuts (S-B) and Wrench (T-B). STEP 4 Position the VESA Bracket (B) on the back of the TV, making sure the hooks are towards the top of the TV.
- Page 5 STEP 5 Loosen Set Screws (B1) on VESA Brackets (B) with a Phillips screwdriver and hang TV over TV Plate (D). use a Phillips screwdriver to tighten security screws underneath to secure.
- Page 6 STEP 6 Install Stoppers (C) on the TV Plate (D) to prevent the TV from sliding.
- Page 7 STEP 7 Adjust swivel tension using the Allen wrench (J). Manage cables using cable holes in pole.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
