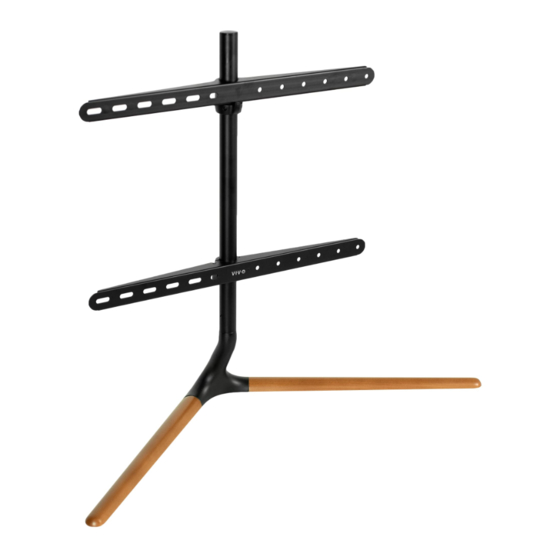

Dark walnut tabletop tv stand

Advertisement

Quick Links

Dark Walnut Tabletop TV Stand
Instruction Manual
SKU: STAND-TV07A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv07a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-TV07A and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-TV07A

  • Page 1 Dark Walnut Tabletop TV Stand Instruction Manual SKU: STAND-TV07A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv07a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Tools Needed

    DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting hardware for brick and concrete walls. If unsure, please contact us at vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303. ASSEMBLY STEPS...
  • Page 4 STEP 3 Loosen the collar on Base (A) using 4mm Allen Wrench (T-A). Adjust the collar to the desired height, and tighten with 4mm Allen Wrench (T-A). NOTE: The recommended height for the collar is between 50-150mm (2”-5.9”) from the top of Base (A). Collar STEP 4 Remove the Security Screw (E1) from Lower VESA Bracket (E) and open the clamp.
  • Page 5 STEP 5 OPTION A: Flat Back Monitor Position VESA brackets horizontally on the back of the TV, making sure Upper VESA Bracket (D) is on top and Lower VESA Bracket (E) is below. Secure using screws (M-A or M-B) with Square Washers (M-F) and M5 Washers (P-G) and Security Clips (P-B) installed to top holes.
  • Page 6 STEP 6 Slide the TV with VESA Brackets (D, E) onto Base (A). Rest Upper VESA Bracket (D) on the collar of Base (A). Close the clamp on Lower VESA Bracket (E) over the pole and secure with the previously removed Security Screw (E1).
  • Page 7 STEP 7 (Option A Continued) Wood Stud Wall Mount Security Bracket (P-C) to the wall usinig ST4.8x38mm Screw (P-E). STEP 7 (Option B) Concrete/Brick Wall Using Security Bracket (P-C) as a guide, mark the drilling location on the wall at the same height as Upper VESA Bracket (D).
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
