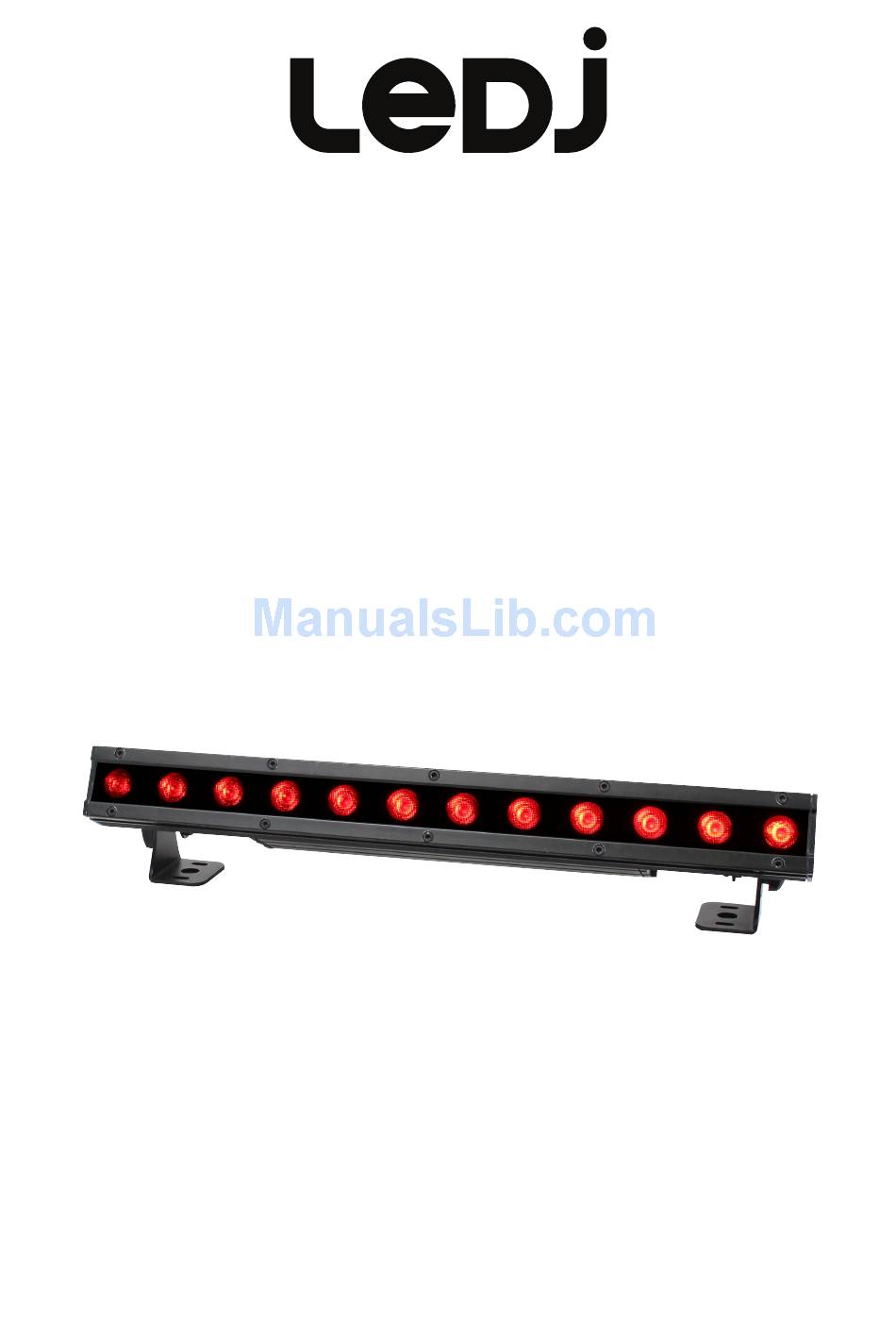

- Page 1 Fresco 12 RGBW Exterior Fixture User Manual Order code: LEDJ268...
-
Page 2: Safety Advice
• Always disconnect the power from the mains when product must be installed by a qualified technician in equipment is not in use or before cleaning! Only handle accordance with local territory regulations. The safety of the power-cable by the plug. Never pull out the plug by the installation is the responsibility of the installer. The pulling the power-cable. fixture presents risks of severe injury or death due to fire • Make sure that the available mains supply voltage is hazards, electric shock and falls. between 100~240V AC, 50/60Hz. • Warning! Risk Group 2 LED product according to • Make sure that the power cable is never crimped or EN 62471. Do not view the light output with optical damaged. Check the equipment and the power cable instruments or any device that may concentrate the beam. periodically. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Fresco 12 RGBW User Manual... - Page 3 4 button menu with LCD display Dimensions 115 x 485 x 57mm • IP rated power input/output trailing connections Weight • IP rated 3-Pin DMX input/output trailing connections Order code LEDJ268 • Convection cooled 15° x 37° - Lux FULL ON 5680 1421 1280 80.3 51.4 2370 94.9 20.3 2110 84.5 15° x 37° 485mm 57mm www.prolight.co.uk Fresco 12 RGBW User Manual...
-
Page 4: Technical Specifications
DOWN POWER CONSUMPTION: 58W 01 - LCD display In the box: 1 x fixture, 02 - Function buttons 06 - IP rated power trailing output 1 x eyebrow, 03 - IP rated 3-Pin DMX trailing input 07 - Safety eyes 1 x power cable 04 - IP rated 3-Pin DMX trailing output 08 - Hanging brackets & 1 x user manual 05 - IP rated power trailing input 09 - Hanging bracket adjustable knobs Fuse: The Fresco 12 RGBW is fitted with an internal mains (line) fuse. The fuse must only be changed by qualified personnel. Before opening the fixtures housing or changing the fuse, the fixture must be disconnected and isolated from the mains supply. Replacement cartridge fuses must be of the same type and rating (20mm Glass T1A 250V). When closing the fixture please ensure the seal is correctly positioned and free from damage to ensure the fixture is water tight and to prevent water ingress. www.prolight.co.uk Fresco 12 RGBW User Manual... -
Page 5: Operating Instructions
YELLOW GREEN STATIC COLOR CYAN Static Colour Mode BLUE PURPLE WARM WHITE COOL WHITE MASTER DIM 000-255 (000-100%) Master Dimmer RED: GREEN: MANUAL DIM 000-255 Manual Dimming Mode BLUE: WHITE: RED: PIXEL GREEN: SET WHITE BAL 000-255 White Balance Setting 001-002 BLUE: WHITE: LINEAR SQUARE DIMMER CURVE Dimming Curves Setting INV.SQUARE S-CURVE www.prolight.co.uk Fresco 12 RGBW User Manual... -
Page 6: Dimmer Speed
090-099 Strobe (slow-fast) when CH1 is between 100-109 009-149 110-119 Master dimmer (0-100%) 120-129 130-139 Speed (slow-fast) 140-149 RGBW when CH1 is between 150-255 150-159 CFade 160-169 Meteor 170-179 Fade 180-189 Change 190-199 Flow1 200-209 Flow 2 210-219 Flow 3 220-229 Flow 4 230-239 Flow 5 240-255 Flow 6 www.prolight.co.uk Fresco 12 RGBW User Manual... - Page 7 000-255 White dimmer (0-100%) Channel Value Function 000-255 Master dimmer (0-100%) 000-255 Red dimmer (0-100%) 000-004 No function 000-255 Green dimmer (0-100%) Left 005-255 Strobe (slow-fast) 000-255 Blue dimmer (0-100%) Half 000-255 White dimmer (0-100%) 000-255 Master dimmer (0-100%) 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) Right 000-255 Blue dimmer (0-100%) Half 000-255 White dimmer (0-100%) 000-255 Master dimmer (0-100%) www.prolight.co.uk Fresco 12 RGBW User Manual...
-
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: LEDJ 1m Interior - LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Exterior DMX cable DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91 Order code: LEDJ141 Order code: LEDJ142 Order code: LEDJ143 Order code: LEDJ144 LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior LEDJ Spectra Series Power cable Power cable Power cable Power cable End Cap Set Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 Order code: LEDJ93 www.prolight.co.uk Fresco 12 RGBW User Manual... - Page 9 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fresco 12 RGBW User Manual...
-
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fresco 12 RGBW User Manual... - Page 11 Fresco 12 RGBW User Manual...
- Page 12 Fresco 12 RGBW User Manual...
