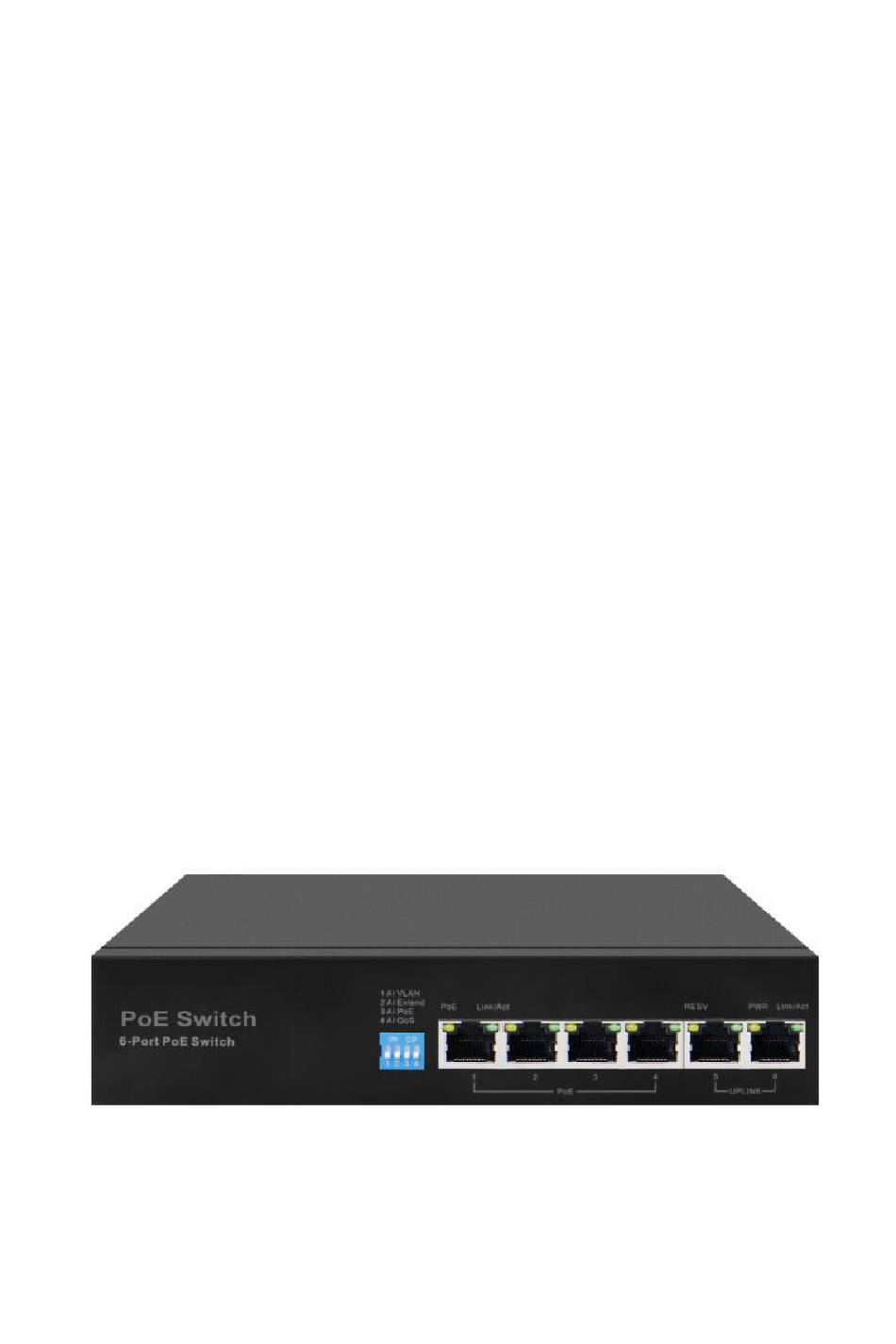

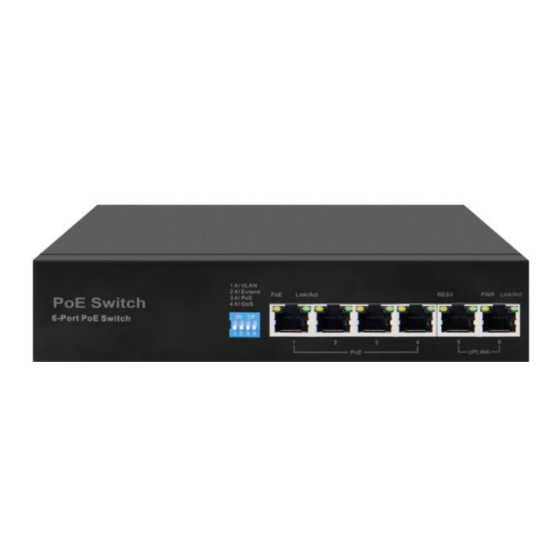

- Page 1 User Manual AI606 6 Port AI PoE Switch...
- Page 2 Overview AI606 is 6 port built-in power 10/100Mbps t has 4 working modes,AI VLAN mode, AI Extend mode., Standard mode,VLAN mode, Extend mode. In Standard mode, mode, AI PoE mode, AI QoS all ports are free to communicate; In VLAN mode is enabled, 1-4 ports are isolated from each other, which can effectively suppress network storms and improve network performance.
- Page 3 Technical Specification Network Port · 4 10/100Mbps PoE RJ45 port ( Port 1~ port4） · 2 10/100Mbps RJ45 port uplink(Port5~port 6) Transfer Rate · 100Mbps full Duplex，10 or 100Mbps Half Duplex Network protocol and · IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af, IEEE 802.3at standard 准...
- Page 4 Installation diagram： Notice ：The diagram is for reference only. Caution： In order to safety, please non-professionals don’t open the casing of product; 2. Please be careful the risk of strong current and security protection when products carry power; 3. Please select the right power adaptor provide power for PoE switch, before using please confirm if is it accord with the requirement of PoE switch;...
