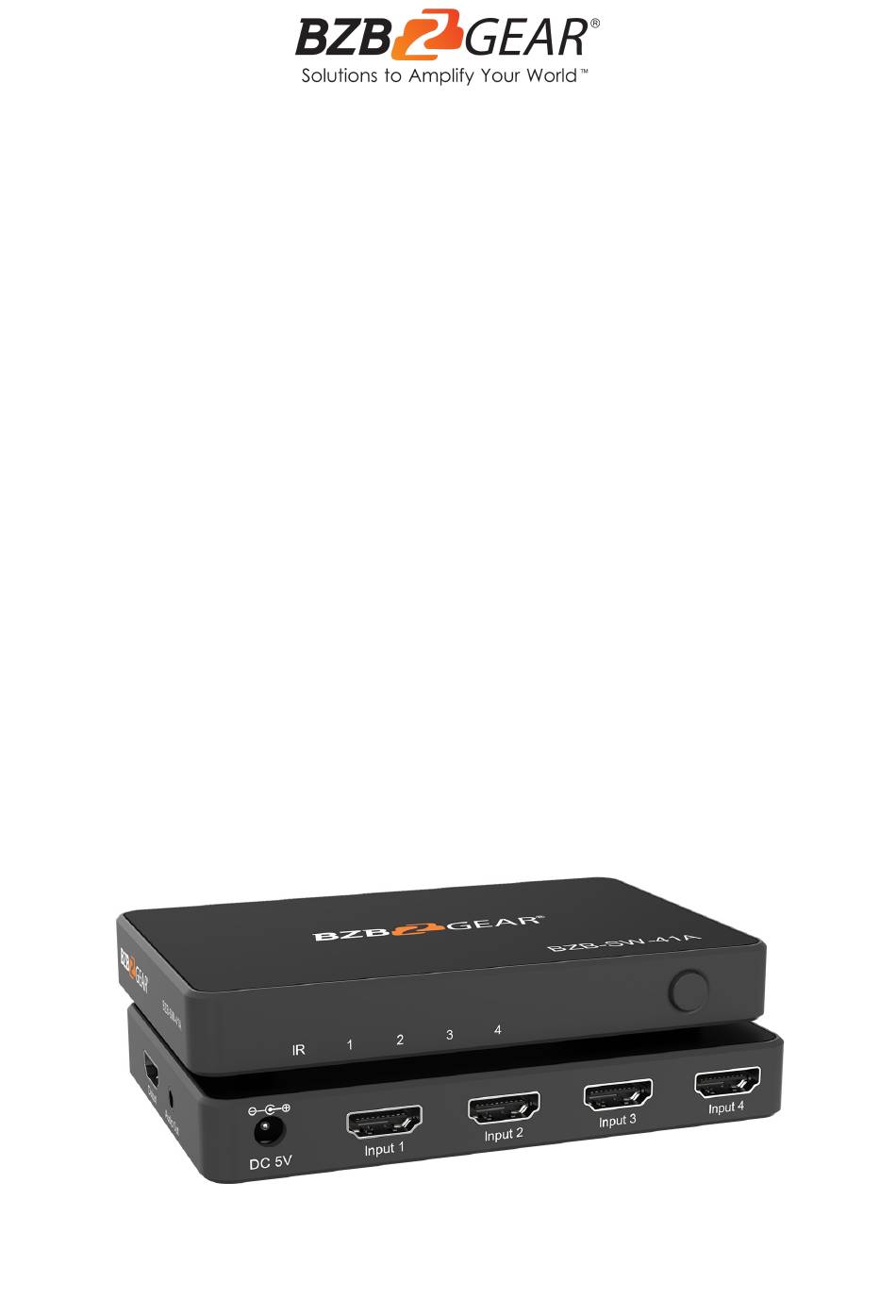

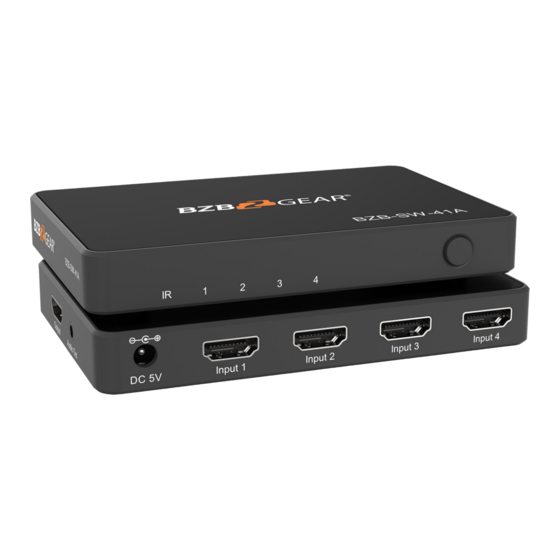

  • Page 1 BZB-SW-41A 4X1 4K 18Gbps UHD HDMI 2.0 Switcher with IR Remote Control User Manual...
  • Page 2 BZBGEAR BZB-SW-41A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 3: Table Of Contents

    BZBGEAR BZB-SW-41A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906...
  • Page 4: Statement

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.
  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BZB-SW-41A HDMI 18Gbps 4x1 switcher can switch any of the 4 connected HDMI 2.0 sources to an HDMI 2.0 display. It supports 10 bit HDR (High Dynamic Range) pass through and HDMI high resolution digital audio bypass as well as HDCP and CEC bypass. It can also extract HDMI audio to L/R analog output (LPCM only).
  • Page 6: Technical Specifications

    BZBGEAR BZB-SW-41A PRODUCT MANUAL Technical Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolutions up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth...
  • Page 7: Operation Controls And Functions

    BZBGEAR BZB-SW-41A PRODUCT MANUAL Operation Controls and Functions Front Panel 1. IR: Remote control receiver window. 2. HDMI Input LEDs 1-4: The LED will illuminate when the corresponding HDMI input is selected. 3. Select Button: Press this to switch between HDMI input sources.
  • Page 8 BZBGEAR BZB-SW-41A PRODUCT MANUAL Side Panel 6. HDMI Output: Connect to an HDMI display to view the input signal sources. 7. Audio Out: Connect to an external audio amplifier or TV L/R audio input port. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 9: Application Example

    BZBGEAR BZB-SW-41A PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 10: Tech Support

    1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com.
  • Page 11: Mission Statement

    AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·...
  • Page 12: Copyright

    PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
