Summary of Contents for BRONKHORST ES-FLOW 1 C Series

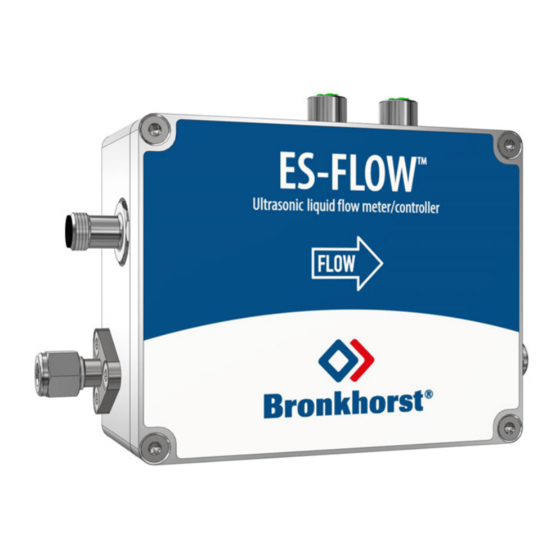

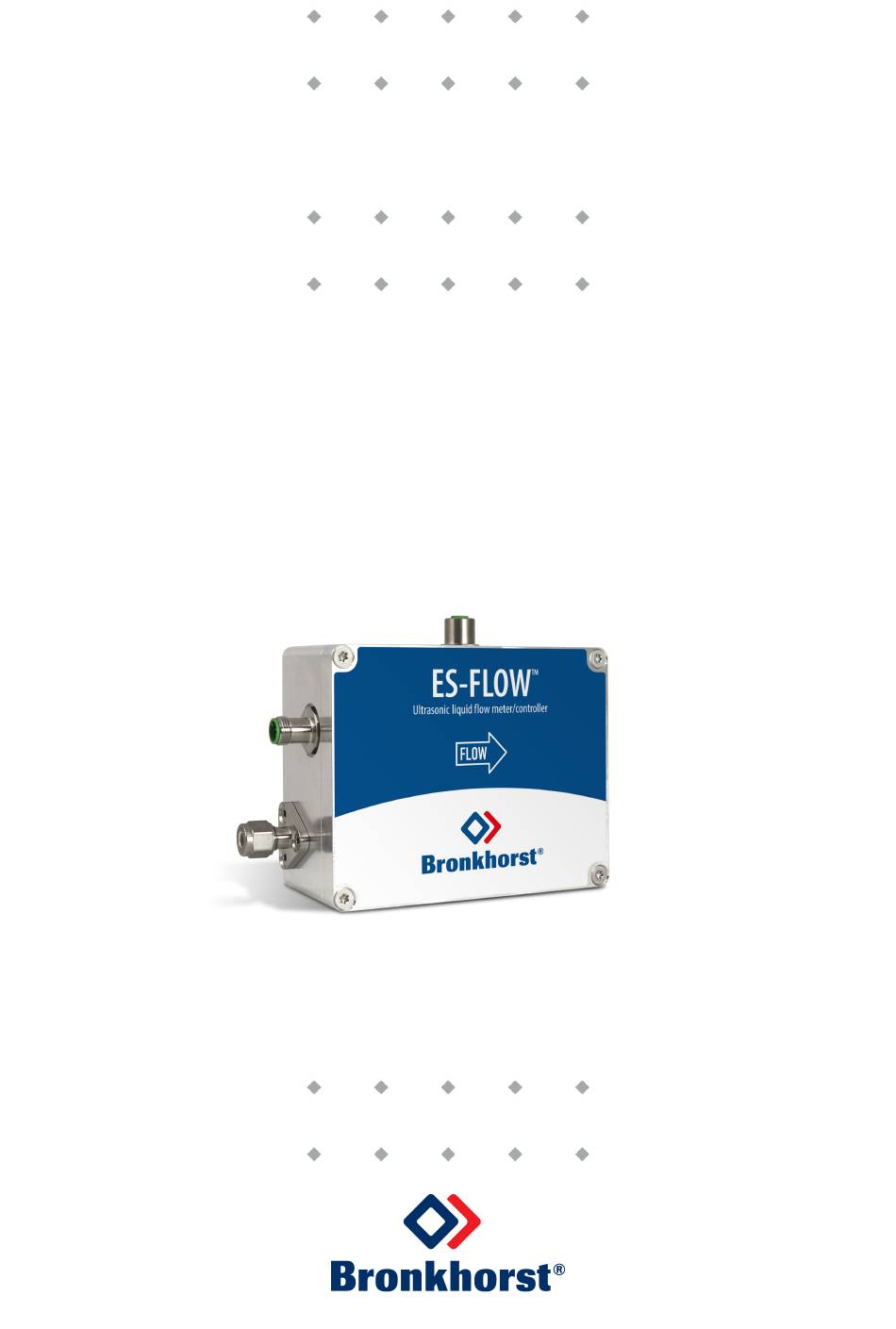

- Page 1 Instruction Manual ES-FLOW™ 1xxC Ultrasonic Liquid Flow Meter/Controller Doc. no.: 9.17.153 rev. E Date: 03-10-2022 ATTENTION Please read this document carefully before installing and operating the product. Not following the guidelines could result in personal injury and/or damage to the equipment.
- Page 2 Disclaimer This document has been reviewed and is believed to be accurate. Bronkhorst High-Tech B.V. does not assume liability for errors, inaccuracies or absence of information. The material in this document merely serves information and illustration purposes;...
- Page 3 Re-conditioning of products primarily returned for warranty service that is partly or wholly judged non-warranty may be charged for. Bronkhorst High-Tech B.V. or affiliated company prepays outgoing freight charges when any part of the service is performed under warranty, unless otherwise agreed upon beforehand. However, if the product has been returned collect to our factory or service center, these costs are added to the repair invoice.
- Page 4 Bronkhorst® Instruction Manual ES-FLOW™ 1xxC 9.17.153E...
-
Page 5: Table Of Contents
Bronkhorst® Table of contents ......................7... - Page 6 Bronkhorst® 6.3.2 Alarms ......................28 6.3.3...
-
Page 7: Introduction
Bronkhorst High-Tech B.V. cannot be held liable for any damage and/or injury resulting from unintended, improper or unsafe use, or use with other media and/or under other process conditions than specified at ordering time. -
Page 8: Product Overview
Bronkhorst® Product overview Front Power & signal connector 2. Fieldbus connector 1 (optional) 3. Fieldbus connector 2 (optional) 4. Actuator output connector Fluid inlet Fluid outlet Rear & top Indication LEDs multifunctional switch Mounting holes Instruction Manual ES-FLOW™ 1xxC 9.17.153E... -
Page 9: Documentation
The ES-FLOW™ comes with all necessary documentation for basic operation and maintenance. At some points this document refers to other documents, which can be downloaded from the Bronkhorst website. The documentation listed in the following table is available on the ES-FLOW™ product pages under www.bronkhorst.com/products... -
Page 10: Safety Notes
Unauthorized modifications can undo safety features, compromise system specifications (such as ingress protection rating) and cause failure to comply with applicable laws, regulations and directives. · If the product is defective or otherwise does not meet your requirements, please contact your Bronkhorst representative for assistance or advice. Tips and warnings At the factory the ES-FLOW™... - Page 11 When pressurizing, prevent pressure shocks by gradually bringing the fluid system to the required operating pressure. Bronkhorst does the utmost to ensure that you receive a clean product. This does not, however, relieve the user of the responsibility to ensure that the equipment and the system in which it is incorporated meet the requirements implied by the intended use of the product.
-
Page 12: Product Specifications
If you have a question about the product or if you find the product does not meet the specifications agreed upon, do not hesitate to contact your Bronkhorst representative. To enable us to help you quickly and effectively, make sure to have the serial number (SN) ready whenever seeking contact with your Bronkhorst representative about a specific item. -
Page 13: Model Key
Bronkhorst® Model key The model key on the serial number label contains information about the technical properties of the product as ordered. The actual properties of your instrument can be retrieved from the diagram below. 3.3.1 Customized I/O options ES-FLOW™ 1xxC instruments offer various customized input/output functions through pin 5 of the... - Page 14 Bronkhorst® Code Description B1V* 4…20 mA sourcing output, controller Analog signal for pump or external valve steering (control signal only). When the controller output is used for pump or external valve steering (mass flow meters only), make sure to set parameter Valve maximum to 0.3 [A]. For mass flow controllers, the controller output is limited to a value below 20 mA, due to the maximum valve current restriction.
- Page 15 (controller enabled, see model key). · If the controller is enabled, the M8 connector can always be used to control a Bronkhorst® valve (through pin 3). · Although it is theoretically possible to have 3 controller options installed, no more than 1 signal should be used at any time.
-
Page 16: Installation
Bronkhorst® Installation Mounting For stable fixation to a rigid and stable surface or construction, use the threaded mounting holes in the rear of the instrument housing (see product overview). Consult the dimensional drawing for the exact size and locations. 4.1.1 Location Gas bubbles in the liquid can lead to measuring errors. -
Page 17: Electrical Connections
Route cables as closely as possible alongside metal structures or components. · Ensure all electrical components are grounded to earth. When in doubt about the shielding of your cabling and/or electrical connections, contact your Bronkhorst representative. Always turn off electrical power before connecting or disconnecting equipment electrically. Fieldbus connection Never power the instrument simultaneously from two different power sources (e.g. -
Page 18: Operation
First use Bronkhorst does the utmost to ensure that you receive a clean product. This does not, however, relieve the user of the responsibility to ensure that the equipment and the system in which it is incorporated meet the requirements implied by the intended use of the product. -
Page 19: Default Valve State
Bronkhorst® 5.4.2 Default valve state When a controlling instrument is not powered or cannot communicate with the fieldbus network (if applicable), all electrical valves operated by the instrument (whether integrated or external) automatically return to their default state. The default state is closed for 'normally closed' valves (n/c) and fully open for 'normally open' valves (n/o). -
Page 20: Power-Up Functions
Bronkhorst® 5.5.1.2 Power-up functions · In order to access these functions, press and hold the switch while powering up the instrument. · As long as the switch is held, the LEDs show a repeating sequence of patterns, where each pattern indicates a function. -
Page 21: Network Settings - Readout/Change
Bronkhorst® To execute a step, follow these instructions: · Press and hold the switch (flashing slows) · To select value 0 (zero), release the switch within 1 second, otherwise: · Count the number of LED flashes · Release the switch when the required value is reached ·... -
Page 22: Disabling Multifunctional Switch
Adjusting zero point Zero-stability The zero point of a Bronkhorst® flow meter/controller (the measurement signal that indicates the absence of a flow) is factory adjusted with water at approximately 20 °C and atmospheric pressure (ambient conditions), with the instrument positioned upright. Under normal circumstances, the zero point will remain stable. However, in rare cases (for example due to strong fluctuations in temperature and/or pressure), the instrument might develop a slight deviation of the measured value from the zero point, causing it to detect a flow when in reality there is none. -
Page 23: Manual Procedure
Bronkhorst® Prerequisites Zeroing an instrument requires that: · the ambient conditions (temperature, pressure) match those of the operating environment of the instrument. · the instrument is filled homogeneously and pressurized with the operational media, according to the typical process conditions. -
Page 24: Digital Procedure On Profibus Dp
Bronkhorst® 5.6.3 Digital procedure on PROFIBUS DP For instruments with a PROFIBUS DP interface, the procedure to be followed differs slightly: To adjust the zero point through bus communication in a PROFIBUS DP system, set (write) parameter values in the following... -
Page 25: Digital Communication
Bronkhorst® Digital communication RS-232 communication Digital Bronkhorst® instruments can be monitored and operated via RS-232 using the free FlowWare software tools for Windows. These tools provide a graphical interface to the ProPar protocol, for monitoring and editing parameter values. The FlowWare toolkit provides functionality for monitoring and operating digital instruments (FlowSuite, FlowPlot), selection of the active fluid and configuration of the fieldbus connection (if applicable). -
Page 26: Measurement And Control
Modbus address blocks are two bytes big. Larger data types use up to 8 subsequent address blocks, resulting in a maximum variable length of 16 bytes. Values longer than the maximum length are truncated. For more detailed information about setting up a Modbus network with Bronkhorst® instruments, consult the Modbus manual (see Documentation). -
Page 27: Advanced Measurement And Control
Bronkhorst® 6.3.1.1 Advanced measurement and control Fmeasure Type Access Range FlowDDE FLOW-BUS Modbus Float -3.4E+38… 33/0 0xA100…0xA101/ 41217…41218 3.4E+38 This parameter represents the value of parameter Measure, expressed in the selected Capacity Unit. Its value is calculated from the dimensionless value of Measure, using the fluid set parameters Capacity 100% and Capacity Unit. -
Page 28: Alarms
Bronkhorst® 6.3.2 Alarms Alarm settings are most easily accessible using FlowSuite, FlowPlot or FlowView or a Bronkhorst® readout and control unit. The built-in alarm functionality can be used to handle different alarm types: · system errors and warnings · min/max alarms ·... - Page 29 Bronkhorst® Alarm Maximum Limit Type Access Range FlowDDE FLOW-BUS Modbus Unsigned int 0…32000 97/1 0x0C21/3106 Maximum limit for Measure to activate the maximum alarm situation (after Alarm Delay Time). Range 0…32000 represents 0… 100% signal. Alarm Maximum Limit must be greater than Alarm Minimum Limit.
-
Page 30: Counter
6.3.3 Counter · Counter settings are most easily accessible using FlowSuite, FlowPlot or FlowView or a Bronkhorst® readout and control unit. · When the instrument is powered down, it remembers the state of the counter. If the counter is active when the instrument is powered down, it is activated when powered up and then continues to count from the value at the time of power down. -
Page 31: Network Configuration
Bronkhorst® Counter New Setpoint Type Access Range FlowDDE FLOW-BUS Modbus Unsigned int 0…32000 104/6 0x0D06/3335 New (safe) setpoint when a counter limit is reached until reset. Range 0…32000 represents 0…100% setpoint. Default value: 0 Reset Counter Enable Type Access Range... -
Page 32: Fluid
Bronkhorst® Fieldbus1 Baud Rate Type Access Range FlowDDE FLOW-BUS Modbus Unsigned long 0…1.0E10 125/9 0xFD48…0xFD49/64841…64842 Fieldbus1 Parity Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…2 125/12 0x0FAC/4013 The following values are supported: Value Description No parity Odd parity Even parity... -
Page 33: Controller
Controller The picture below is a simplified visualization of the PID controller algorithm (proportional, integral, derivative) used by digital Bronkhorst® instruments. The controller speed controls the overall performance of the controller algorithm. Basically, to adjust the controller response, only the controller speed needs to be changed. - Page 34 Bronkhorst® The algorithm is based upon the difference between the setpoint and the measured value (called the error value). The correction signal to eliminate the error is assembled from 3 components (giving the algorithm its name): · The P-action (proportional) multiplies the error value by a constant factor, to adjust the measure towards the (new) setpoint.
-
Page 35: Master/Slave Configuration (Flow-Bus)
Bronkhorst® Normal Step Response Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…255 114/5 0x0E45/3654 Response factor, applied to proportional action during normal control (at setpoint step). · Default value: 128 (no correction) · Other values adjust the controller gain (correction signal) as follows: Controller gain = Controller Speed * PID-Kp * (response factor - 128) 1.05... -
Page 36: Device Identification
Instrument serial number for identification. BHT Model Number Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[35] 113/2 0xF110…0xF117/ 61713…61720 This parameter shows the Bronkhorst® instrument model type information. Firmware Version Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[6] 113/5 0xF128…0xF12A/ 61737…61739... -
Page 37: Special Parameters
Bronkhorst® 6.3.9 Special parameters Init Reset Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 82/64 0/10 0x000A/11 Init Reset is used to unlock secured parameters (marked with a symbol) for writing. It supports the following values: Value Description unlocked, secured parameters can be read and written to locked, secured parameters are read-only At power-up, Init Reset is always set to ‘Locked’... -
Page 38: Default Control Mode
Control mode 18 prevents the instrument from assuming its default/safe state in the event of a digital communication failure. · The column labeled List option shows the control modes as used in Bronkhorst® software. Calibration Mode Type Access Range FlowDDE... - Page 39 Bronkhorst® The procedures described above do not change the value of parameter Control Mode. To apply the new default control mode, reset or restart the instrument. 9.17.153E Instruction Manual ES-FLOW™ 1xxC...
-
Page 40: Maintenance
Inexpertly servicing instruments can lead to serious personal injury and/or damage to the instrument or the system it is used in. Servicing must therefore be performed by trained and qualified personnel. Contact your Bronkhorst representative for information about cleaning and calibration. Bronkhorst has trained staff available. -
Page 41: Troubleshooting And Service
To track down problems in the fluid system, depressurize the fluid system and disconnect the suspected unit from the process line. Dirt or clogging might be quickly detected by visual inspection of disassembled fluid connections. If you suspect leakage, do not disassemble the device for inspection, but contact your Bronkhorst representative for service or repairs. -
Page 42: Common Issues
Network configuration) Invalid baud rate Make sure instrument baud rate matches master/application baud rate Other Reset instrument and/or restart master. If problem persists, contact your Bronkhorst representative · No output signal No power supply Check power supply · Check cable connection ·... - Page 43 Remove gas from liquid tubing (see First use) Wrong controller settings Adjust settings (e.g. with FlowPlot) Control valve damaged Contact your Bronkhorst representative No flow (sending a setpoint has no No fluid supply Check upstream components for obstruction, effect) e.g.: ·...
-
Page 44: Service
Bronkhorst representative about a specific item. The serial number (SN) is the key to the original purchase order and can be found on the product. -
Page 45: Returns
(only if applicable, otherwise contact your Bronkhorst representative for local arrangements.) Disposal (end of lifetime) If you are a customer within the European Union and wish to dispose of Bronkhorst® equipment bearing the symbol of a crossed out waste disposal bin, you can return it in accordance with the removal and return instructions. - Page 46 Bronkhorst® Instruction Manual ES-FLOW™ 1xxC 9.17.153E...
-
Page 47: Parameter Index
Bronkhorst® Measure Parameter index Setpoint Setpoint Slope Parameters Temperature Parameters - Alarms Valve Output Alarm Delay Time Parameters - Network configuration Alarm Info Fieldbus1 Address Alarm Maximum Limit Fieldbus1 Baud Rate Alarm Minimum Limit Fieldbus1 Parity Alarm Mode Fieldbus2 Address...
