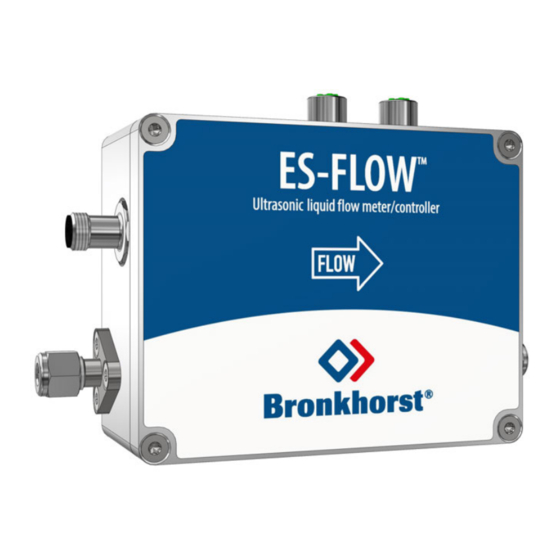

BRONKHORST ES-FLOW 1 C Series Instruction Manual

Ultrasonic liquid flow meter/controller
Hide thumbs Also See for ES-FLOW 1 C Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
ES-FLOW™ 1xxC
Ultrasonic Liquid Flow Meter/Controller
Doc. no.: 9.17.153 rev. A
Date: 24-06-2021
ATTENTION
Please read this document carefully before installing and operating the product.
Not following the guidelines could result in personal injury and/or damage to the equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-FLOW 1 C Series and is the answer not in the manual?

Questions and answers

Related Manuals for BRONKHORST ES-FLOW 1 C Series

Summary of Contents for BRONKHORST ES-FLOW 1 C Series

  • Page 1 Instruction Manual ES-FLOW™ 1xxC Ultrasonic Liquid Flow Meter/Controller Doc. no.: 9.17.153 rev. A Date: 24-06-2021 ATTENTION Please read this document carefully before installing and operating the product. Not following the guidelines could result in personal injury and/or damage to the equipment.
  • Page 2 Disclaimer This document has been reviewed and is believed to be accurate. Bronkhorst High-Tech B.V. does not assume liability for errors, inaccuracies or absence of information. The material in this document merely serves information and illustration purposes;...
  • Page 3 Re-conditioning of products primarily returned for warranty service that is partly or wholly judged non-warranty may be charged for. Bronkhorst High-Tech B.V. or affiliated company prepays outgoing freight charges when any part of the service is performed under warranty, unless otherwise agreed upon beforehand. However, if the product has been returned collect to our factory or service center, these costs are added to the repair invoice.
  • Page 4 Bronkhorst® Instruction Manual ES-FLOW™ 1xxC 9.17.153A...

  • Page 5: Table Of Contents

    Bronkhorst® Table of contents Introduction ......................7 Scope of this document .
  • Page 6 Bronkhorst® 6.1.7 Device identification ......................32 6.1.8...

  • Page 7: Introduction

    Bronkhorst High-Tech B.V. cannot be held liable for any damage and/or injury resulting from unintended, improper or unsafe use, or use with other media and/or under other process conditions than specified at ordering time.

  • Page 8: Product Overview

    Bronkhorst® Product overview Front Power & signal connector 2. Fieldbus connector 1 (optional) 3. Fieldbus connector 2 (optional) 4. Actuator output connector Fluid inlet Fluid outlet Rear & top Indication LEDs multifunctional switch Mounting holes Instruction Manual ES-FLOW™ 1xxC 9.17.153A...

  • Page 9: Documentation

    At some points it refers to documentation associated with important components or features. These references are listed in the table below. Documents listed here that are not included in the scope of delivery can be downloaded from · www.bronkhorst.com/downloads or provided digitally on request. Type Document name Document no.

  • Page 10: Safety Instructions

    Unauthorized modifications can undo safety features, compromise system specifications (such as ingress protection rating) and cause failure to comply with applicable laws, regulations and directives. If the product is defective or otherwise does not meet your requirements, please contact your Bronkhorst representative for assistance or advice.
  • Page 11 Bronkhorst does the utmost to ensure that you receive a clean product. This does not, however, relieve the end user of the responsibility to ensure that the instrument and the system in which it is incorporated meet the requirements implied by the intended use of the instrument.

  • Page 12: Product Specifications

    If you have a question about the product or if you find the product does not meet the specifications agreed upon, do not hesitate to contact your Bronkhorst representative. To enable us to help you quickly and effectively, make sure to have the serial number (SN) ready whenever seeking contact with your Bronkhorst representative about a specific item.

  • Page 13: Model Key

    Bronkhorst® Model key The model key on the serial number label contains information about the technical properties of the product as ordered. The actual properties of your instrument can be retrieved from the diagram below. 9.17.153A Instruction Manual ES-FLOW™ 1xxC...

  • Page 14: Installation

    Bronkhorst® Installation Mounting For stable fixation to a rigid and stable surface or construction, use the threaded mounting holes in the rear of the instrument housing (see product overview). Consult the dimensional drawing for the exact size and locations. 4.1.1 Location Gas bubbles in the liquid can lead to measuring errors.

  • Page 15: Electrical Connections

    The equipment carries the CE-mark and is compliant with the concerning EMC requirements. However, EMC requirements can only be met using appropriate cables and connector/gland assemblies. Bronkhorst recommends the use of their standard cables. These cables have the right connectors and loose ends (if any) are marked to help prevent wrong connection.

  • Page 16: Operation

    First use Bronkhorst does the utmost to ensure that you receive a clean product. This does not, however, relieve the end user of the responsibility to ensure that the instrument and the system in which it is incorporated meet the requirements implied by the intended use of the instrument.

  • Page 17: Default Valve State

    Bronkhorst® 5.4.2 Default valve state When the instrument is not powered or cannot communicate with the fieldbus network (if applicable), the control valve automatically returns to its default state, which is closed for 'normally closed' valves (n/c) and fully open for 'normally open' valves (n/o).

  • Page 18: Control Mode - Readout/Change

    Bronkhorst® 5.5.1.2 Control mode - readout/change Reading control mode · By briefly pressing the switch 2 times with intervals of up to 1 second in normal operation mode, the instrument shows its current control mode with a series of consecutive LED indication patterns.

  • Page 19: Network Settings - Readout/Change

    Bronkhorst® 5.5.1.3 Network settings - readout/change Reading network settings · By briefly pressing the switch 3 times with intervals of up to 1 second in normal operation mode, the instrument shows its current node address and baud rate with a series of consecutive LED indication patterns:...

  • Page 20: Disabling Multifunctional Switch

    Adjusting zero point Zero-stability The zero point of a Bronkhorst® flow meter/controller (the measurement signal that indicates the absence of a flow) is factory adjusted with water, at approximately 20 °C and atmospheric pressure (ambient conditions), with the instrument positioned upright. Under normal circumstances, the zero point will remain stable. However, in rare cases (for example due to strong fluctuations in temperature and/or pressure), the instrument might develop a zero-stability error over time, causing it to detect a flow when actually there is none.

  • Page 21: Manual Procedure

    Bronkhorst® Prerequisites Zeroing an instrument requires that: · the ambient conditions (temperature, pressure) match those of the operating environment of the instrument · the instrument is filled homogeneously and pressurized with the operational media, according to the typical process conditions ·...

  • Page 22: Digital Procedure On Profibus Dp

    Bronkhorst® 5.6.3 Digital procedure on PROFIBUS DP For instruments with a PROFIBUS DP interface, the procedure to be followed differs slightly: To adjust the zero point through bus communication in a PROFIBUS DP system, set (write) parameter values in the following...

  • Page 23: Digital Communication

    Bronkhorst® Digital communication RS-232 communication Digital Bronkhorst® instruments can be monitored and operated via RS-232 using the free FlowWare software tools for Windows. These tools provide a graphical interface to the ProPar protocol, for monitoring and changing instrument parameters. The FlowWare toolkit provides functionality for monitoring and operating digital instruments (FlowPlot, FlowSuite), selection of the active fluid and fieldbus configuration (if applicable).

  • Page 24: Measurement And Control

    Due to limitations in, for example, memory capacity or communication properties, definition files for other fieldbus systems usually do not make all parameters available. For information about parameter access and availability for Bronkhorst® instruments in a specific fieldbus network, consult the according fieldbus manual.

  • Page 25: Secondary Outputs

    This parameter returns the internal temperature in the instrument housing in °C. 6.1.2 Alarms Alarm settings are most easily accessible using FlowSuite, FlowPlot or FlowView or a Bronkhorst® readout and control unit. The built-in alarm functionality can be used to handle different alarm types: ·...
  • Page 26 Bronkhorst® Alarm Mode Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…3 97/3 0x0C23/3108 Available modes: Value Description Alarm off Alarm on absolute limits Alarm on limits related to setpoint (response alarm) Alarm at power-up(e.g. after power-down) (On DeviceNet™ instruments, only modes 0 and 1 are available)

  • Page 27: Counter

    Multifunctional switch Externally (deprecated) By parameter Reset Automatically (when alarm conditions no longer apply) 6.1.3 Counter Counter settings are most easily accessible using FlowSuite, FlowPlot or FlowView or a Bronkhorst® readout and control unit. Counter Mode Type Access Range FlowDDE...
  • Page 28 Bronkhorst® Counter Unit supports the following values: Mass Normal volume Standard volume Custom volume (1.01325 bar(a), 0 °C) (1.01325 bar(a), 20 °C) (Capacity Unit Pressure, Capacity Unit Type Temperature) ug, mg, g, kg uln, mln, ln, uls, mls, ls, ul, ml, l,...

  • Page 29: Network Configuration

    Bronkhorst® 6.1.4 Network configuration Changes made to the network settings will not be restored by a factory reset. Default configuration Network configuration is done ex factory as indicated on the serial number label or in the technical specifications. The table...

  • Page 30: Controller

    Controller The picture below shows a basic diagram of the PID controller algorithm (proportional, integral, derivative) used by digital Bronkhorst® instruments. The controller speed controls the overall performance of the controller algorithm. Basically, to adjust the controller response, only the controller speed needs to be changed.

  • Page 31: Master/Slave Configuration (Flow-Bus)

    Bronkhorst® PID-Kp Type Access Range FlowDDE FLOW-BUS Modbus Float 0…1E+10 114/21 0xF2A8…0xF2A9/62121…62122 PID controller proportional action, multiplication factor. PID-Ti Type Access Range FlowDDE FLOW-BUS Modbus Float 0…1E+10 114/22 0xF2B0…0xF2B1/62129…62130 PID controller integral action in seconds. PID-Td Type Access Range FlowDDE...

  • Page 32: Device Identification

    FLOW-BUS Modbus Unsigned char[20] 113/3 0xF118…0xF11F/ 61721…61728 Instrument serial number for identification. BHT Model Number Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[35] 113/2 0xF110…0xF117/ 61713…61720 This parameter shows the Bronkhorst® instrument model type information. Instruction Manual ES-FLOW™ 1xxC 9.17.153A...

  • Page 33: Special Parameters

    Identification Number Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…255 113/12 0x0E2C/3629 Bronkhorst® (digital) device type identification number. Device Type Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char[6] 113/1 0xF108…0xF10A/ 61705…61707 Device type information string; this parameter contains an abbreviation referring to the identification number.
  • Page 34 Bronkhorst® Wink Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char [27] 0…9* 0x0000/1 Sending any text string value between 1 and 9 to this parameter makes the indication LEDs (if present) blink for a couple of seconds. This can be useful in order to identify a specific device in a large fieldbus network.

  • Page 35: Default Control Mode

    Bronkhorst® 6.1.8.1 Default control mode IO Status Type Access Range FlowDDE FLOW-BUS Modbus Unsigned char 0…255 114/11 0x0E4B/3660 The instrument is set to accept a setpoint from either an analog or a digital source. Although this setting can be changed...

  • Page 36: Maintenance

    Inexpertly servicing instruments can lead to serious personal injury and/or damage to the instrument or the system it is used in. Servicing must therefore be performed by trained and qualified personnel. Contact your Bronkhorst representative for information about cleaning and calibration. Bronkhorst has a trained staff available.

  • Page 37: Troubleshooting And Service

    To track down problems in the fluid system, depressurize the fluid system and disconnect the suspected unit from the process line. Dirt or clogging might be quickly detected by visual inspection on disassembled fluid connections. If you suspect leakage, do not disassemble the device for inspection, but contact your Bronkhorst representative for service or repairs.
  • Page 38 Bronkhorst® Symptom Possible cause Corrective action Red LED lit continuously, no flow Hardware error Contact your Bronkhorst representative Measurement disturbed by Control behavior unstable If possible, avoid installation in close · · vibrations proximity of mechanical vibration · Red LED flickering ·...

  • Page 39: Service

    If you have questions about a product or if you find the product does not meet the specifications as ordered, do not hesitate to contact your Bronkhorst representative. To enable us to help you quickly and effectively, make sure to have the serial number ready whenever seeking contact with your Bronkhorst representative about a specific item.

  • Page 40: Returns

    All Bronkhorst® products covered by the WEEE directive (the majority) carry an image of a crossed-out waste bin (usually on the serial number label). If you wish to dispose of Bronkhorst® equipment bearing this...

  • Page 41: Parameter Index

    Bronkhorst® Parameters - Network configuration Parameter index Fieldbus1 Address Fieldbus1 Baud Rate Parameters Fieldbus1 Parity Parameters - Alarms Fieldbus2 Address Alarm Delay Time Fieldbus2 Baud Rate Alarm Info Fieldbus2 Parity Alarm Maximum Limit Parameters - Special Alarm Minimum Limit Control Mode...
