SKYDANCE T15 Installation

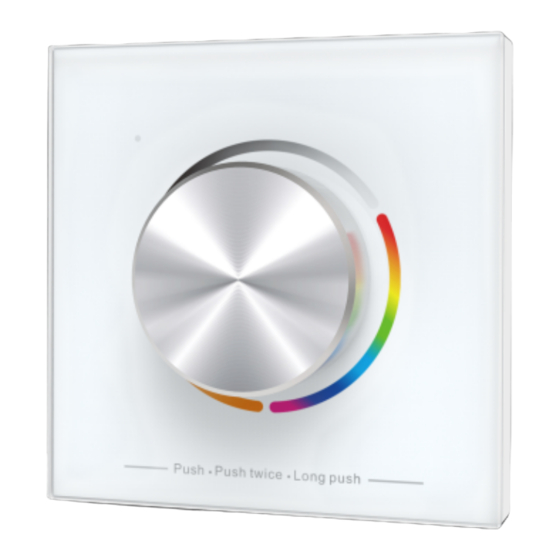

Wall Mounted Rotary Panel
RGB/CCT/DIM (3 in 1) LED
DMX512 Master & RF 2.4G Remote
Model: T15
Technical Parameters
Dimension
● : AC85~265V
Input voltage
● Output type : DMX+RF(2.4G)
● Light type: RGB/CCT/DIM
● Grey levels: 256/CH
● Dimming range: 0~100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● : L86×W86×H50mm
Product size
● Net weight: 130g
Knob fuction
● Push: Turn on or off light.
● After turn on light, the knob default operation as follow:
RGB light type: Rotate knob to change color, 3 turns, 60 colors.
CCT light type: Rotate knob to change color temperature, 2.5 turns, 50 levels.
DIM light type: Rotate knob to change brightness, 2.5 turns, 50 levels.
● Push twice: Rotate knob to adjust brightness, 1 turn, 20 levels.
● Long push : RGB light type, fine adjust saturation,
(1-5s)
CCT/DIM light type, fine adjust brightness.
Dip switch setting
● Dip switch 1-2 bit: set RGB/CCT/DIM light type.
ON ON ON ON
● Dip switch 3rd bit: set downside disable remoter,
1 2 1 2 1 2 3
DIM CCT RGB RF OUT OFF
Caution: before power on, you must confirm the selection of dip switch.
@ Guangzhou Skydance Co.,ltd All rights reserved. We reserve the right without notice to amend the technical information and specifications.
Summar y
● Rotary panel RGB/CCT/DIM DMX controller,
can also used as RGB/CCT/DIM RF remoter.
● Select RGB/CCT/DIM light type, whether as a
remoter through 3bit DIP switch.
● Output international standard DMX512/1990 signal,
can connect more than one DMX decoder.
● Rotate knob to change color, color temperature,
brightness, support push, push twice, long push
operation.
● Adopt 2.4GHz wireless technology, when used as
controller, can accept up to 10 remoter control.
when used as remoter, can remote control multiple
RGB/CCT/DIM controller.
● RGB light type, built in 30 change mode optional.
86mm
86mm
35mm
set upside("ON") enable remoter.
TM
Panel controller match remoter method
● Match: Turn on light, turn off, immediately push for 5s, within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately push for 10s, delete all matched remoters.
Panel remoter match receiver method
For controller with match key
● Match: Short press match key, within 5s, push the panel.
● Delete: Long press match key for 5s, delete all matched remoters.
For smart lamp
● Match: Switch off the power, then switch on power again,
short push the panel 3 times within 5s after power on,
the link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again,
short push the panel 5 times within 5s after power on,
the unlink is done once the light blinks 5 times.

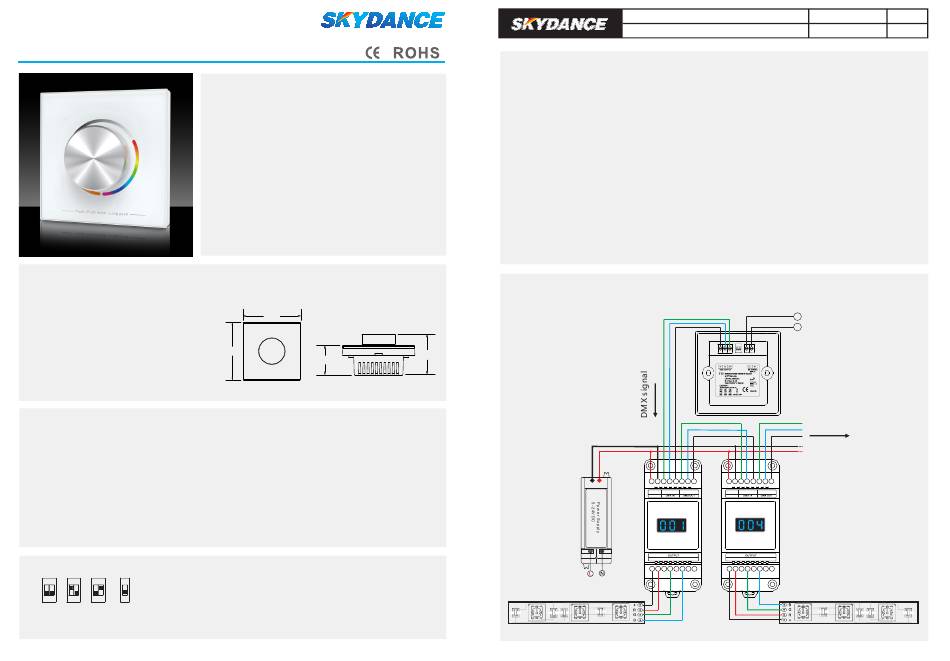

Wiring diagram
● Connect with DMX-PWM four channel decoder
50mm
AC110-230V
RGB LED strip
@ Guangzhou Skydance Co.,ltd All rights reserved. We reserve the right without notice to amend the technical information and specifications.
Rotary Panel DMX Master & RF Remote
TM
Technical datasheet
ON
1 2 3
● RGB light type: each pixel 3 channel,
V+ V- DI+ DI- GND DO+ DO- GND V+ V- DI+ DI- GND DO+ DO- GND
POWER POWER
DMX decoder
DMX decoder
● CCT light type:
● DIM light type:
V+ CH1 V+ CH2 V+ CH3 V+ CH4 V+ CH1 V+ CH2 V+ CH3 V+ CH4
T15 Page 2
www.iskydance.com
V 1.1
Power input
L
AC85-265V
N
DMX signal
Order is red, green, blue, namely
pixel 1 is channel 1 ~ 3,
pixel 2 is channel 4 ~ 6 ,
pixel 3 is channel 7 ~ 9 , ...
odd channel(1,3,5,...) is WW,
even channel(2,4,6,...)is NW.
all channel synchronous dimming.
RGB LED strip
