SKYDANCE T1 Quick Start Manual

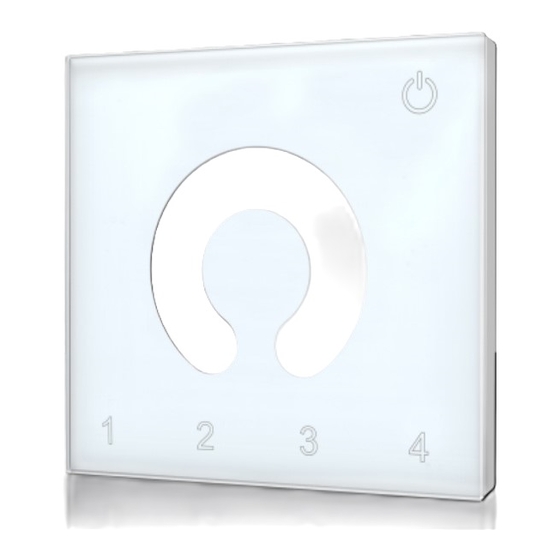

Wall Mounted Touch Panel
Single Color LED
Constant Voltage Controller & RF 2.4G Remote
Summar y
T1
Technical Parameters
● Input voltage 5 24VDC : -
● Output type : PWM constant voltage+RF(2.4G)
● Output current : 4CH,3A/CH
● Output power : 60-288W
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : L86×W86×H36.5mm
● Net weight: 152g
Key function
On/Off
Color wheel
1
4 Scene / Zone
● Touch panel DIM PWM constant voltage controller,
can also used as DIM remoter.
● Select 4 Zone or 4 Scene, whether as a remoter
through 2bit DIP switch.
● Ultra sensitive high strength glass touch panel
with touch color wheel in the middle and backlighting.
● 256 level dimming, smooth dimming without any flicking.
● Adopt 2.4GHz wireless technology, when used as
controller, can accept up to 10 remoter control.
when used as remoter, can remote control multiple
dimming controller.
● Can work with WiFi-relay controller after install APP
on IOS and Android system.
● Work with power repeater to expand output unlimitedly.
Dimension
86mm
86mm
On/Off:
Single zone Turn on/off light. :
4 Zone : Short press turn on/off current zone light
long press 2s turn off all zone light .
B rightness wheel : Touch to adjust brightness.
1, 2, 3, 4 Scene / Zone :
Used as a 4 scene Short press run the scene long press 2s save. : ,
Used as a 4 Zone Short press select and turn on zone light, :
long press 2s turn off zone light.
Continuous short press multiple zone key,
can synchronous select multiple zones.
Dip switch setting
Caution: before power on, you must confirm the selection of dip switch.
Panel controller match remoter method
● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s,
delete all matched remoters.
Panel remoter match receiver method
For controller with match key
● Match: Short press match key, within 5s, press on/off or zone key of the panel.
● Delete: Long press match key for 5s, delete all matched remoters.
For smart lamp
● Match: Switch off the power, then switch on power again,
short press on/off or zone key 3 times of the panel within 5s after power on,
the link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again,
short press on/off or zone key 5 times of the panel within 5s after power on,
the unlink is done once the light blinks 5 times.

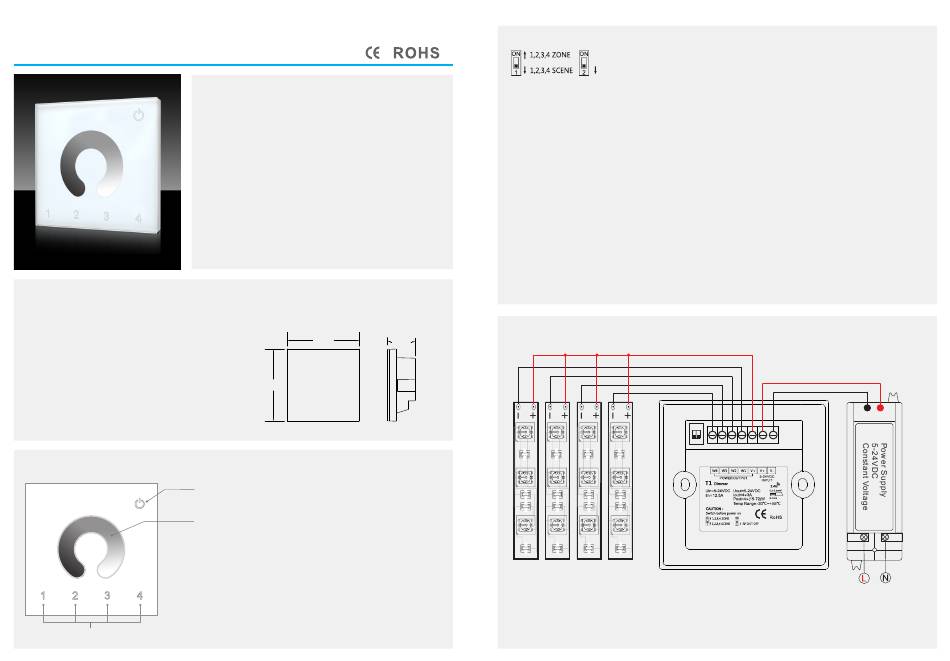

Wiring diagram
36.5mm
,
Single color LED strip x 4
LED power supply voltage and power select :
● 5V lamp, Input 5V power supply, can load 0~60W,
● 12V lamp, Input 12V power supply, can load 0~144W,
● 24V lamp, Input 24V power supply, can load 0~288W,
The power supply power must larger than load power 20%.
● Dip switch 1st bit: set downside is 4 scene,
set upside("ON") is 4 zone.
● Dip switch 2nd bit: set downside disable remoter,
RF OUT OFF
set upside("ON") enable remoter.
ON
1 2
AC110-230V
