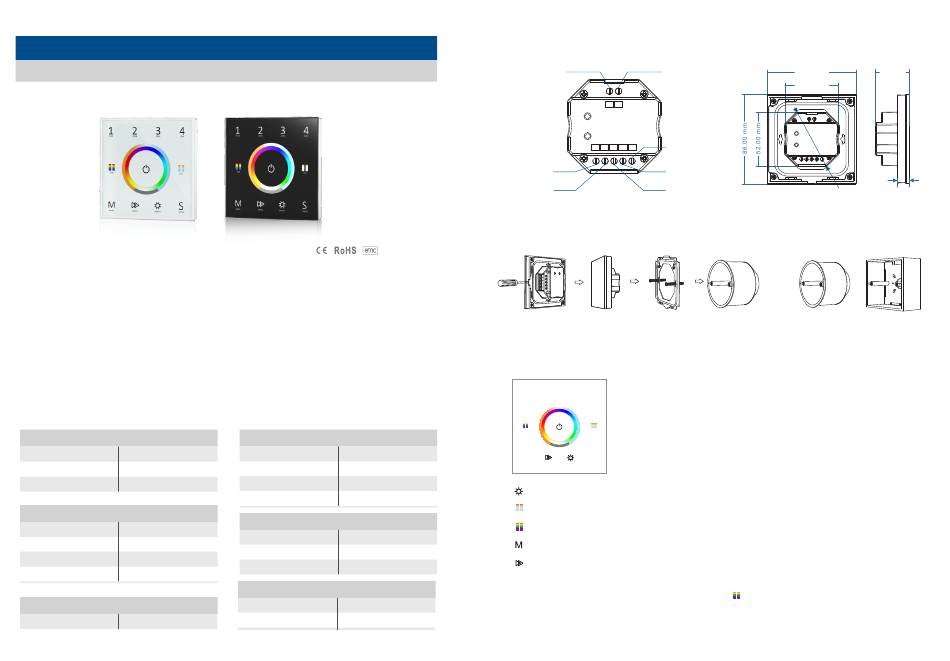

SKYDANCE T15 Manual

Wall Mounted Touch Panel
Model No.: T15
4 Zone/1-5 color in one/Glass touch panel/Color wheel/AC input/DMX 512 and RF 2.4G signal output

Features

● Touch panel 4 zone 1-5 color universal DMX512 master, can also be used as 4 zone 1-5 color universal RF remote.
● Each zone can be set as single color, dual color(WW/CW), RGB, RGBW or RGB+CCT light type.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● When used as RF remote, each zone can remote control multiple RF 2.4G LED controllers.

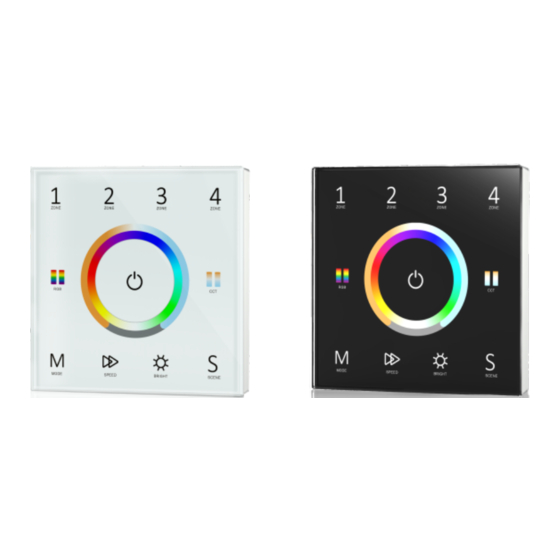

● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color wheel.
● Touch keys with LED indicator.
● White & Black glass panel available.

Technical Parameters

Input and Output

Input voltage
100-240VAC
Input current
Max 0.1A
Output signal
DMX512, RF 2.4GHz

Safety and EMC

EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
Certification CE,EMC,LVD,RED

Warranty

5 years
Warranty
User Manual Ver 2.0.2
LVD RED
Dimming data
Input signal
Touch key + RF 2.4GHz
( )
RF Control distance 10m Barrier-free space
Dimming level
256 levels
Dimming range 0 - 100%
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +65 O C
IP rating
IP20
Weight
0 . 181k g
Net weight
Gross weight 0 . 234k g

Mechanical Structures and Installations

AC input N AC input L
N L
INPUT 100-240VAC
DMX OUTPUT
DMX output +
D- D+ GND D- D+
DMX output -
DMX output -
DMX output + DMX signal GND
Installation diagram:
Touch panel Baseplate
Uninstall

Key function

Zone light type setting

1 2 3 4
ZONE ZONE ZONE ZONE
Each zone can match single color, dual color(WW/CW), RGB, RGBW,
or RGB+CCT(WW/CW) controller or lamp.
Touch power key to turn on light, turn off light,
RGB
CCT
then immediately long press power key 5 seconds, enter zone light setting:
M S
long press Zone 1/2/3/4 key 2 seconds, select current zone you want to change,
MODE SPEED BRIGHT SCENE
then long press below five key 2 seconds to change current zone light type.
: Long press 2 seconds, set current zone as single color type.
BRIGHT
: Long press 2 seconds, set current zone as dual color type.
CCT
: Long press 2 seconds, set current zone as RGB color type.
RGB
: Long press 2 seconds, set current zone as RGBW type.
MODE
: Long press 2 seconds, set current zone as RGB+CCT type.
SPEED
For example, If you want to change zone 1 light type as RGB type,
please long press Zone 1 key 2 seconds firstly, then long press
When in zone light type setting state, all above long press key operation, the LED indicator will lighten red and blue.
Short press power key or touch color wheel, or timeout 10s, quit zone light type setting.
T15 Wall Mounted Touch Panel
33.00 mm
86.00 mm
52.00 mm
59.00 mm 11.50 mm
Typical base as below:
European style
Base 86 size
2 seconds will set Zone 1 as RGB type.
RGB
