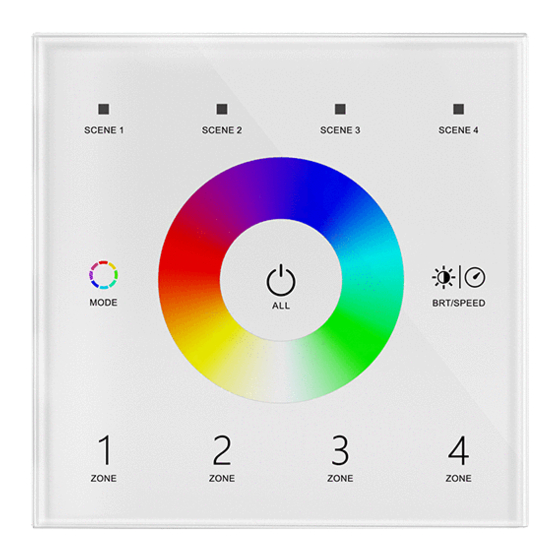

SKYDANCE T13 Instructions

Wall Mounted Touch Panel
RGB/RGBW (2 in 1) LED
DMX512 Master & RF 2.4G Remote
Summar y
● Touch panel RGB/RGBW DMX master, can also used as
● Select RGB or RGBW light type, single zone or 4 zone,
● Output international standard DMX512/1990 signal,
● Ultra sensitive high strength glass touch panel with touch
● Smooth and accurate color adjustment by touching the
● Independent brightness adjustment of each RGBW channel
● Built in 30 change mode optional, adjustable speed and
● Adopt 2.4GHz wireless technology, when used as controller,
● Support single zone independent adjustment,
Model: T13

Technical Parameters

Dimension
● : AC85~265V
Input voltage
● : DMX+RF(2.4G)
Output type
● Light type: RGB/RGBW
● Grey levels: 256/CH
● Remote distance: 30m
● Working temperature: -30℃~55℃
● : L86×W86×H36.5mm
Product size
● Net weight: 169g

Key function

On/Off : For Single zone turn on/off light.
For 4 Zone: Short press turn on/off current zone light long press 2s turn off all zone light
Color wheel: Touch to change color.
4 Zone/Scene
Mode : Short press run next mode, long press 2s run mode-cycle
: Static color, adjust bright, short press 10 levels,
Bright/Speed
Color
1 2 3 4
long press 1-5s continuous 256 levels adjustment.
wheel
Dynamic mode, adjust speed,short press 10 levels, long press s the fastest speed.
On/Off
R，G，B: Individual adjustment of R/G/B brightness, short press turn on/off,
Mode
M Bright
long press 1-5s continuous 256 levels adjustment.
/Speed
W For RGB light : , short press gets white (RGB mix),
long press 1-5s continuous 256 levels adjust saturation.
R G B W
For RGBW light
long press 1-5s continuous 256 levels adjust
Red Green Blue
White
1，2，3，4 Zone / Scene:
When used as 4 zone: Short press select and turn on zone light, long press 2s turn off zone light.
When used as 4 scene: Short press run the scene, long press 2s save.

Dip switch setting

● Dip switch 1st bit: set downside is RGB type,
ON
ON ON
RGBW 1,2,3,4 ZONE ● Dip switch 2nd bit: set downside is single zone(4 scene),
RGB 1,2,3,4 SCENE RF OUT OFF
1 2 3
● Dip switch 3rd bit: set downside disable remoter,
Caution: before power on, you must confirm the selection of dip switch.
@ Guangzhou Skydance Co.,ltd All rights reserved. We reserve the right without notice to amend the technical information and specifications.
RGB/RGBW remoter.
whether as a remoter through 3bit DIP switch.
can connect more than one DMX decoder.
color wheel in the middle and backlighting.
color wheel.
to achieve millions of colors.
brightness.
can accept up to 10 remoter control. when used as remoter,
can remote control multiple RGB/RGBW controller.
multiple zone synchronous adjustment.
86mm
36.5mm
86mm
:
,
.
2
, short press turn on/off W channel,
W channel brightness .
Continuous short press multiple zone key, can synchronous
set upside("ON") is RGBW type.
set upside("ON") is 4 zone.
set upside("ON") enable remoter.
TM

Panel controller match remoter method

● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s,
delete all matched remoters.

Panel remoter match receiver method

For controller with match key

● Match: Short press match key, within 5s, press on/off or zone key of the panel.
● Delete: Long press match key for 5s, delete all matched remoters.

For smart lamp

● Match: Switch off the power, then switch on power again,
short press on/off or zone key 3 times of the panel within 5s after power on,
the link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again,
short press on/off or zone key 5 times of the panel within 5s after power on,
the unlink is done once the light blinks 5 times.

Wiring diagram

.
select multiple zone.
RGBW LED strip
@ Guangzhou Skydance Co.,ltd All rights reserved. We reserve the right without notice to amend the technical information and specifications.
Touch Panel RGB/RGBW DMX Master & RF Remote
TM
Technical datasheet
ON
1 2
L N
AC110-230V
W
T13 Page 2
www.iskydance.com V 1.1
Power input
L
AC85-265V
N
3
DMX signal
● RGB light type, each zone 3 channel,
Order is red, green, blue, namely
zone 1 is channel 1 ~ 3,
zone 2 is channel 4 ~ 6 ,
zone 3 is channel 7 ~ 9 ,
zone 4 is channel 10 ~ 12.
● RGBW light type, each zone 4 channel,
Order is red, green, blue, white, namely
zone 1 is channel 1 ~ 4,
zone 2 is channel 5 ~ 8,
zone 3 is channel 9 ~ 12,
zone 4 is channel 13 ~ 16.
RGBW LED strip
W
