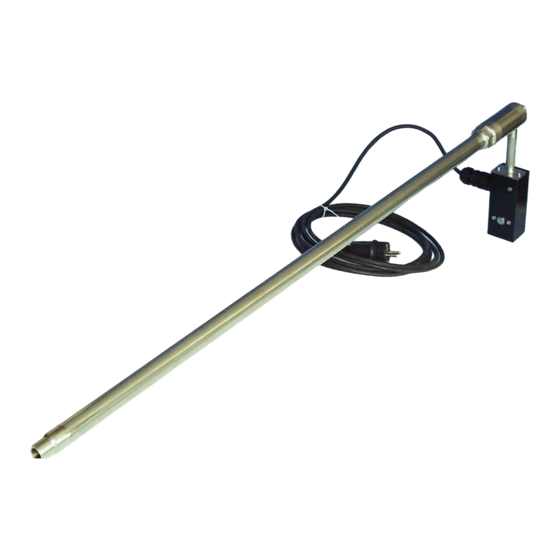

M&C SP Series Instruction Manual
Electrically heated sample probe tube
Hide thumbs
Also See for SP Series:
- Instruction manual (59 pages) ,
- Instruction manual (34 pages) ,
- Instruction manual (41 pages)
Related Manuals for M&C SP Series
Summary of Contents for M&C SP Series

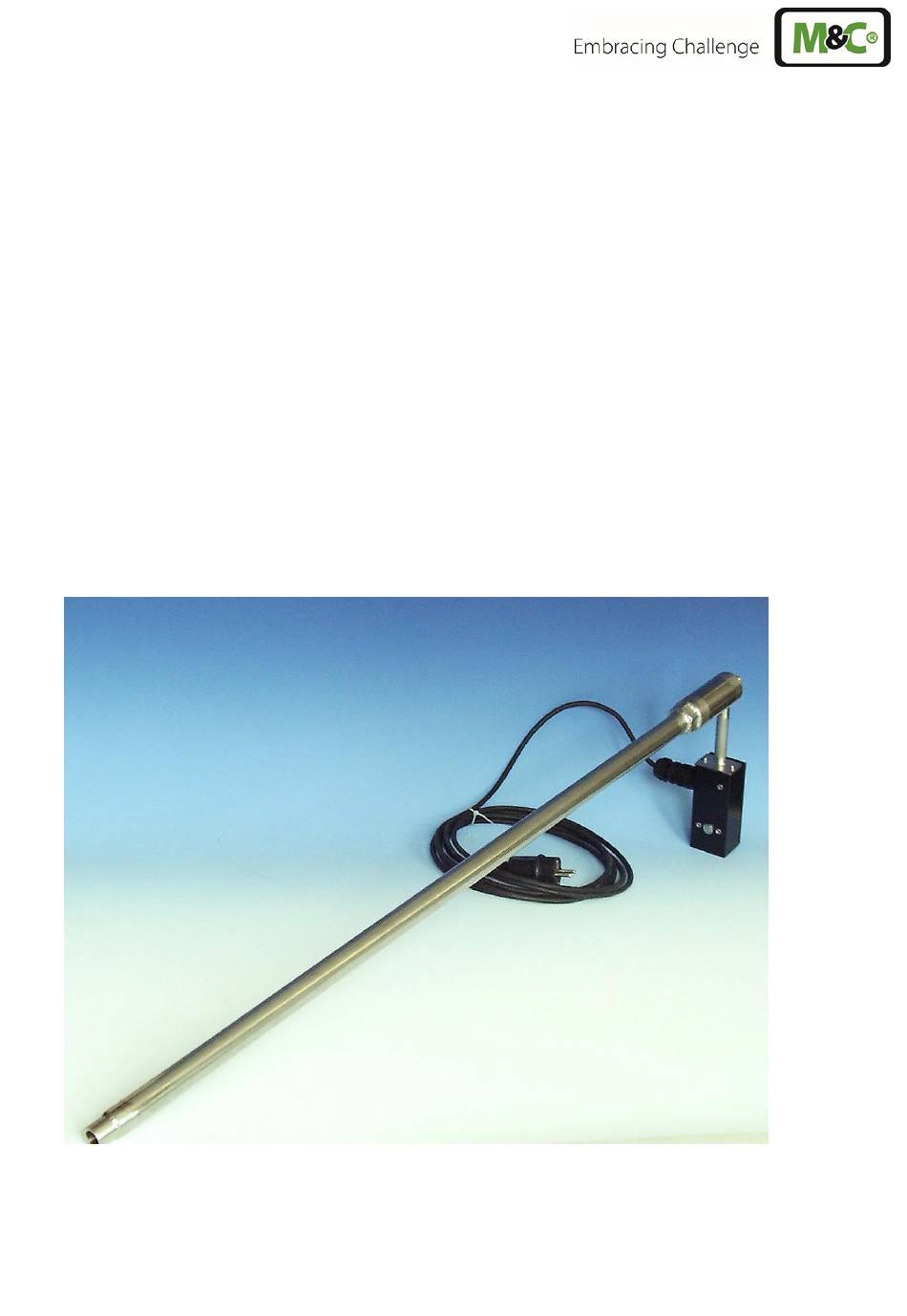

- Page 1 Electrically Heated Sample Probe Tube ® Series SP SP 34-H, SP34-H1.1 and SP34-H2 Instruction Manual Version 1.00.01...
- Page 2 Dear customer, we have made up this operating manual in such a way that all necessary information about the product can be found and understood quickly and easily. Should you still have any question, please do not hesitate to contact M&C directly or go through your appointed dealer.
-
Page 3: Table Of Contents
Content General information ........................ 4 Declaration of conformity ....................... 4 Safety instructions ........................5 Warranty ........................... 5 Used terms and signal indications ..................6 Application ..........................7 Description ..........................7 Temperature controller ......................7 Technical Data ......................... 8 Mounting ..........................8 Electrical connections ...................... -
Page 4: General Information
Head Office M&C TechGroup Germany GmbH Rehhecke 79 40885 Ratingen Germany Telephone: 02102 / 935 - 0 Fax: 02102 / 935 - 111 E - mail: info@mc-techgroup.com www.mc-techgroup.com GENERAL INFORMATION The product described in this operating manual has been examined before delivery and left our works in perfect condition related to safety regulations. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Please note the following basic safety procedures when using this equipment: Read these operating instructions carefully before start-up and use of the equipment! The information and warnings given in these operating instructions must be heeded. Work on electrical equipment is only to be carried out by trained specialists as per the regulations currently in force. -
Page 6: Used Terms And Signal Indications
USED TERMS AND SIGNAL INDICATIONS This means that death, severe physical injuries and/or important material damages will occur in case the respective safety measures are not fulfilled. D AN G E R ! This means that death, severe physical injuries and/or important material damages may occur in case the respective safety measures are not fulfilled. -
Page 7: Application
APPLICATION The electrically heated M&C sample probe tube SP34-H is used in extracting portable sampling systems to avoid cooling and condensation of sample in the insitu tube from the sample point to the heated sample probe PSP4000-H. DESCRIPTION The standard length of electrically heated M&C sample tube SP34-H is 1000 mm (other length on request). -
Page 8: Technical Data
TECHNICAL DATA SP 34-H SP 34-H1.1 SP 34-H2 Part No. 40S9115 40S9120 40S9125 Temperature sensor Capillary sensor Fe-CuNi PT100 Temperature controller Thermostate optional, external Tube length 1 m standard Connections INLET G3/8" inside thread, OUTLET G3/8" outside thread, DIN ISO 228/T Material Stainless steel SS316Ti Operating temperature... -
Page 9: Starting
Figure 2 Electrical connection SP34-H Temperature sensor Figure 3 Pin assignment for electrical connection of SP34-H2 and SP34-H1.1 STARTING Prior to starting the device, the system and process-specific safety measures must be observed. For the media to be supplied, the relevant safety requirements and measures must be taken into account. Before starting up check whether the mains power supply voltage corresponds with the information stated on the nameplate. -
Page 10: Maintenance
MAINTENANCE Maintenance of the heated sample tube is limited to the cleaning of the surfaces. The safety instructions specific to the plant and process are to be consulted prior to any maintenance work! W A R N I N G ! When working during operation: High surface temperatures! W A R N I N G !
