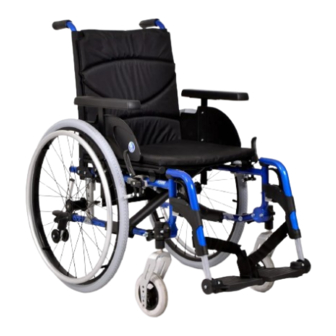

V-series wheelchairs
Fauteuils roulants série V
Rolstoelen V-serie
Rollstühle der V-Serie
Carrozine serie V
Sillas de rueda serie V
Wózki inwalidzkie serii V
Invalidní vozíky řady V
Installation manual
M A N U E L
D ' I N S T A L L A T I O N
I N S T A L L A T I E H A N D L E I D I N G
I N S T A L L A T I O N S A N L E I T U N G
M A N U A L E
D I
I N S T A L L A Z I O N E
M A N U A L
D E
I N S T A L A C I Ó N
I N S T R U K C J A
P Ř Í R U Č K U
P R O
I N S T A L A C J I
I N S T A L A C I
Advertisement
Table of Contents
Related Manuals for Vermeiren V Series
Summary of Contents for Vermeiren V Series
- Page 1 Installation manual M A N U E L D ' I N S T A L L A T I O N I N S T A L L A T I E H A N D L E I D I N G I N S T A L L A T I O N S A N L E I T U N G M A N U A L E I N S T A L L A Z I O N E...
-
Page 3: Table Of Contents
V-series wheelchairs 2023-02 Contents Contents Contents ........................1 Preface........................2 Scope of delivery ..................3 Tools ......................3 Adjustments ....................4 Stability and manoeuvrability ................4 Rear-wheel position ..................5 Seat height and angle ..................5 3.3.1 Adjustment settings ................5 3.3.2 Adjusting rear and front wheel height ............. -
Page 4: Preface
To support you on the installation and repairs of this wheelchair, this manual is offered. Please read it carefully. If you still have questions after reading this manual, do not hesitate to contact Vermeiren. The information in this manual applies to all wheelchairs in the following list: •... -
Page 5: Scope Of Delivery
V-series wheelchairs 2023-02 Scope of delivery Scope of delivery The following items are part of the delivery. • Frame including wheels, backrest frame, seat (default seat height 500 mm, default seat angle 5°) • 2 Armrests (not for V300XR and V500 Active) •... -
Page 6: Adjustments
• Make sure all screws are firmly secured before riding the wheelchair. Adhere to the tightening torques for screws according to the Torque table on our website. Important remark • For more information, contact Vermeiren. See the website http://www.vermeiren.com/. Stability and manoeuvrability Risk of tipping over CAUTION Be aware that by changing the position of the rear wheels, the stability of the wheelchair is influenced. -
Page 7: Rear-Wheel Position
The values in the tables are for the default seat angle of 5°. For other seat angle - seat height combinations, the same table can be used. If you don't find the right seat angle - seat height combination, please contact Vermeiren. The adjustment of seat height and seat angle is based on: •... - Page 8 V-series wheelchairs 2023-02 Adjustments Table 1: V300DC, V300XL, V300F, V300 DL At seat angle 5° (Default setting) Seat height Rear wheels Front wheels Hole Hole Bushing (B) 440 mm Above (C) 470 mm Under (C) 500 mm Under (C) (Default) 530 mm Under (C) Rear wheels...
- Page 9 V-series wheelchairs 2023-02 Adjustments Rear wheels Front wheels Seat height 440 mm Other seat height Table 3: V300, V500, V500XL, V500 Light, V500 Active At seat angle 5° (Default setting) Seat height Rear wheels Front wheels Hole Hole no. Ø Bushing (B) 150 mm Above (C)
-
Page 10: Adjusting Rear And Front Wheel Height
V-series wheelchairs 2023-02 Adjustments 3.3.2 Adjusting rear and front wheel height Adjust the rear wheel height as follows: 1. Remove the rear wheels (see instruction manual). 2. Demount the axle housings (E) of the rear wheels from the axle plate (D) and remount in the correct hole, see tables in §3.3.1. -
Page 11: Adjusting Swivel Axles
V-series wheelchairs 2023-02 Adjustments 3.3.3 Adjusting swivel axles Verify that the swivel axle (F) stands perpendicular to the ground. If not, adjust the swivel axle at toothed clamp (G) as follows: 1. Loosen the three socket screws (15). 2. Adjust the angle of the swivel axle until it is perpendicular to the ground. There are 5 positions available, each indicated by a small triangle. -
Page 12: Seat Depth Option 1
V-series wheelchairs 2023-02 Adjustments 3.4.1 Seat depth option 1 This type of wheelchair is only adjustable in 3 seat depths by adjusting the backrest connection (A). Seat depth Backrest position holes 490 mm (Default) V300XL 510 mm 530 mm 3.4.2 Seat depth option 2 This type of wheelchair is adjustable in 5 seat depths by adjusting the location of the frame cross (X) and backrest connection (B). -
Page 13: Seat Depth Option 4
V-series wheelchairs 2023-02 Adjustments Cross position Backrest Seat depth V300 holes position holes V300DC 460 mm Hole 1 and 3 V300F 440 mm (Default) Hole 2 and 4 V300ACT 500 mm Hole 1 and 3 V300XR 480 mm Hole 2 and 4 V300DL 520 mm Hole 1 and 3... -
Page 14: Adjustment Of Cross And Backrest Connection
V-series wheelchairs 2023-02 Adjustments Cross position Backrest position 3.4.5 Adjustment of cross and backrest connection The settings and item numbers can be found in following sections Cross position (if adjustable) 1. Remove clip (10), at each side of the wheelchair. 2. -
Page 15: Sport Brakes
V-series wheelchairs 2023-02 Adjustments V300 V500 V300 30° V300DC V300DL V500 Light V500 Light 30° V300XL V300F V300ACT V300XR 3.5.1 Sport brakes 1. Release the brake with lever (21), see instruction manual. 2. If not possible to adjust the brake properly using the slot (24), remove the socket screws (22) and nuts (25). -
Page 16: Stepless Adjustment
V-series wheelchairs 2023-02 Adjustments 3.6.1 Stepless adjustment Adjust the length as follows: 1. Remove the socket screw (26) at the back of the footrest. 2. Adjust the footrest to a comfortable length. 3. Retighten the socket screw firmly. 4. Repeat this for the second footrest. Make sure footrests positioned... -
Page 17: Footplate Angle
V-series wheelchairs 2023-02 Adjustments Footplate angle Adjust the angle of the footplate at its toothed clamp: 1. Loosen the socket screw (28) of the footrest (29). 5. Turn the footplate to the desired angle (80°- 100°). The dashes (30) on the toothed clamp indicate the angular positions. -
Page 18: Arm Pad Depth (Option 2)
V-series wheelchairs 2023-02 Adjustments 3.10 Arm pad depth (option 2) Adjust the depth of the arm pad as follow (range 120 mm: step less): 1. Loosen both socket screws (35) at the bottom of the arm pad. 2. Move the arm pad to the front or rear within the range of the slotted holes (42,5 mm). - Page 20 Vermeiren GROUP Vermeirenplein 1 / 15 2920 Kalmthout website: www.vermeiren.com Instructions for specialist dealer This instruction manual is part and parcel of the product and must accompany every product sold. Version: E, 2023-02 Basic UDI: 5415174 122106V300* 5415174 122106V500* All rights reserved, including translation.
